171

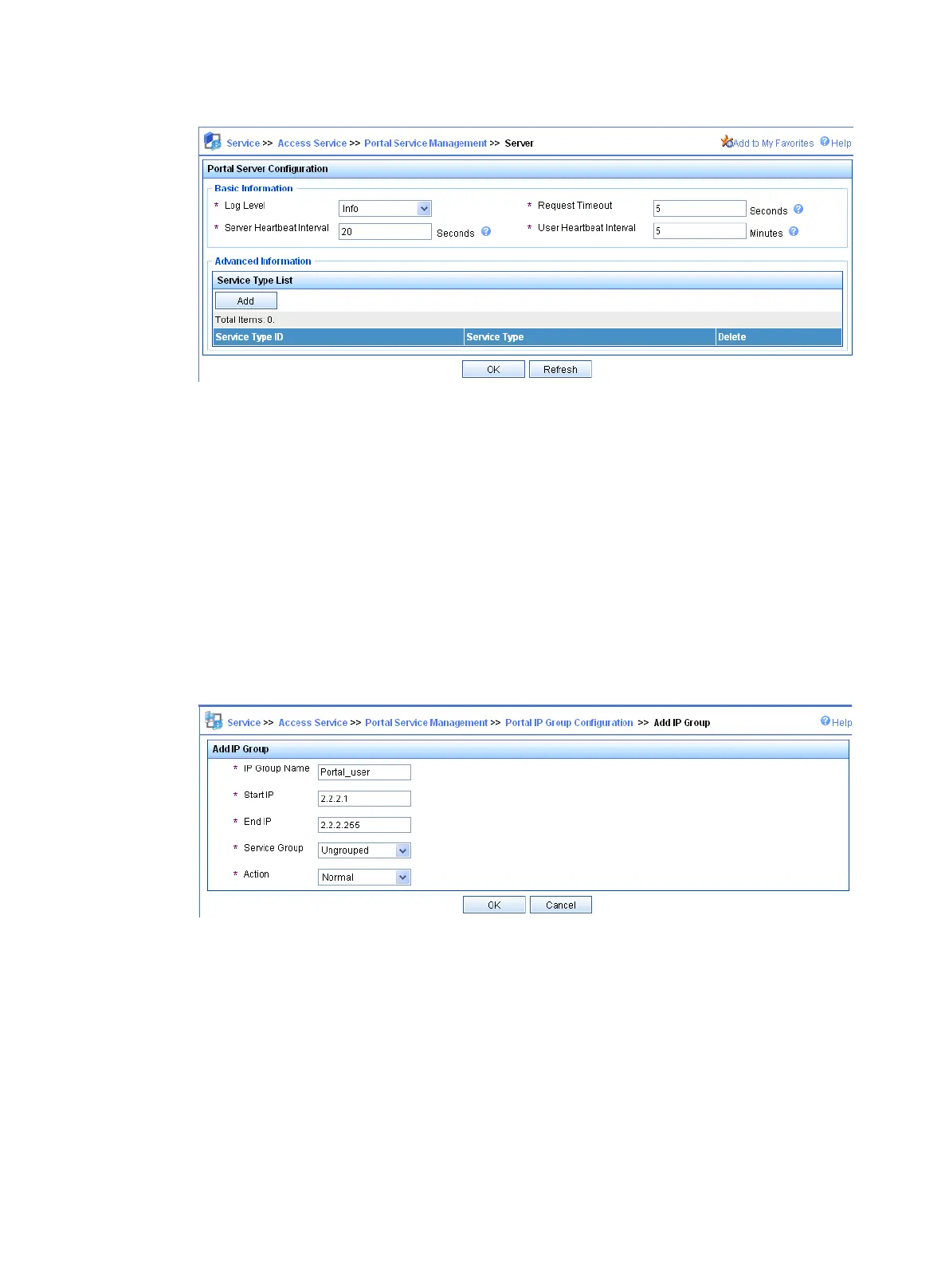

Figure 59 Portal authentication server configuration
2. Configure the IP address group:
a. Select Access Service > Portal Service Management > IP Group from the navigation
tree to enter the portal IP address group configuration page.
b. Click Add to enter the page shown in Figure 60.
c. Enter the IP group name.
d. Enter the start IP address and end IP address of the IP group.
Make sure the host IP address (2.2.2.2) is in the IP group.
e. Select a service group.
This example uses the default group Ungrouped.
f. Select Normal from the Action list.
g. Click OK.
Figure 60 Adding an IP address group
3. Add a portal device:
a. Select Access Service > Portal Service Management > Device from the navigation tree
to enter the portal device configuration page.
b. Click Add to enter the page shown in Figure 61.
c. Enter the device name NAS.
d. Enter the IP address of the switch's interface connected to the host.
e. Enter the key, which must be the same as that configured on the switch.
f. Set whether to enable IP address reallocation.
This example uses direct portal authentication, and therefore select No from the Reallocate
IP list.
