g. Set whether to support the portal server heartbeat and user heartbeat functions.
In this example, select Yes for both Support Server Heartbeat and Support User
Heartbeat.
h. Click OK.

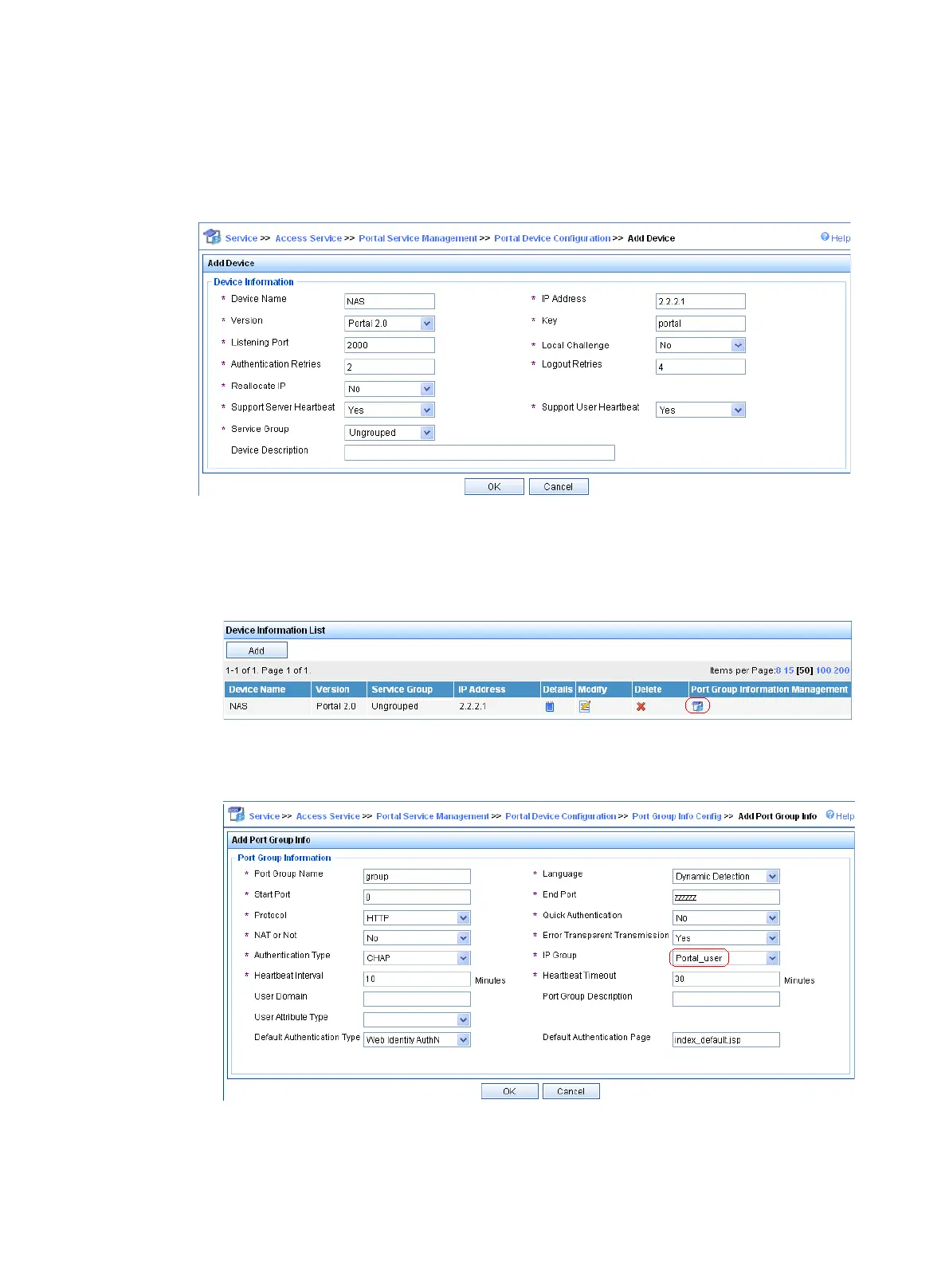

Figure 61 Adding a portal device
4. Associate the portal device with the IP address group:
a. As shown in Figure 62, click the icon in the Port Group Information Management column
of device NAS to enter the port group configuration page.
Figure 62 Device list
b. Click Add to enter the page shown in Figure 63.
Figure 63 Port group configuration
c. Enter the port group name.
d. Select the configured IP address group.
