173
The IP address used by the user to access the network must be within this IP address
group.
e. User default values for other parameters.
f. Click OK.
5. Select Access Service > Service Parameters > Validate System Configuration from the
navigation tree to validate the configurations.
Configuring the portal authentication server on IMC PLAT 5.0
This example assumes that the portal server runs on IMC PLAT 5.0(E0101) and IMC UAM
5.0(E0101).
1. Configure the portal authentication server:
a. Log in to IMC and click the Service tab.
b. Select User Access Manager > Portal Service Management > Server from the
navigation tree to enter the portal server configuration page, as shown in Figure 64.
c. Configure the portal server heartbeat interval and user heartbeat interval.
d. Use the default settings for other parameters.
e. Click OK.

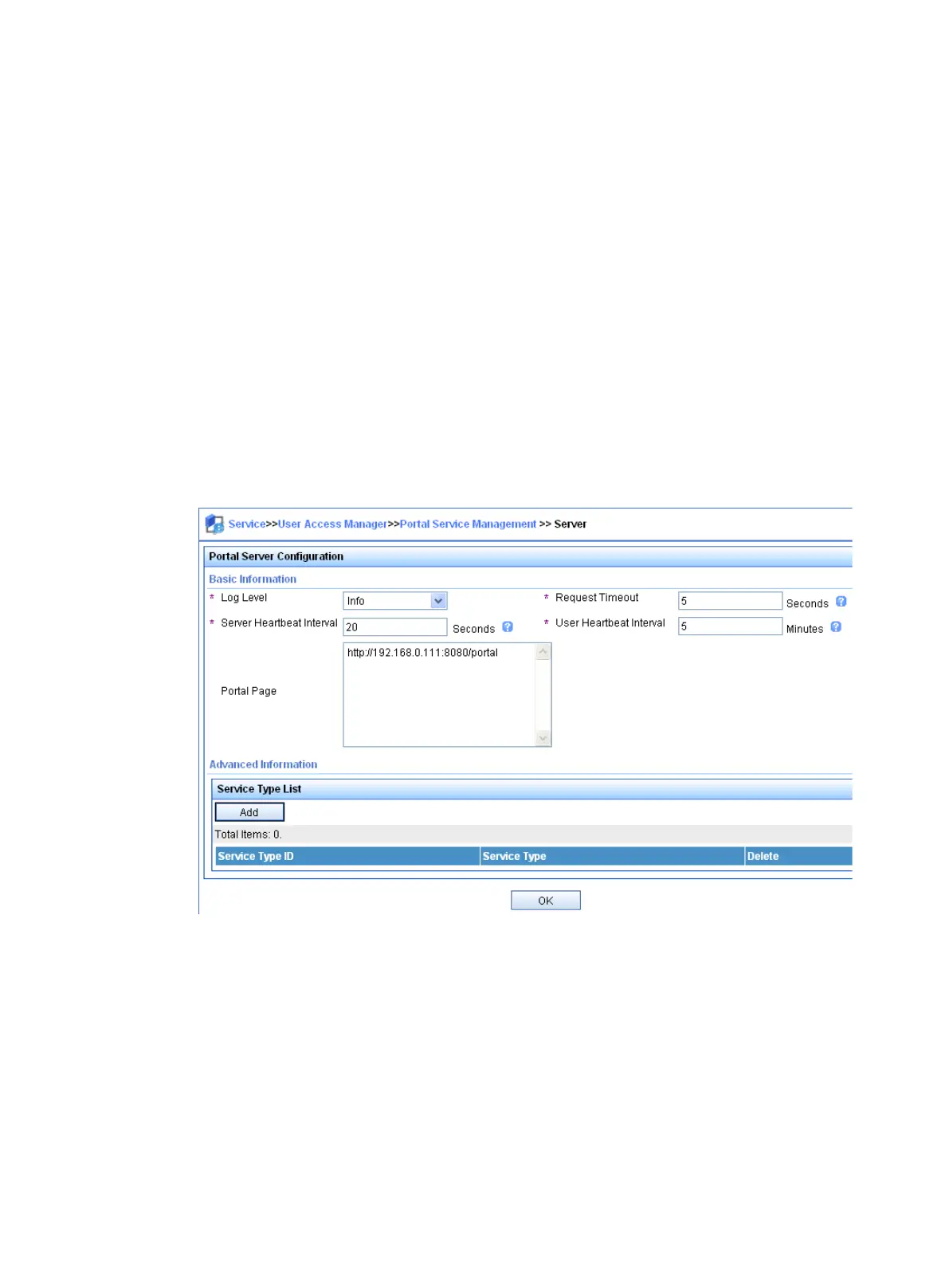

Figure 64 Portal authentication server configuration
2. Configure the IP address group:
a. Select User Access Manager > Portal Service Management > IP Group from the
navigation tree to enter the portal IP address group configuration page.
b. Click Add to enter the page shown in Figure 65.
c. Enter the IP group name.
d. Enter the start IP address and end IP address of the IP group.
Make sure the host IP address is in the IP group.
e. Select a service group.
This example uses the default group Ungrouped.
f. Select Normal from the Action list.
