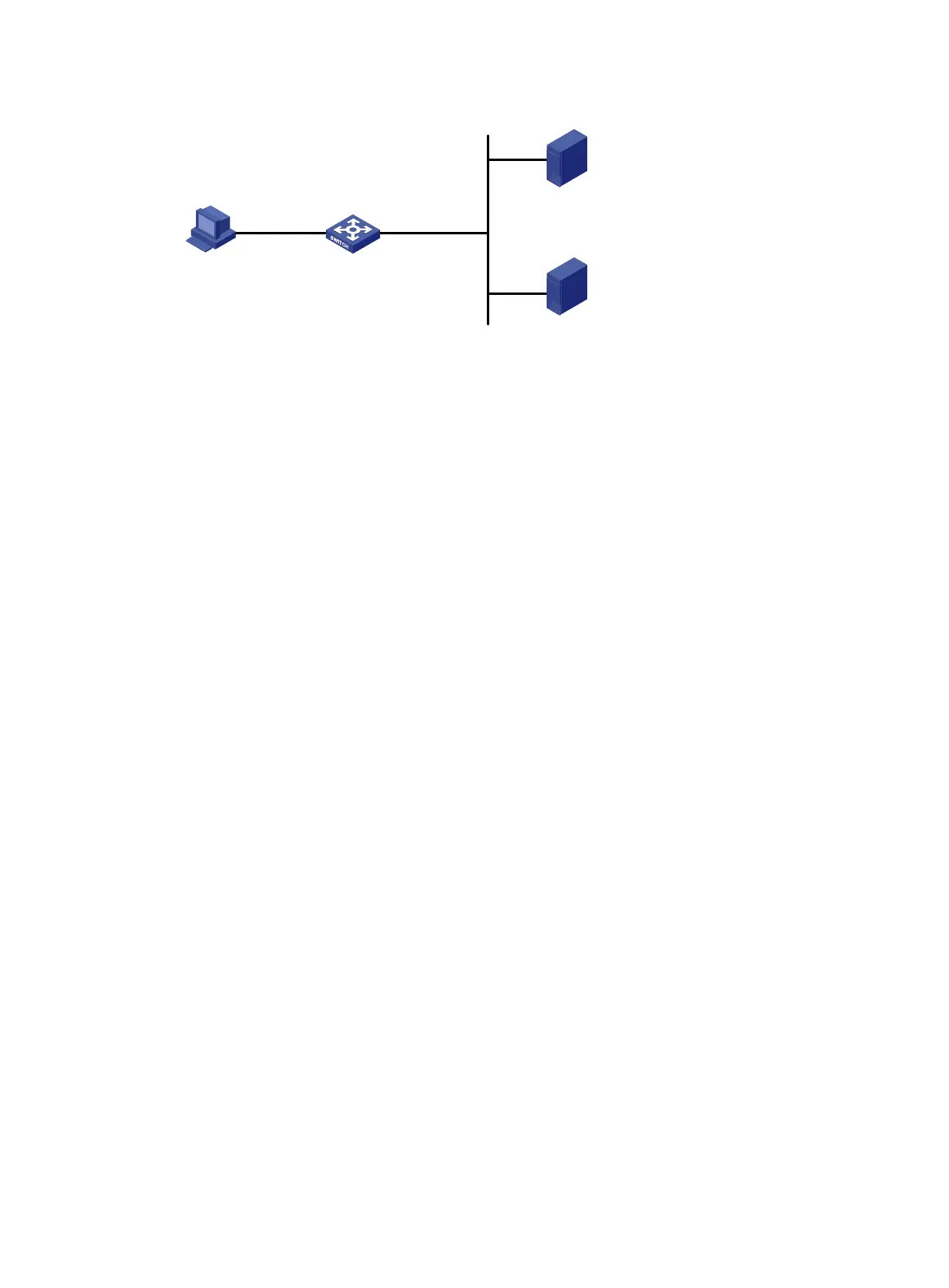

Figure 58 Network diagram
Configuration prerequisites and guidelines
• Configure IP addresses for the switch and servers as shown in Figure 58 and make sure the
host, switch, and servers can reach each other.
• Configure the RADIUS server properly to provide authentication and accounting functions.
• Configure the portal authentication server. Be sure to enable the server heartbeat function and
the user heartbeat function.
• Configure the switch (access device) as follows:
ï‚¡ Configure direct portal authentication on VLAN-interface 100, the interface to which the host
is connected.
ï‚¡ Configure portal authentication server detection, so that the switch can detect the
reachability of the portal authentication server by cooperating with the portal server
heartbeat function.
ï‚¡ Configure portal user synchronization, so that the switch can synchronize portal user
information with the portal authentication server by cooperating with the portal user
heartbeat function.
Configuring the portal authentication server on IMC PLAT 3.20
This example assumes that the portal server runs on IMC PLAT 3.20-R2602P13 and IMC UAM
3.60-E6301.
1. Configure the portal authentication server:
a. Log in to IMC and click the Service tab.
b. Select Access Service > Portal Service Management > Server from the navigation tree
to enter the portal server configuration page, as shown in Figure 59.
c. Configure the portal server heartbeat interval and user heartbeat interval.
d. Use the default settings for other parameters.
e. Click OK.
RADIUS server
Switch
Host
2.2.2.2/24
Gateway: 2.2.2.1/24
Vlan-int100
2.2.2.1/24
Vlan-int2
192.168.0.100/24
Portal server
192.168.0.111/24
192.168.0.112/24
