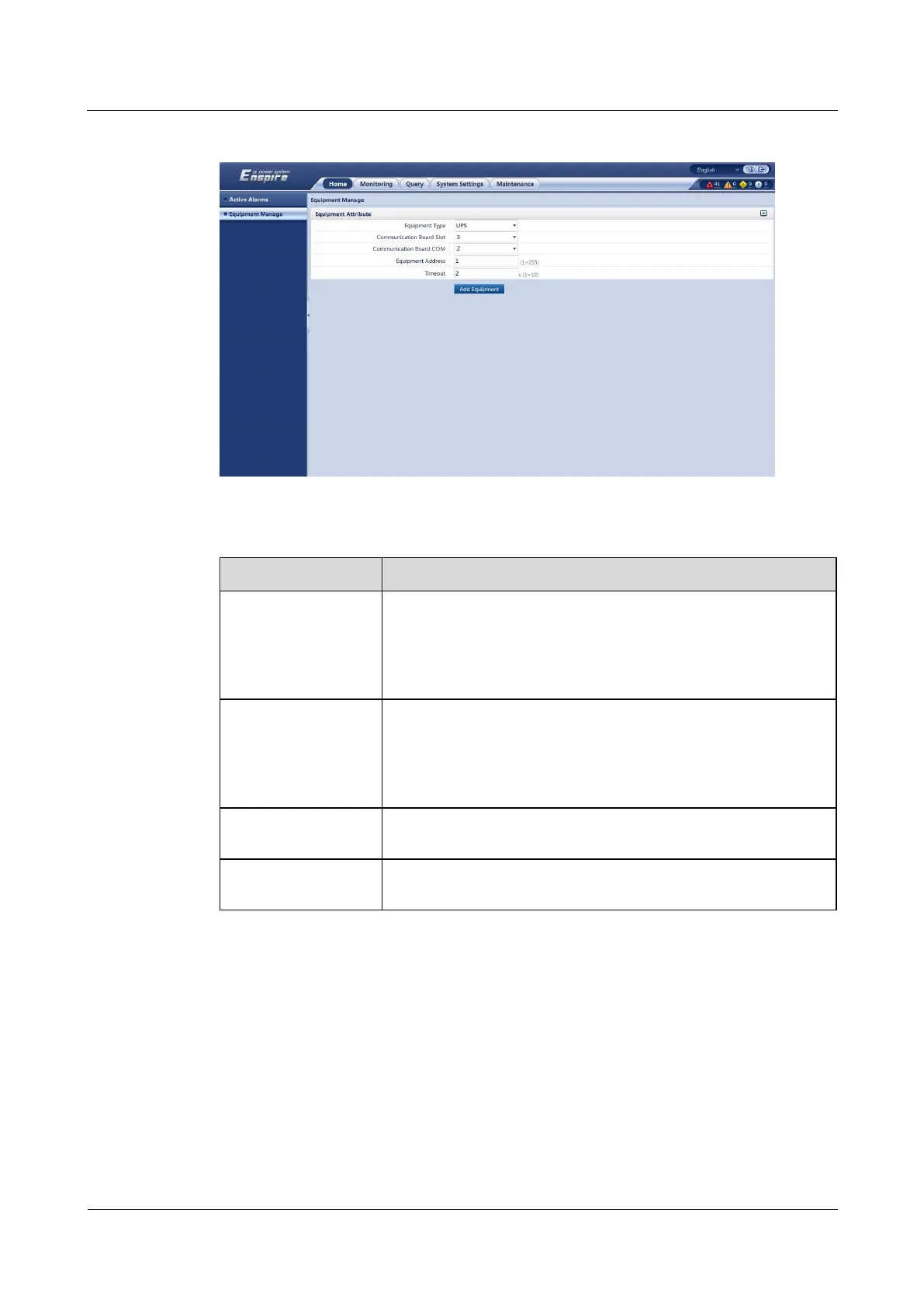

Figure 5-17 Adding a UPS5000-E
Table 5-4 UPS5000-E parameters
Select 3 from the drop-down list box.
NOTE
The setting example indicates that the UPS5000-E is connected to the
COM2 port of the RS485 card in slot 3 of the ECC500. If the UPS5000-E
is connected to another port, set the slot number for the connected port.
Select 2 from the drop-down list box.
NOTE
The setting example indicates that the UPS5000-E is connected to the
COM2 port of the RS485 card in slot 3 of the ECC500. If the UPS5000-E
is connected to another port, set the number of the connected port.
In this example, set Equipment Address to 1. Set the actual
device address of the UPS5000-E during operations.
The default timeout interval is 2s. Set the parameter to the required
value.
Step 4 Click Add Equipment.
----End
Follow-up Procedure
If the device addition fails, check whether the settings are consistent with the device
parameters.
