5.2.4.3 Adding the EA800 UPS
Prerequisites

The EA800 UPS is connected to the ECC500. The EA800 UPS and ECC500 have been
powered on.

You have obtained the ECC500 IP address as well as the user name and password for
WebUI login.

You have prepared a PC which is in the same IP address segment as the ECC500 and
connected the PC to the ECC500 over a switch.
Context
After the EA800 UPS is connected to the ECC500, add the EA800 UPS on the ECC500
WebUI.
Procedure
Step 1 Log in to the ECC500 WebUI.
Step 2 Choose Home > Equipment Manage.
Step 3 Select EA800UPS from the Equipment Type drop-down list box and set device parameters,
as shown in Figure 5-18. Table 5-5 describes the setting methods.

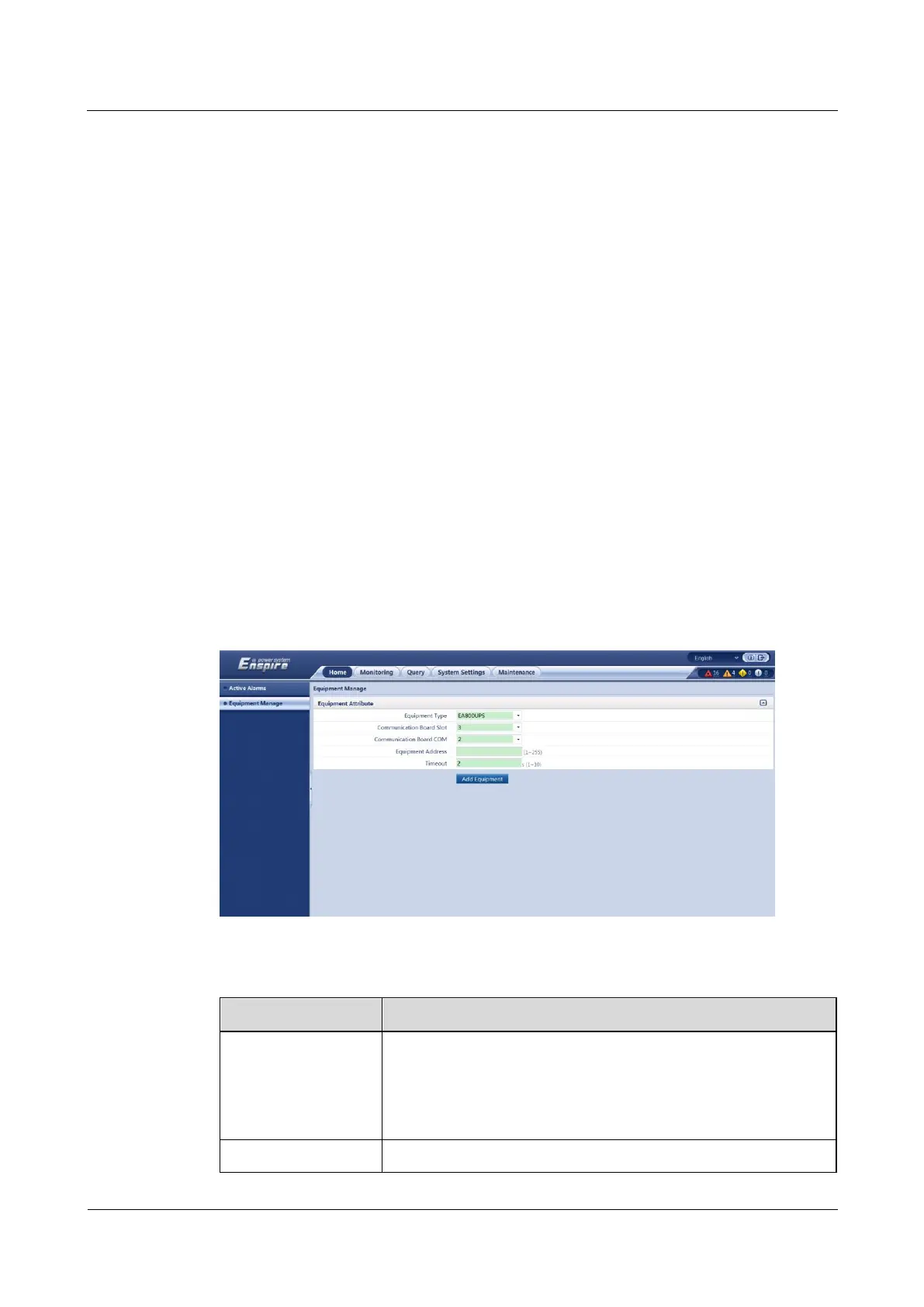

Figure 5-18 Adding the EA800 UPS
Table 5-5 EA800 UPS parameters
Parameter
Setting
Communication
Board Slot
Select 3 from the drop-down list box.
NOTE
The setting example indicates that the EA800 UPS is connected to the
COM2 port of the RS485 card in slot 3 of the ECC500. If the EA800 UPS
is connected to another port, set the slot number for the connected port.
Communication
Select 2 from the drop-down list box.
