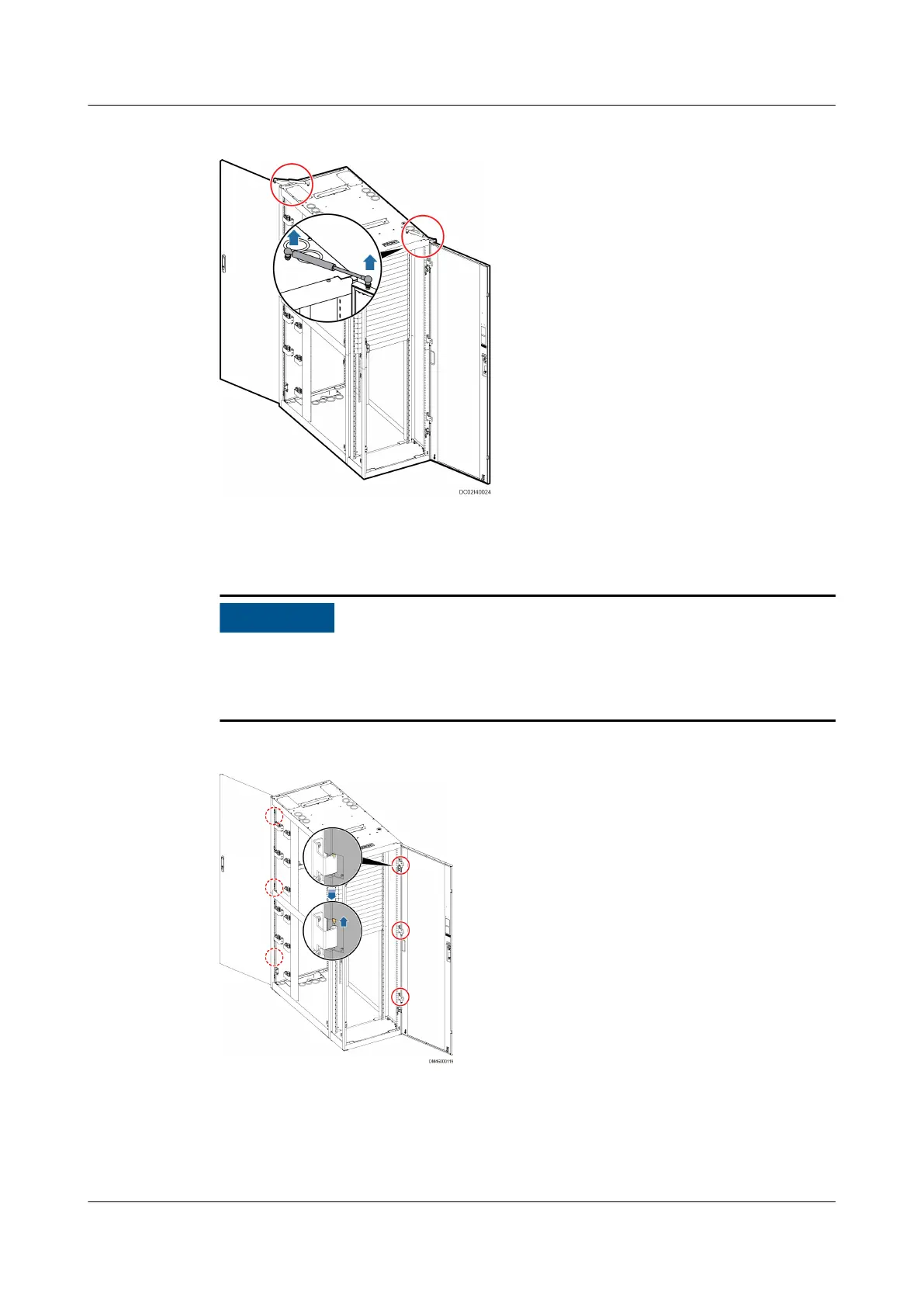

Figure 4-18 Removing the gas springs
Step 4 Remove the ground cable from the Converged Cabinet.
Step 5 Lift the cabinet doors o the hinges. Remove the front and rear doors.
● The cabinet front door is heavy. Arrange at least two persons to carry the door.
● Before removing a cabinet door, disconnect the ground cable between the
cabinet door and the cabinet.
Figure 4-19 Removing the cabinet doors
Step 6 Remove the top plate from the cabinet using a Phillips screwdriver.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 108
