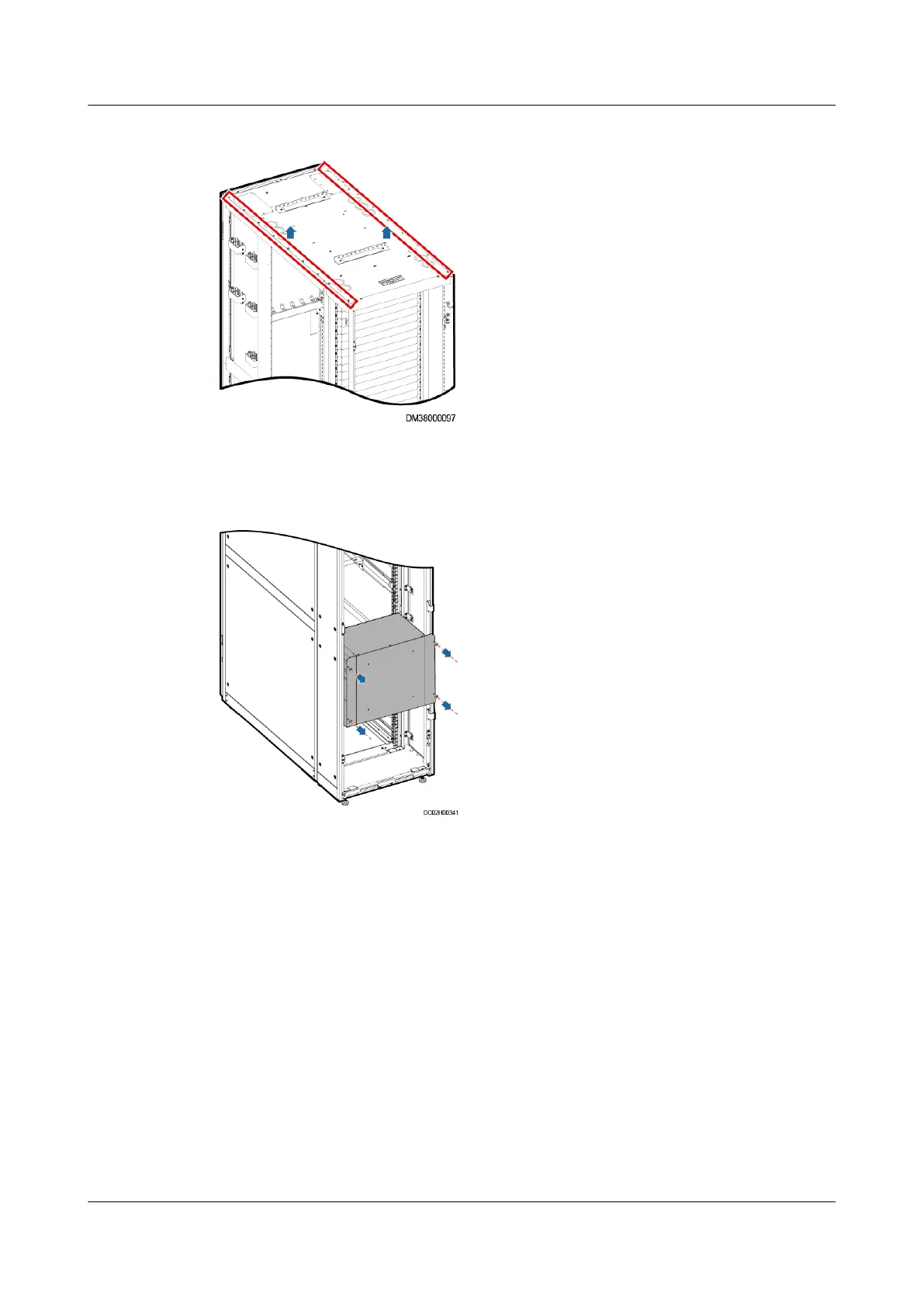

Figure 4-20 Removing the top plate
Step 7 (Optional) Remove the screws from the air director in the Converged Cabinet, and
pull out the air director.
Figure 4-21 Removing the air director
Step 8 Remove the screws securing the aisle containment to the cabinet using a Phillips
screwdriver, and remove the aisle containment from the cabinet.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 109
