Figure 4-22 Removing an aisle containment
Step 9 Remove other aisle containments in the same way.
Step 10 Move the removed air directors, glass doors, gas springs, top plates, aisle
containments, and cabinets to the
specied installation position using an elevator.
Step 11 Assemble the removed components with the cabinets by referring to Step 8–Step
2.

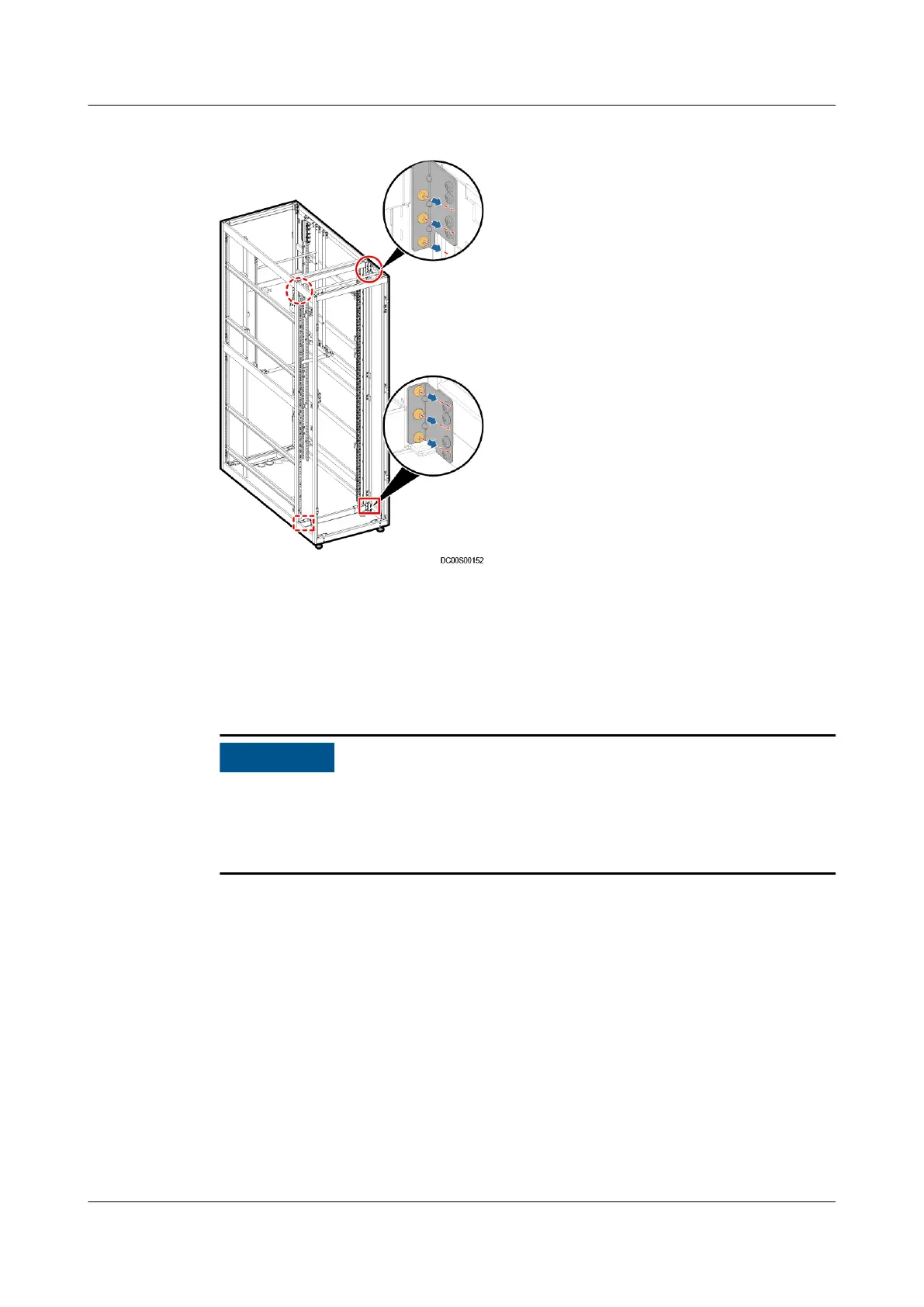

During the process of reinstalling an air director, when pushing the air director
into the aisle containment, align the positioning poles (shown by [1] in Figure
4-23) at the bottom of the left and right sides of the air director with the
positioning holes in the aisle.
