Saturation
Temperatu
re (°C)
Gauge
Pressure
(MPa)
Saturation
Temperatu
re (°C)
Gauge
Pressure
(MPa)
Saturation
Temperatu
re (°C)
Gauge
Pressure
(MPa)
8 0.93 27 1.65 46 2.7
9 0.96 28 1.69 47 2.76
10 0.99 29 1.74 48 2.83
11 1.02 30 1.79 49 2.9
12 1.05 31 1.84 50 2.97
13 1.09 32 1.89 51 3.04
14 1.12 33 1.94 52 3.11
15 1.16 34 1.99 53 3.19
16 1.19 35 2.04 54 3.26
17 1.23 36 2.1 55 3.34
18 1.27 37 2.15 - -
1 MPa ≈ 10 bar ≈ 145 psi ≈ 10.2 kgf/cm
2
Oil Trap

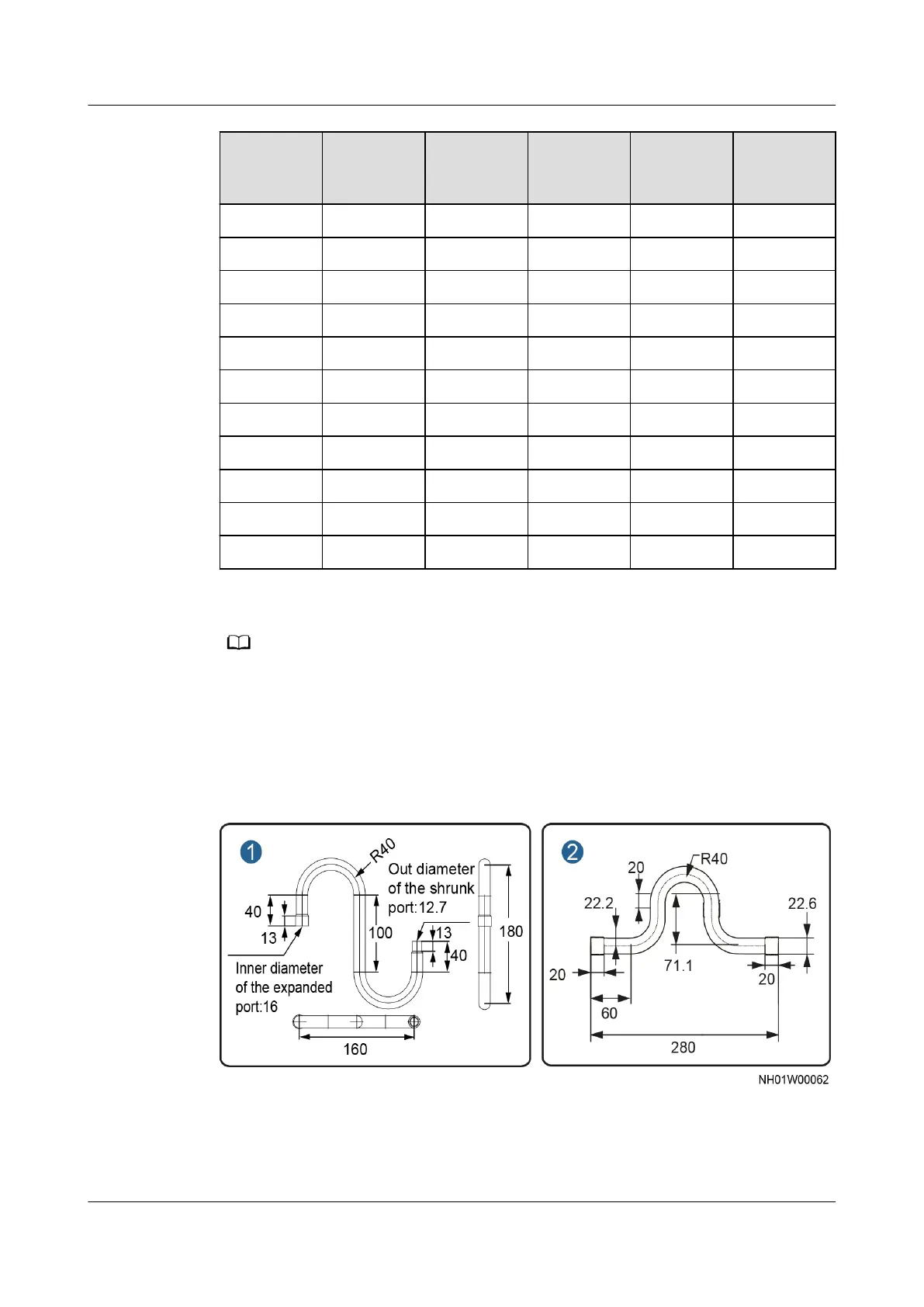

Figure 4-36 shows the oil trap specications.
Figure 4-36 Oil trap (unit: mm)
(Optional) Gas Pipe, Liquid Pipe, and Thermal Insulation Foam
Table 4-6 lists the specications for pipes and thermal insulation foam.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 121
