Table 4-6 Specications
Item Specications
Gas pipe ● L ≤ 60 m, 5/8 inch (15.88 mm), wall thickness: 1.0 mm; pressure
withstanding capacity ≥ 4.5 MPa
● 60 m < L ≤ 80 m, 7/8 inch (22.2 mm), wall thickness: 1.2 mm;
pressure withstanding capacity ≥ 4.5 MPa
Liquid
pipe
● L ≤ 60 m, 3/8 inch (9.52 mm), wall thickness: 0.75 mm; pressure
withstanding capacity ≥ 4.5 MPa
● 60 m < L ≤ 80 m, 1/2 inch (12.77 mm), wall thickness: 1.0 mm;
pressure withstanding capacity ≥ 4.5 MPa
Thermal
insulation
foam
≥ 13 mm
Water pipe

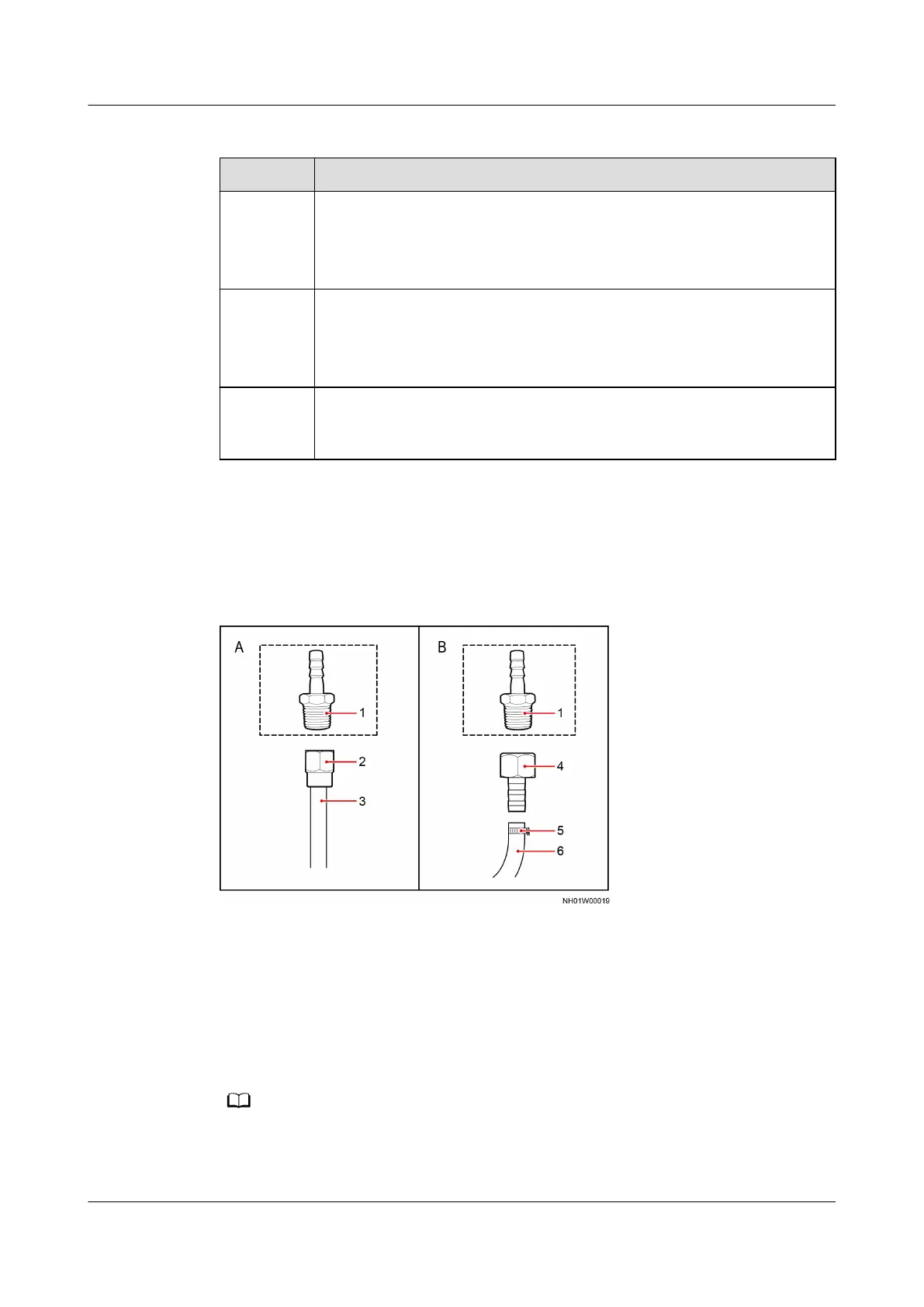

Figure 4-37 shows how to connect a drainpipe.
Figure 4-37 Connecting a drainpipe
(1) Drainpipe connector: BSPT
1/2-inch, delivered with the
smart cooling product
(2) Rigid pipe conversion
adapter: BSPP 1/2 inch,
connected to a rigid pipe with
inner screw threads
(3) Rigid pipe: made of PP-R or
other material
(4) Pagoda conversion adapter:
BSPP 1/2 inch, connected to a
pipe with inner screw threads
(5) Hose clamp (6) Hose: made of EPDM or
other material
The object shown in the broken line box is the drainpipe connector with outer screw
threads delivered with smart cooling products. The hose clamp (part 5) is used in standard
conguration. Other parts are not congured and need to be purchased onsite.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 122
