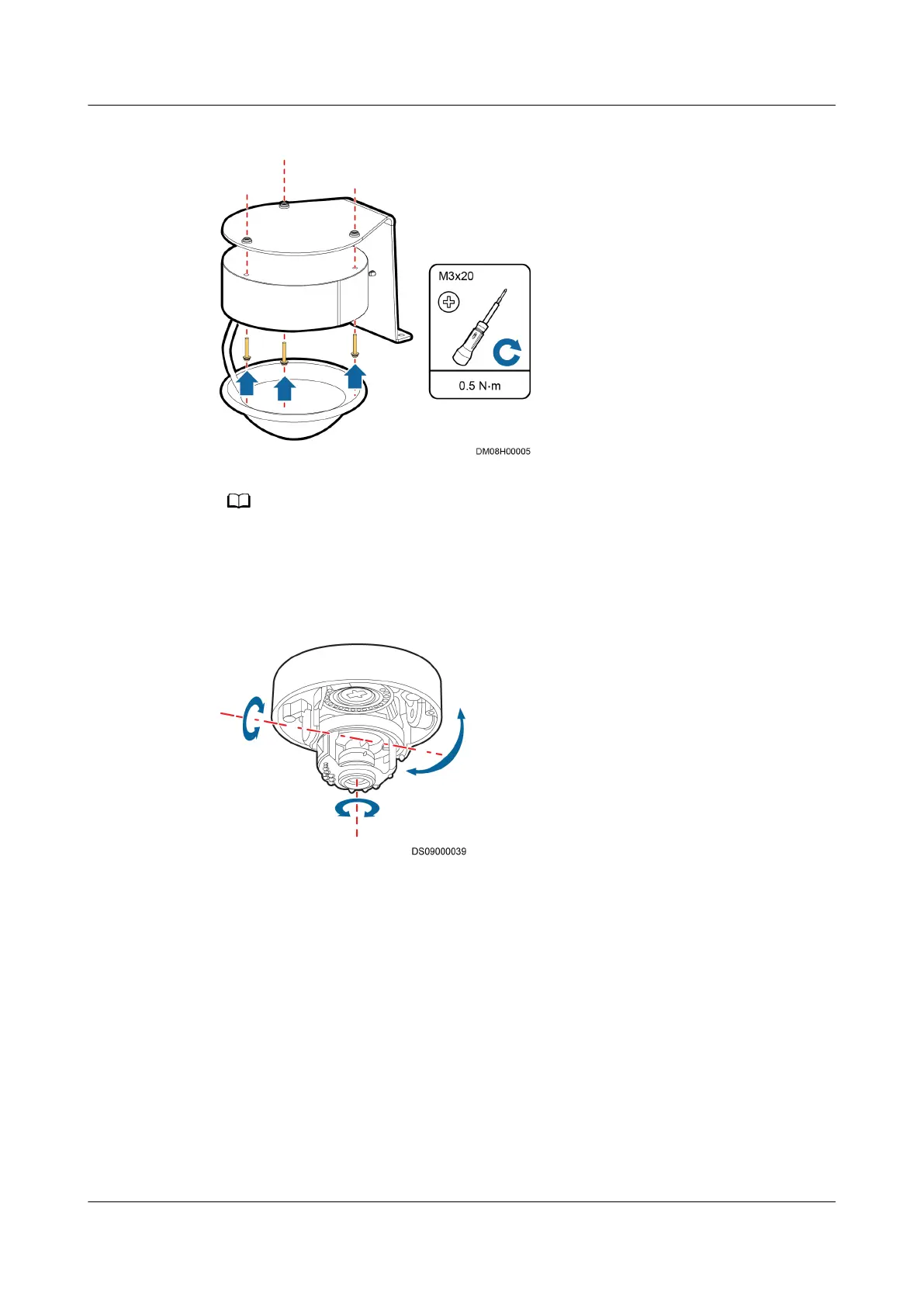

Figure 4-121 Installing a Camera
This camera model provides triple-axis adjustment design. Connect the auxiliary video cable
delivered with the camera to a display device such as the monitor. Rotate the camera 0-355
degrees horizontally, 0-75 degrees vertically, or 0-355 degrees in the revolving direction to
achieve an appropriate angle. Figure 4-122 shows the adjustment methods.
Figure 4-122 Triple-axis adjustment
Step 2 Install the mounting plate with the camera at the top of the front door of the end
cabinet, as shown in Figure 4-123.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 183
