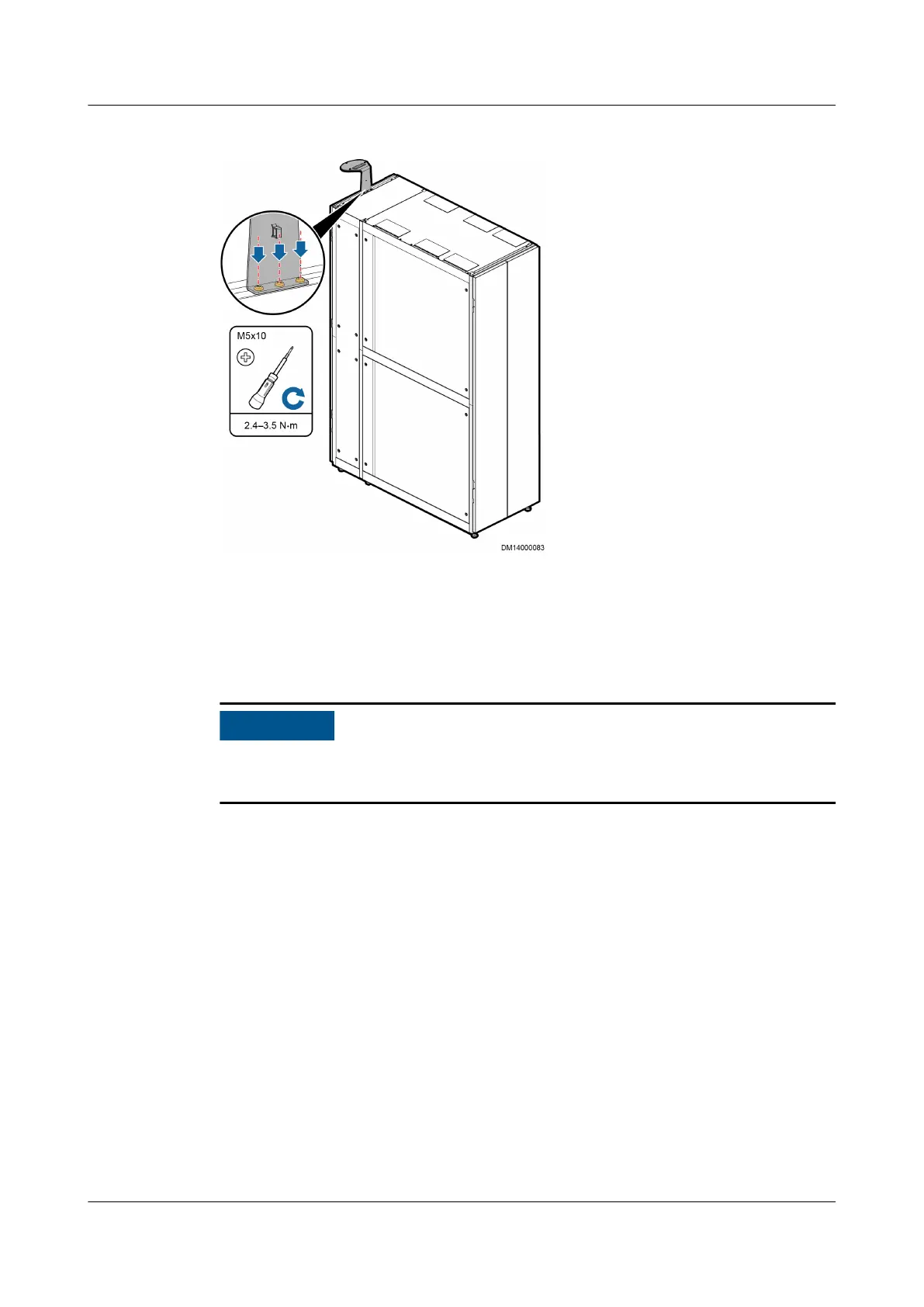

Figure 4-123 Installing a camera mounting plate
Step 3 Connect the camera monitoring cable. Connect one end of a network cable to the
Ethernet port on the camera and the other end to any network port on the smart
ETH gateway (with PoE power supply).
Device cables not mentioned in the document do not need to be connected onsite
and should be insulated only.
Step 4 Adjust monitoring images, as shown in Figure 4-124.
1. Determine an appropriate installation angle and enable manual iris control.
2. Power on the ECC800-Pro to energize the camera.
3. Appoint one person to log in to the camera control software and observe the
image on the monitor, and another person to rotate the lens to cover the
target area.
4. Appoint one person to observe the image displayed on the monitor and
another person to adjust the Zoom screw (T to W) to achieve an appropriate
angle of coverage.
5. Assign one person to observe the image on the monitor, and another person
to adjust the focus bolt (∞-N) for a clear picture.
6. After the adjustment, enable automatic iris control and tighten the lens
adjustment pole.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 184
