Context
● The BOM number of a double door magnetic lock is 02070261.
● A double door magnetic lock is installed on a room door.
Procedure
Step 1 Fold the cutout template delivered with the device 90 degrees along the dotted
line, as shown by (2) in Figure 4-158.
Step 2 Close the door, place the cutout template near the door top at the far end of the
door axis, mark the mounting holes, and drill holes, as shown in Figure 4-158.

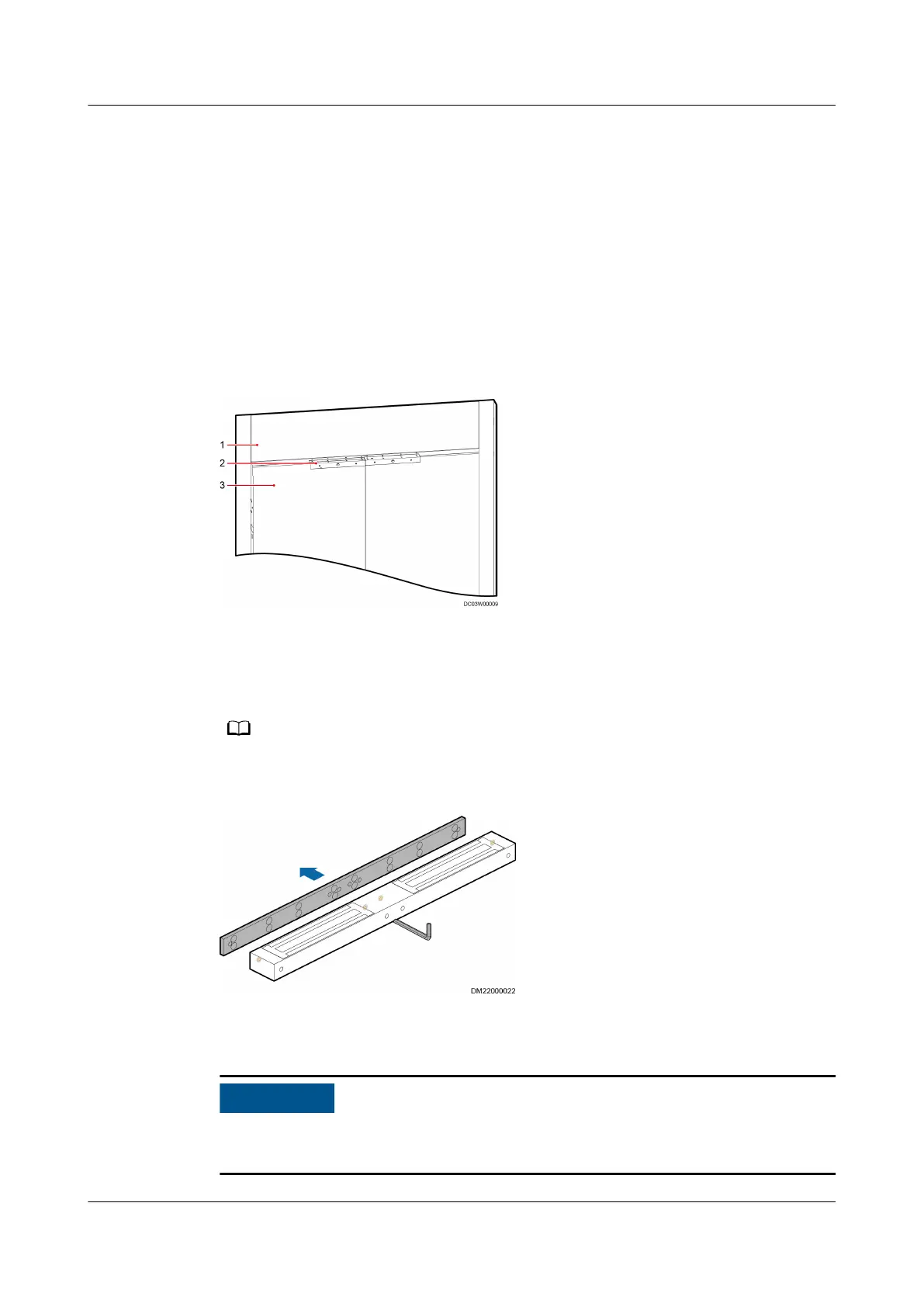

Figure 4-158 Marking mounting holes
(1) Door frame (2) Cutout template (3) Door panel
Step 3 Remove the hoisting strip using the delivered hex key.
Four hex socket screws need to be removed in this step.
Figure 4-159 Removing the hoisting strip
Step 4 Secure the hosting strip using the delivered screws, as shown by (1) in Figure
4-160.
Pay attention to the direction of the hoisting strip, and ensure that the bulging
surface of the magnetic lock faces the magnet.
