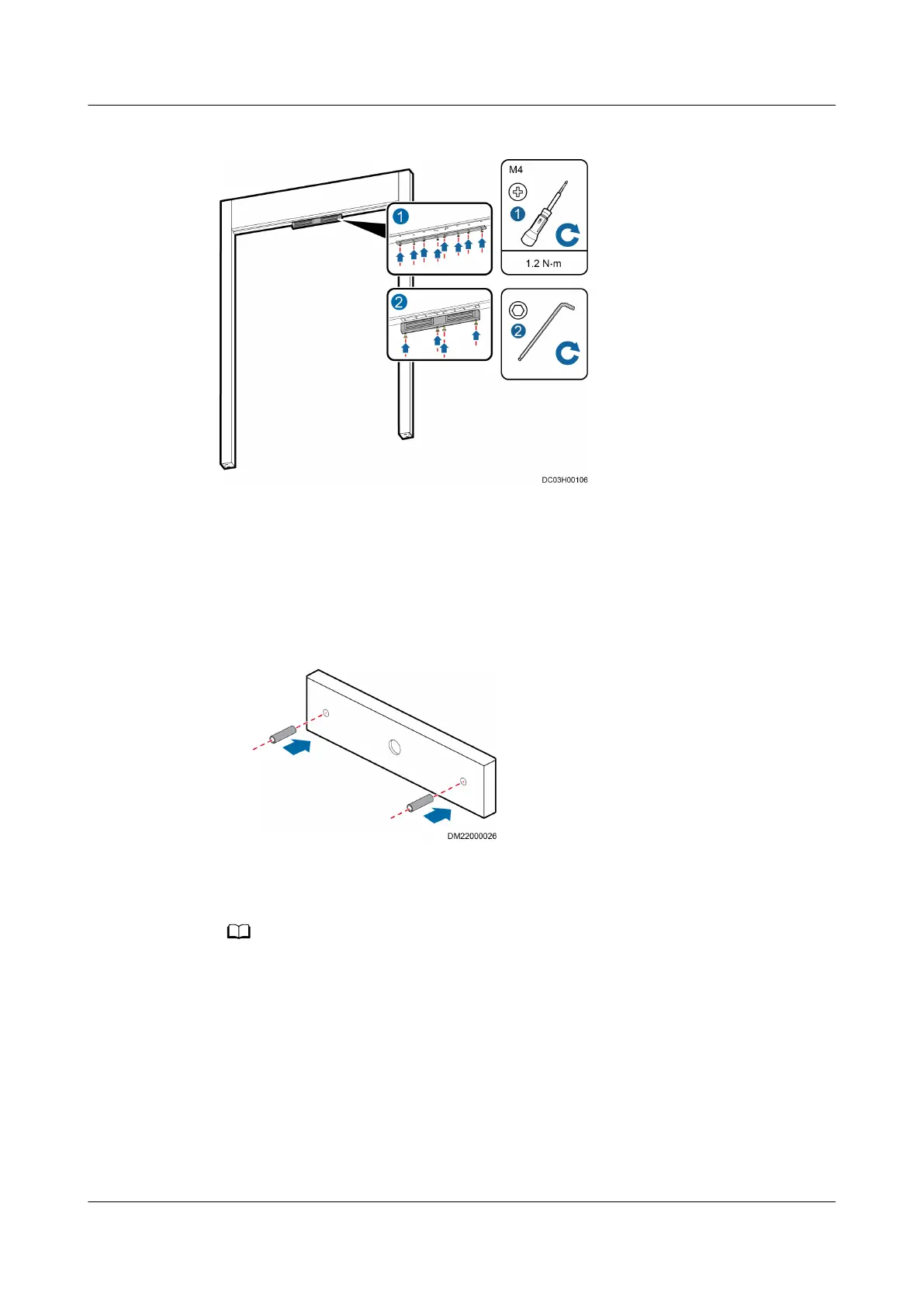

Figure 4-160 Installing a magnetic lock
Step 5 Route the electronic lock cable through the cable hole, and secure the electronic
lock using a hex key, as shown by (2) in Figure 4-160.
Step 6 Install the magnet.
1. Take out the magnet, and knock the positing pins of the magnet into the
magnet using a rubber mallet.
Figure 4-161 Installing positioning pins of a magnet
2. Insert the assembled magnet into the positioning holes in the door, and
secure the magnet to the door using the screws and rubber pad delivered
with the electronic lock, as shown in Figure 4-162.
When securing the magnet to the door panel, do not over-tighten the screws so that the
rubber pad is elastic. The rubber pad will adjust the magnet to a correct position because of
its elasticity.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 204
