Context

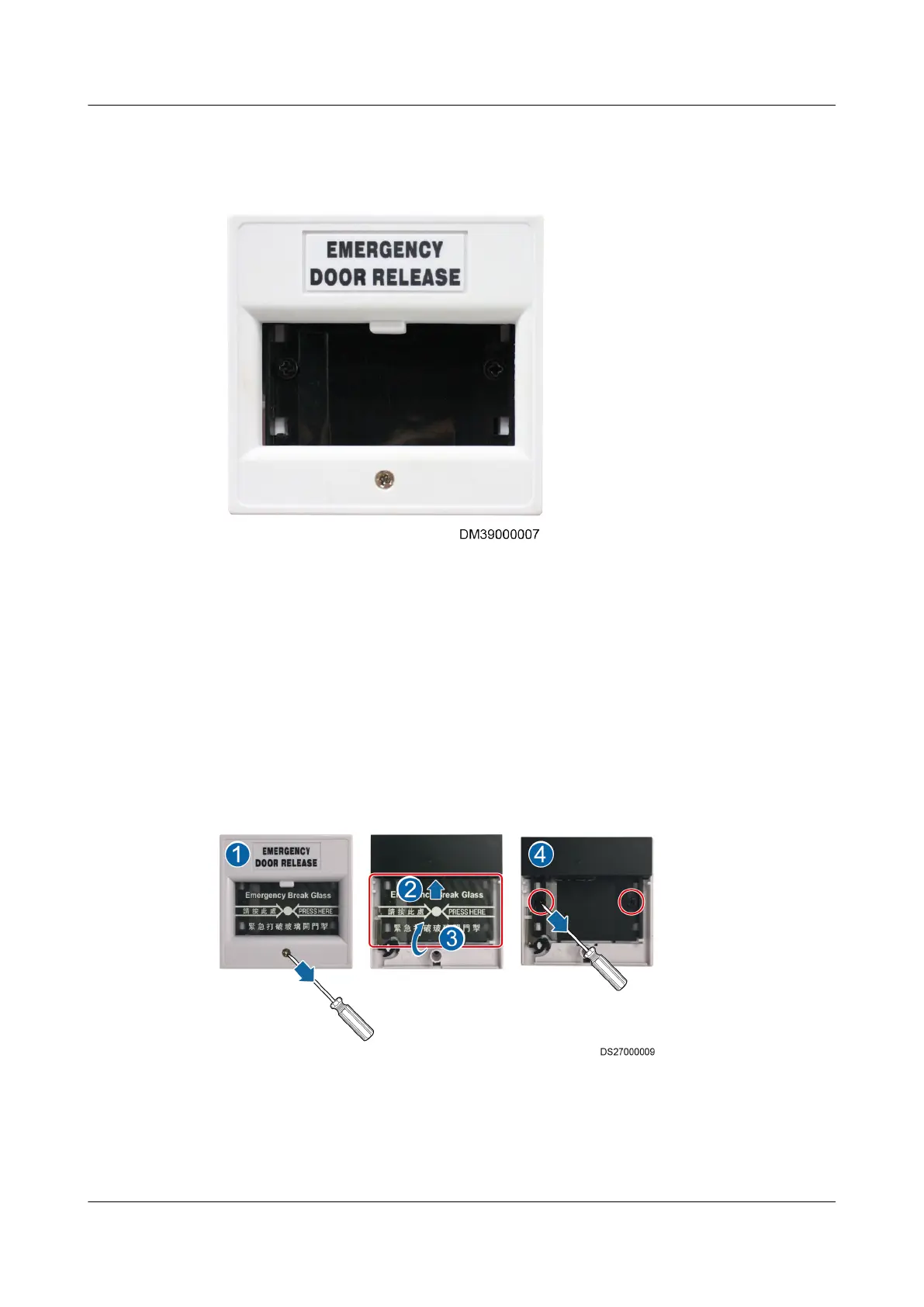

Figure 6-81 Emergency door release button
Procedure
Step 1 Remove the emergency door release button.
1. Remove the screw that secures the emergency door release button, as shown
by (1) in Figure 6-82.
2. Remove the glass panel of the emergency door release button, as shown by
(2) and (3) in Figure 6-82.
3. Remove the screws that secure the base, as shown by (4) in Figure 6-82.
4. Disconnect cables and remove the emergency door release button.
Figure 6-82 Removing an emergency door release button
Step 2 Install a new emergency door release button.
1. Connect cables.
2. Tighten screws on the base, as shown by (1) in Figure 6-83.
3. Install the glass panel, as shown by (2) and (3) in Figure 6-83.
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 487
