You have located the N2000H V3 based on the preceding information, and labeled its
panel to prevent misoperations.
Tools
ESD gloves
Packaging materials, for example, an ESD bag
Phillips screwdriver
Procedure
Step 1 Unscrew the trans flash module (TFM). See step (1) in Figure 5-45.
Step 2 Vertically lift the trans flash module (TFM) out of the RAID controller card. See step (2) in
Figure 5-45.
Step 3 Determine the supercapacitor position. See Figure 5-44.

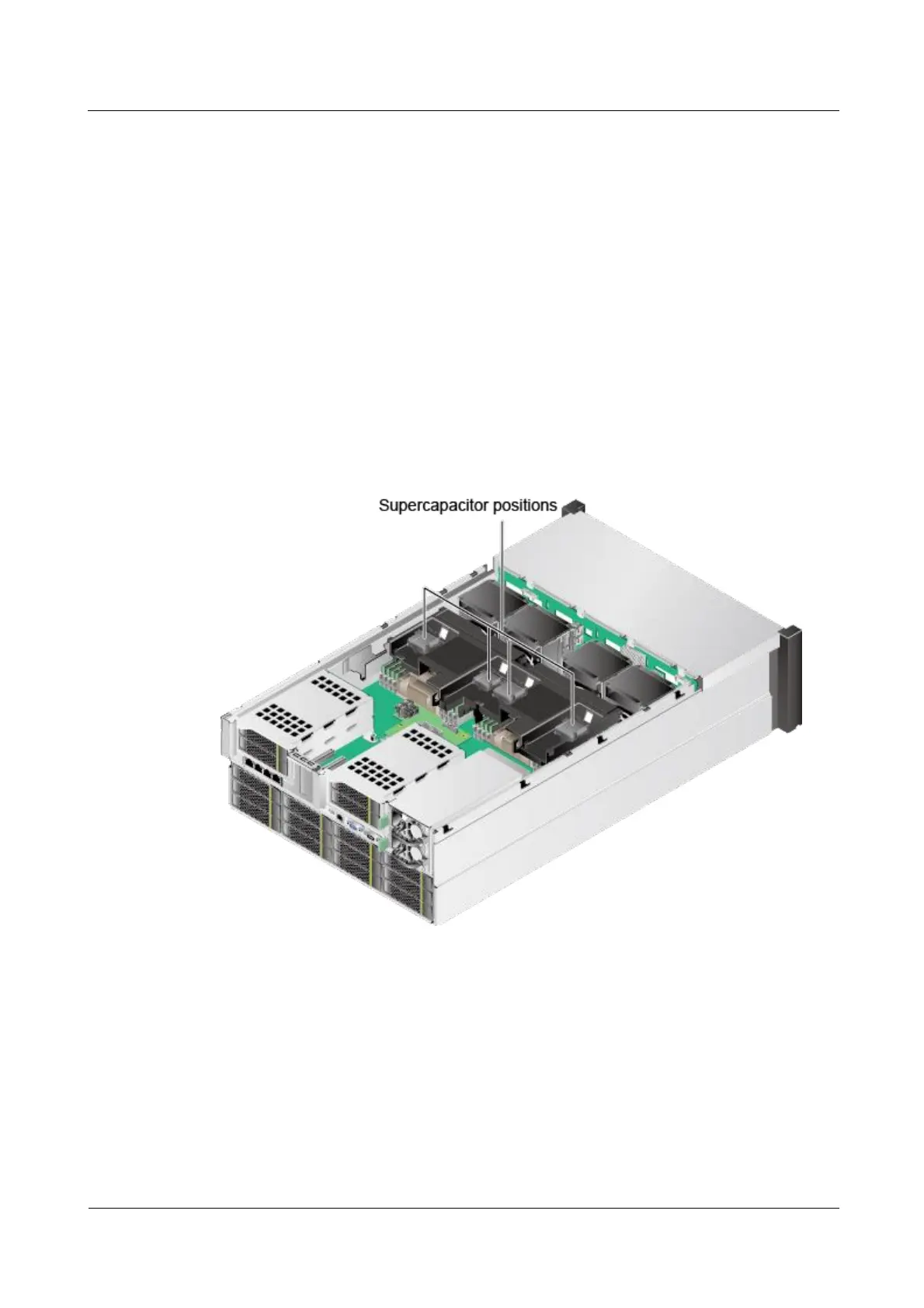

Figure 7-44 Determining the supercapacitor position
Step 4 Horizontally open the plastic latches that secure the supercapacitor. See step (3) in Figure
5-45.
Step 5 Exert even force to lift the supercapacitor out of the Appliance. See step (4) in Figure 5-45.
