MPU Panel

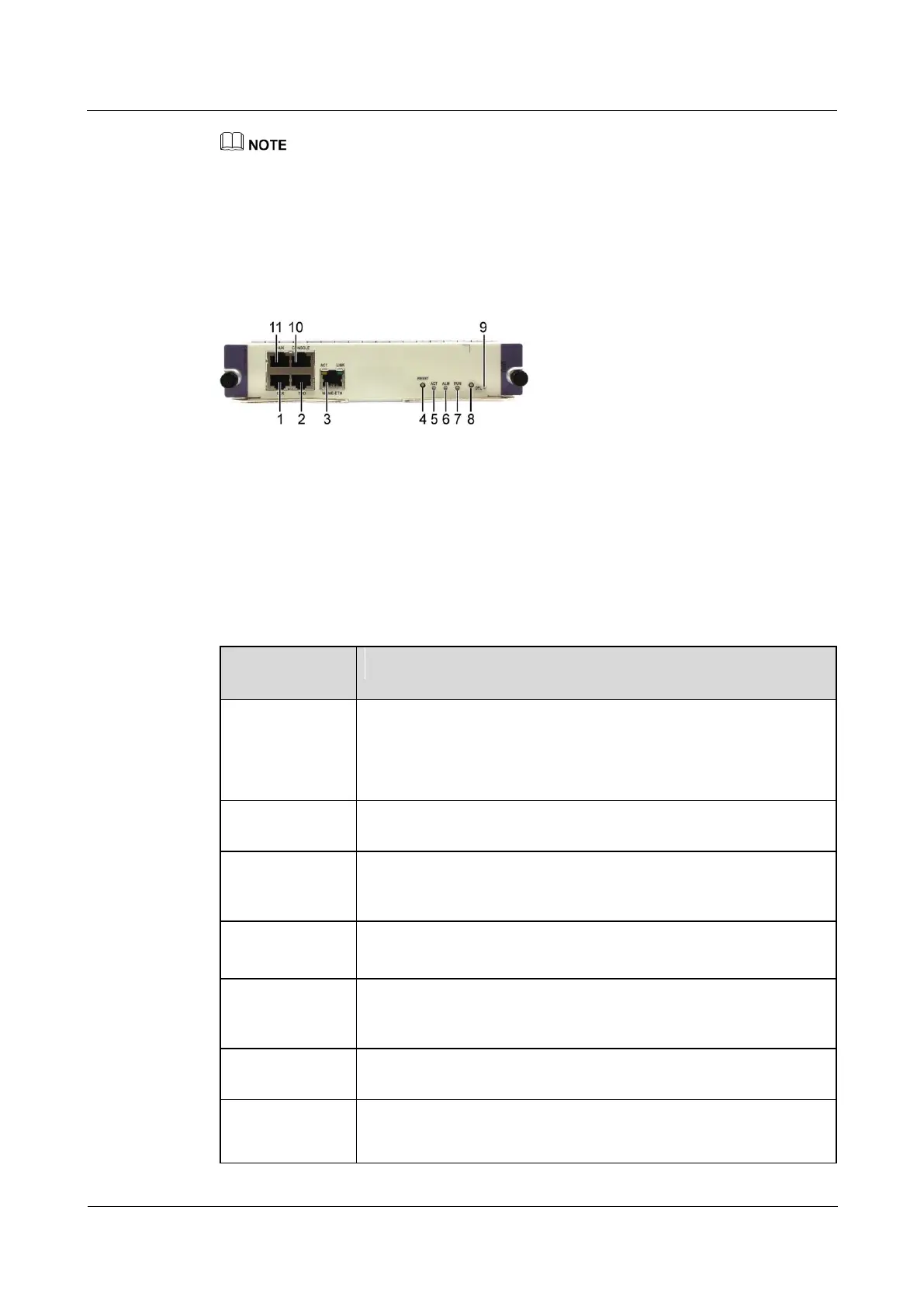

Figure 4-18 shows the appearance of the panel.
Figure 4-18 Appearance of the panel
1. CLK
2. TOD
3. MGMT-ETH
4. Reset button
5. ACT indicator
6. ALM indicator
7. RUN indicator
8. OFL button
9. OFL indicator
10. Console
11. AUX interface
Table 4-9 describes the buttons and indicators on the MPU panel.
Table 4-9 Buttons and indicators on the MPU panel
Indicator/Butto
n
Description
OFL button
To remove a board, you must press and hold the button for six seconds
until the OFL indicator turns on.
Note:
This button takes effect only on the slave MPU.
OFL indicator
(red)
If the indicator is on, you can remove the board.
RUN indicator
(green)
If the indicator blinks once every two seconds (0.5 Hz), the system is
in the normal state. If the indicator blinks twice each second (2 Hz),
the system is in the alarm state.
ALM indicator
(red)
If the indicator is steady on, the system is in the alarm state.
If the indicator is steady off, the system is in the normal state.
ACT
active/standby
indicator (green)
If the indicator is on, the MPU is in the active state.
If the indicator is off, the MPU is in the standby state.
Reset button
The button is used for resetting the MPU. Press the Reset button, and
you can reset the MPU.
LINK indicator
(green) (on the
Ethernet
If the indicator is steady on, the link is normal.
If the indicator is off, the link is Down.
