Huawei NetEngine40E Hardware Description

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
5 NE40E-8 Chassis Overview
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
120
Indicator
Color
Description
V DC to -78 V DC).

The secondary power output is abnormal, like the power
fan fault, the overheated power module, and the
lightning prevention circuit fault.

The primary line supplies power for the NE40E system and boards.

The secondary line supplies power for the fan module.

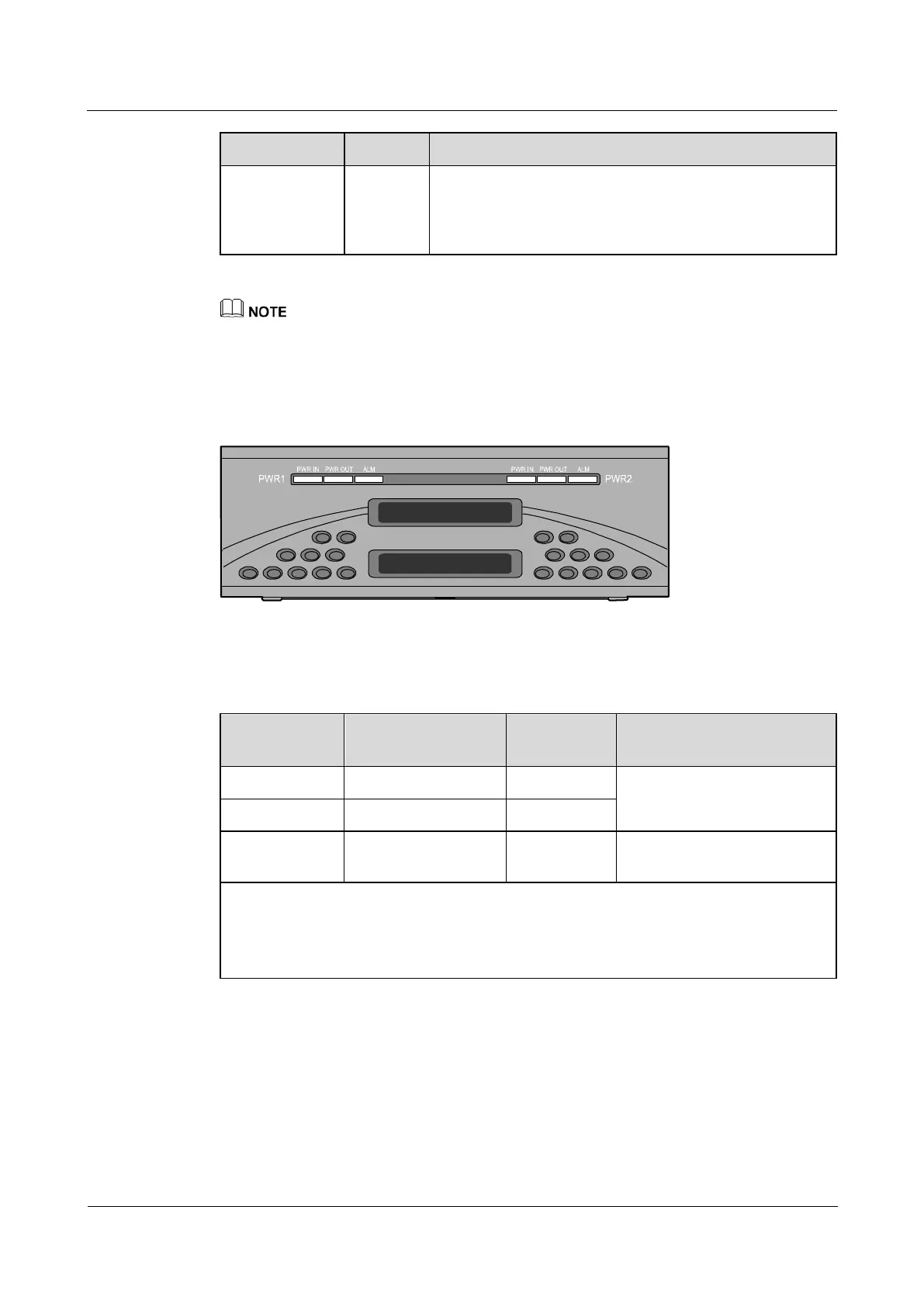

Figure 5-5 shows the plastic panel of the power module on the NE40E-8.
Figure 5-5 Plastic panel of the power module on the NE40E-8
Table 5-3 shows the connection between the DC power cable and the terminal.
Table 5-3 Connection between the DC power cable and the terminal
Terminal
Identifier
Cable
Color
Connected Terminal
RTN (+)
Power ground cable
Black
JG dual-hole crimp terminal
NEG (-)
Power cable
Blue
PGND
Protection ground
cable
Yellow and
green
Not necessary to connect
NOTE

RTN: Return

NEG: Negative

PGND: Protection Ground
Functions
The power supply of the NE40E-8 have a primary straight-through output and a secondary
regulated voltage of -48 V DC output.
The power supply provides the following functions:

The primary straight-through power provides protection against short circuits.
