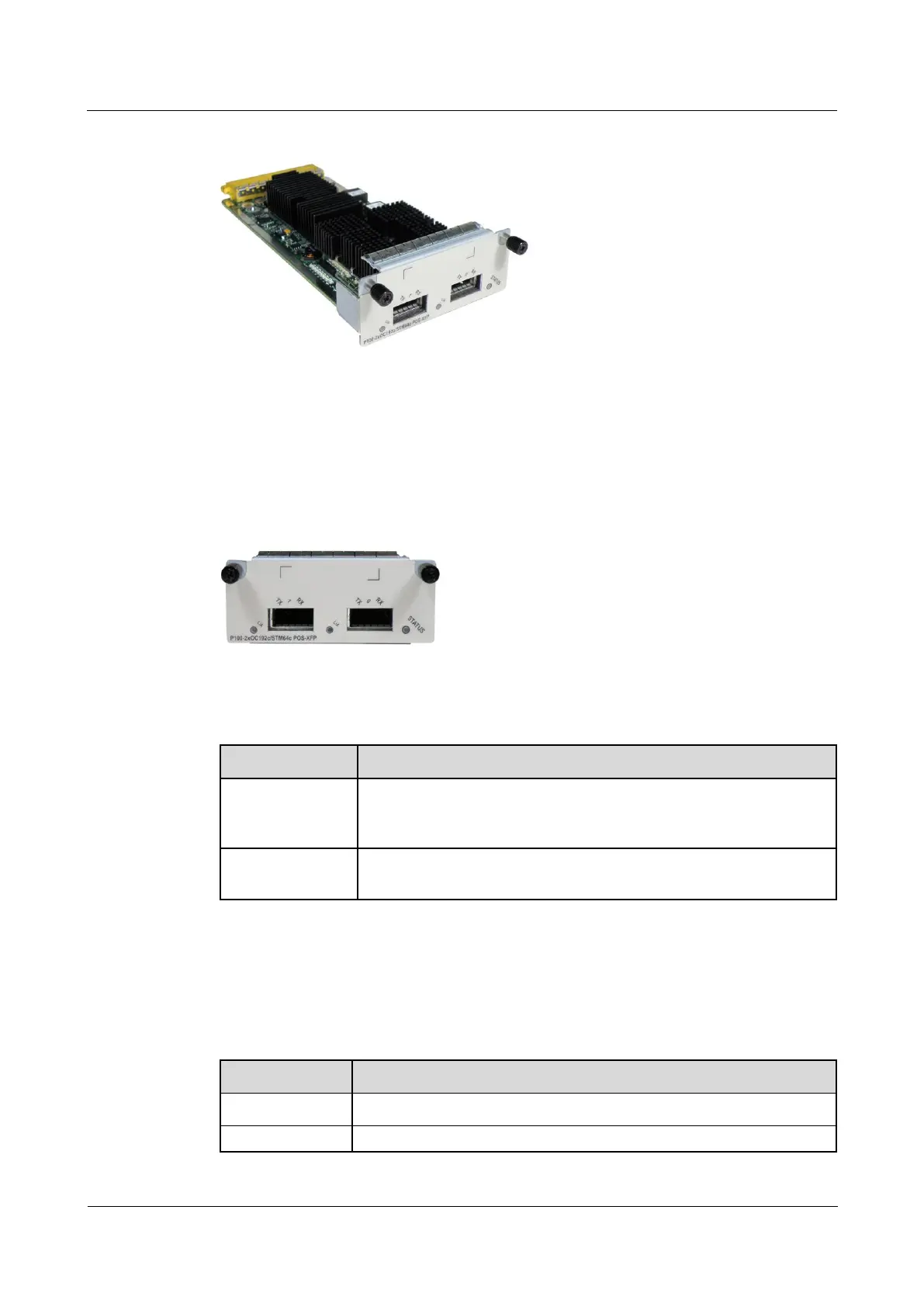

Figure 6-21 Appearance of the 2-port OC-192c/STM-64c POS-XFP optical interface FPIC
Panel
Figure 6-22shows the panel appearance of the 2-port OC-192c/STM-64c POS-XFP optical
interface FPIC. Table 6-54 describes the indicators on the panel.
Figure 6-22 Panel appearance of the the 2-port OC-192c/STM-64c POS-XFP optical interface
FPIC
Table 6-54 Indicators on the panel of the 2-port OC-192c/STM-64c POS-XFP optical interface
FPIC
Indicator
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
FPIC is in the alarm state.
LINK/ACT
indicator(green)
If the indicator is on, the link is Up. If the indicator is blinking, the
data is being read or written. If the indicator is off, the link is Down.
Interface Attributes
Table 6-55 lists the interface attributes of the 2-port OC-192c/STM-64c POS-XFP FPIC.
Table 6-55 Interface attributes of the 2-port OC-192c/STM-64c POS-XFP FPIC
Attributes
Description
Connector type
LC/PC
Optical interface
Compliant with the selected XFP optical module. (for the attributes of
