HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
6 Boards
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
246

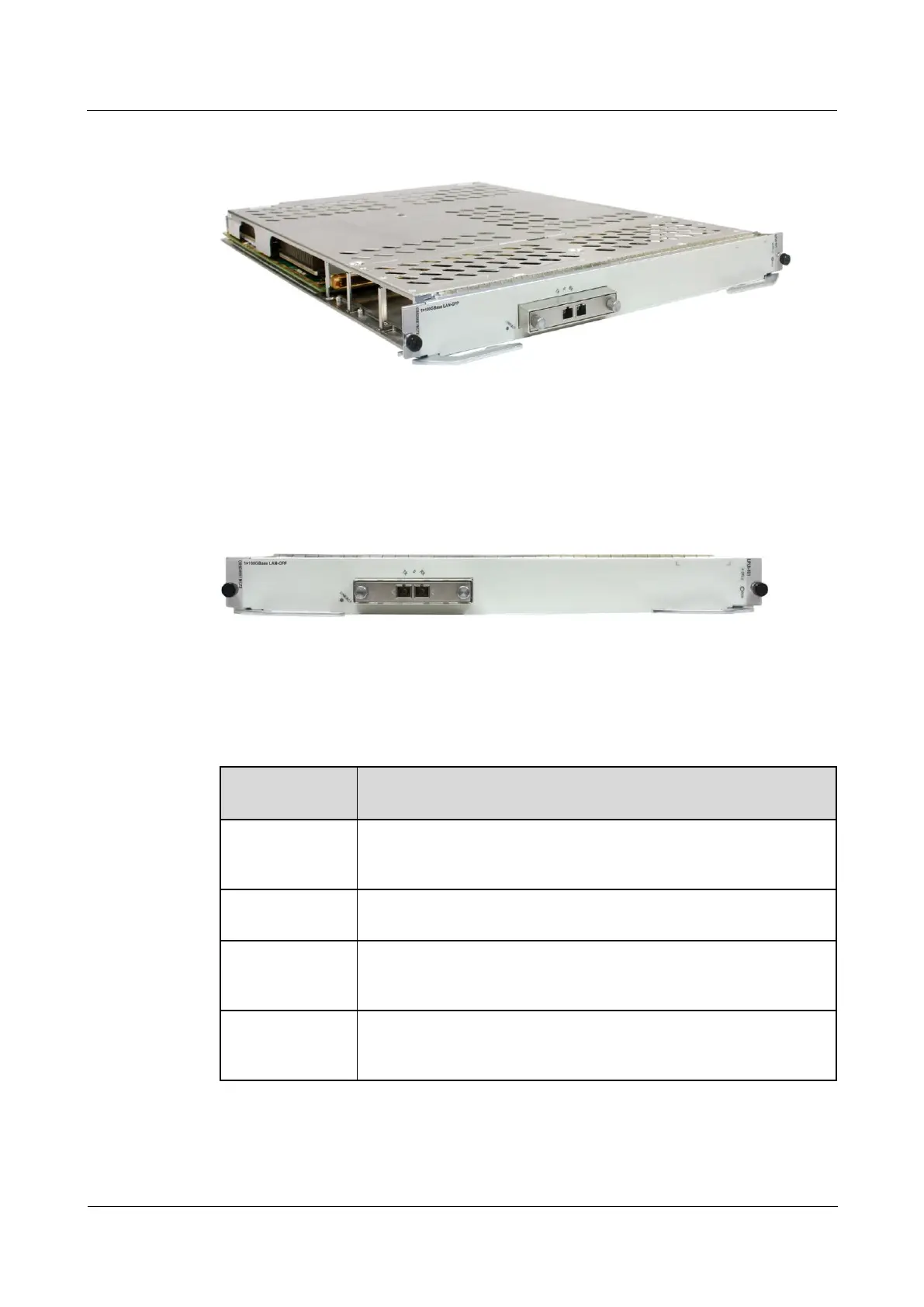

Figure 6-44 Appearance of the 1-Port 100GBase-CFP Integrated Line Processing Unit
(LPUI-101)
Panel
Figure 6-45 shows the panel of the 1-Port 100GBase-CFP Integrated Line Processing Unit
(LPUI-101).
Figure 6-45 1-Port 100GBase-CFP Integrated Line Processing Unit (LPUI-101) panel
Table 6-114 describes the buttons and indicators on the 1-Port 100GBase-CFP Integrated Line
Processing Unit (LPUI-101) panel.
Table 6-114 Description of the buttons and indicators on the 1-Port 100GBase-CFP Integrated
Line Processing Unit (LPUI-101) panel
Indicator/Butto
n
Description
OFL button
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for six seconds till the OFL indicator is on. Then, the
board can be pulled out.
OFL indicator
(red)
If the indicator is steady on, it indicates that you can remove the
board.
RUN (green)
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. Otherwise, it indicates that the board fails
to run normally.
LINK/ACT
(green)
If the indicator is steady on, it indicates that the link is normal. If the
indicator blinks, it indicates that data is being transmitted. If the
indicator is off, it indicates that the link is Down.
