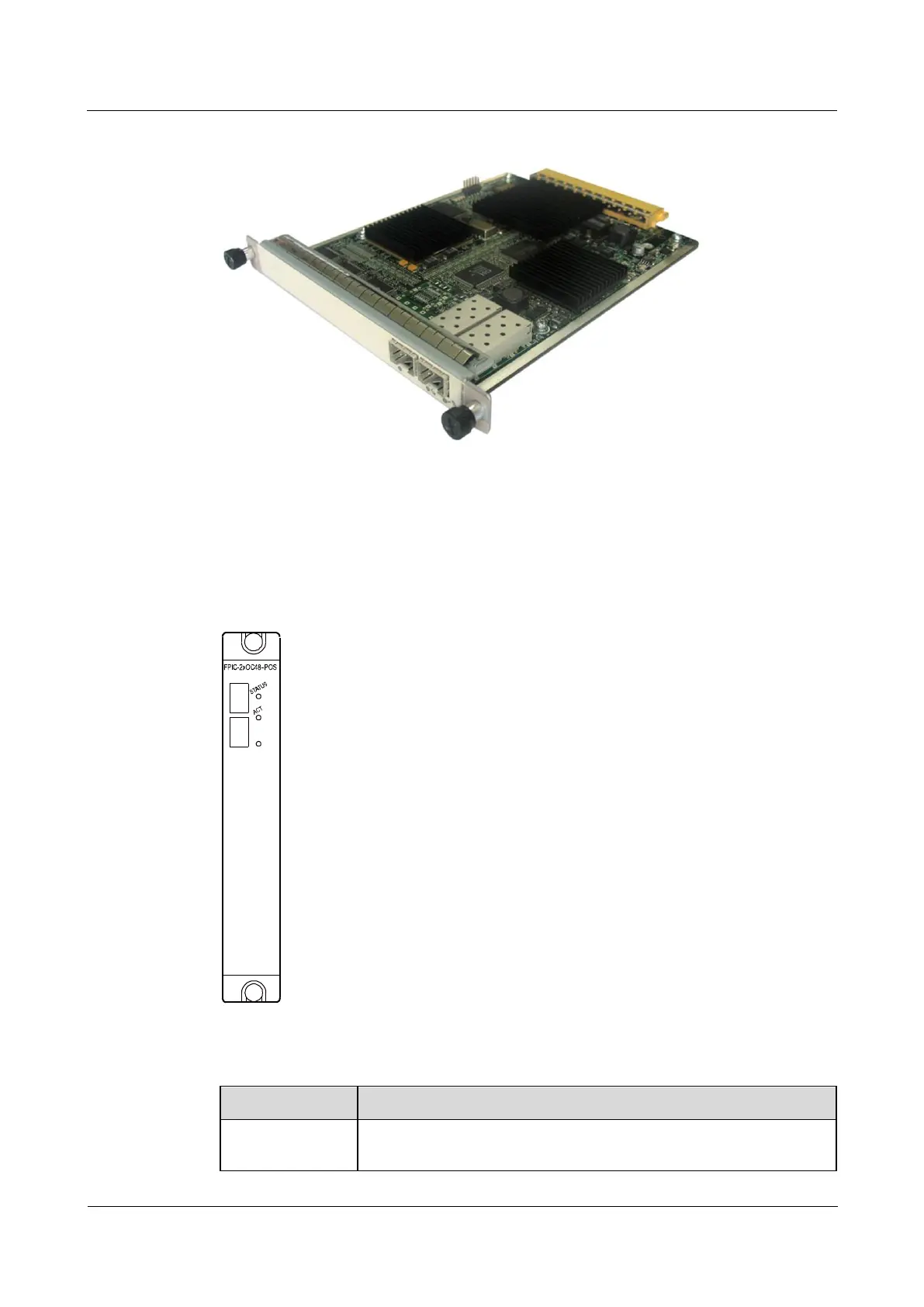

Figure 6-107 Appearance of the 2-port OC-48c/STM-16c POS-SFP FPIC
Panel
Figure 6-108 shows the panel appearance of the 2-port OC-48c/STM-16c POS-SFP FPIC.
Table 6-272 describes the indicators on the panel.
Figure 6-108 Panel appearance of the 2-port OC-48c/STM-16c POS-SFP FPIC
Table 6-272 Indicators on the panel of the 2-port OC-48c/STM-16c POS-SFP FPIC
Indicator
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
