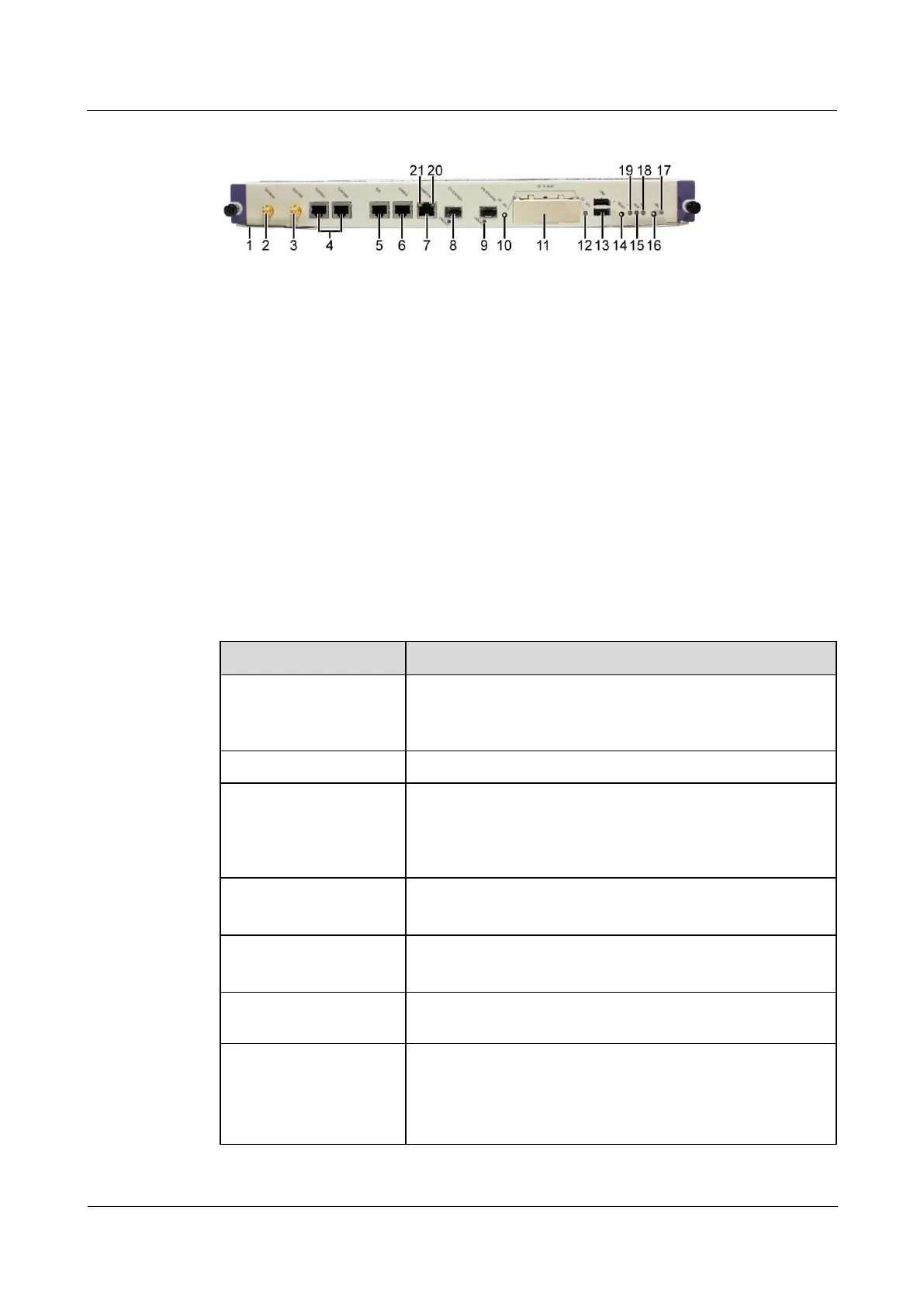

Figure 2-21 Appearance of the panel
1. Ejector lever
2. CLK/Serial
3. CLK/1PPS
4. CLK/TOD
5. AUX
6. Console
7. MGMT-ETH
8. CTL-ETH-SFP
9. LINK/ACT
10. CF OFL
button
11. CF card
12. CF indicator
13. USB
14. RESET
15. ALM indicator
16. OFL button
17. OFL indicator
18. RUN
indicator
19. ACT
active/standby
indicator
20. MGMT-ETH
LINK indicator
21. MGMT-ETH
ACT indicator
Table 2-10 lists the buttons and indicators on the panel of the MPU.
Table 2-10 Buttons and indicators on the panel of the MPU
Indicator/Button
Description
OFL button
To remove a board, you must press and hold the button for six
seconds until the OFL indicator turns on.
This button takes effect only on the slave MPU.
OFL indicator (red)
If the indicator is on, you can remove the board.
RUN indicator (green)
If the indicator blinks once every two seconds (0.5 Hz), the
system is in the normal state.
If the indicator blinks twice each second (2 Hz), the system is
in the alarm state.
ALM indicator (red)
If the indicator is steady on, the system is in the alarm state.
If the indicator is steady off, the system is in the normal state.
ACT active/standby
indicator (green)
If the indicator is steady on, the MPU is in the active state.
If the indicator is off, the MPU is in the standby state.
Reset button
The button is used for resetting the MPU. If you press the
Reset button, you can reset the MPU.
CF ACT indicator
(green)
If the indicator is on, the CF is in position.
If the indicator is blinking, data is being read or written.
If the indicator is off, the CF is not in position or can be
removed.
