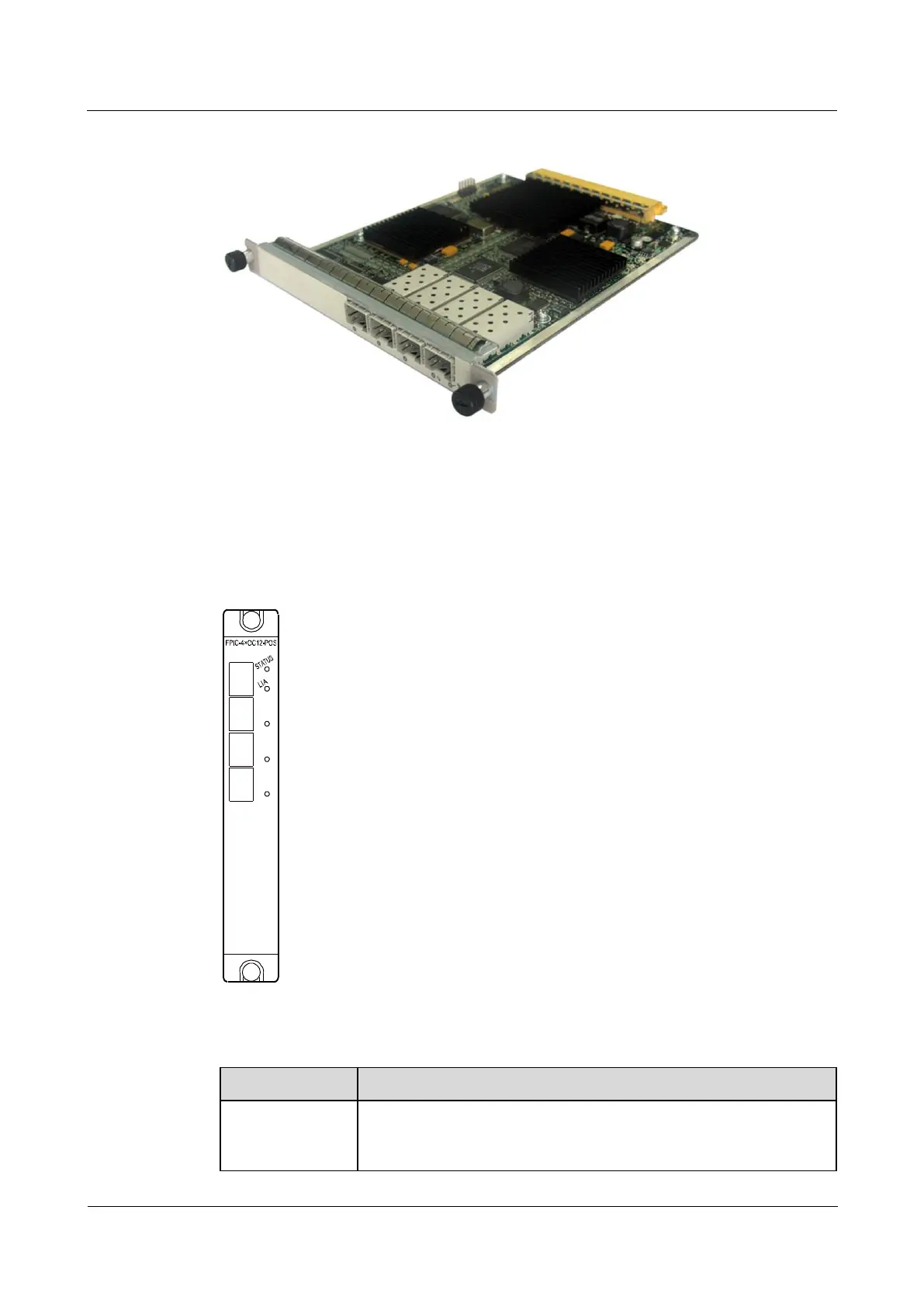

Figure 6-214 Appearance of the 4-port OC-12c/STM-4c POS-SFP FPIC
Panel
Figure 6-215 shows the panel appearance of the 4-port OC-12c/STM-4c POS-SFP FPIC.
Table 6-608 describes the indicators on the panel.
Figure 6-215 Panel appearance of the 4-port OC-12c/STM-4c POS-SFP FPIC
Table 6-608 Indicators on the panel of the 4-port OC-12c/STM-4c POS-SFP FPIC
Indicator
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
FPIC is in the alarm state.
