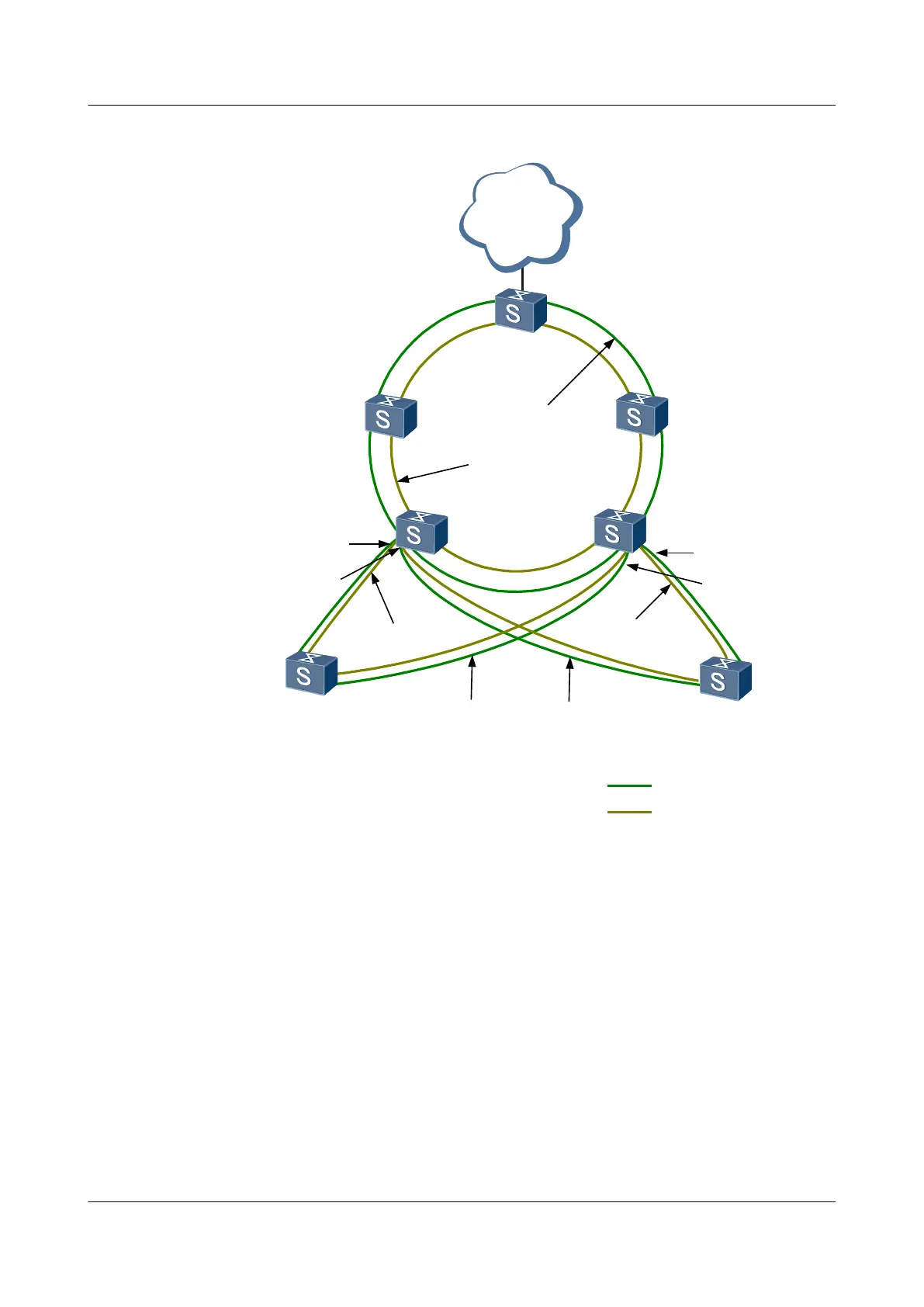

Figure 3-9 Networking diagram of crossed RRPP rings with multiple instances
UPE A
UPE B
PE-AGG
Domain 2
Domain 1
UPE C
Master 1
Master 2
CE 2
CE 1
XGE0/0/1
XGE0/0/2
XGE0/0/1
XGE0/0/2
Domain 1 ring 1
XGE0/0/1
XGE0/0/2
XGE0/0/1
XGE0/0/2
VLAN 100-300
VLAN 100-300
Backbone
network
UPE D
XGE0/0/2
XGE0/0/1
Domain 1 ring 2
Domain 1 ring 3
Domain 2 ring 1
Domain 2 ring 2
Domain 2 ring 3
Master 1
Master 1
Master 2
Master 2
XGE0/0/1
XGE0/0/1
XGE0/0/2
XGE0/0/2
Edge Assistant
XGE0/0/3
XGE0/0/4
XGE0/0/3
XGE0/0/4
Configuration Roadmap
The configuration roadmap is as follows:
1. Map instance 1 to VLANs 100 to 200. Map instance 2 to VLANs 201 to 300.
2. Add UPE A, UPE B, UPE C, UPE D, and PE-AGG to ring 1 in domain 1 and ring 1 in
domain 2.
3. Add CE1, UPE B, and UPE C to ring 2 in domain 1 and ring 2 in domain 2.
4. Add CE2, UPE B, and UPE C to ring 3 in domain 1 and ring 3 in domain 2.
5. Configure protected VLANs in domain 1 and domain 2.
6. Configure control VLANs in domain 1 and domain 2.
