351

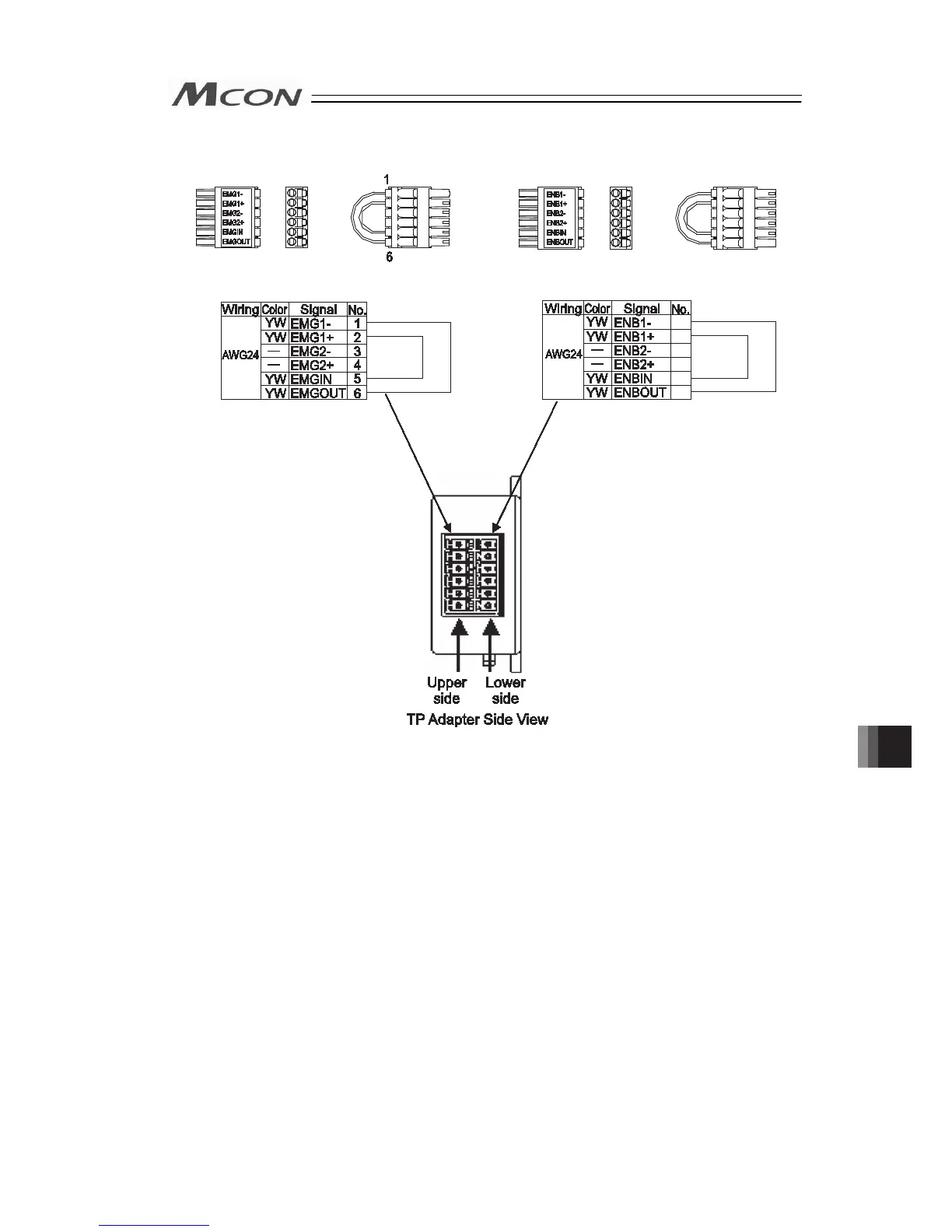

● Upper side (EMG) connector ● Lower side (ENB) connector
7
8
9
10
11
12
7
12
(3) Connection of dummy plug of TP adapter
When operating the controller with AUTO Mode, make sure to connect the enclosed dummy
plug (DP-4S).
Chapter 10 Appendix
