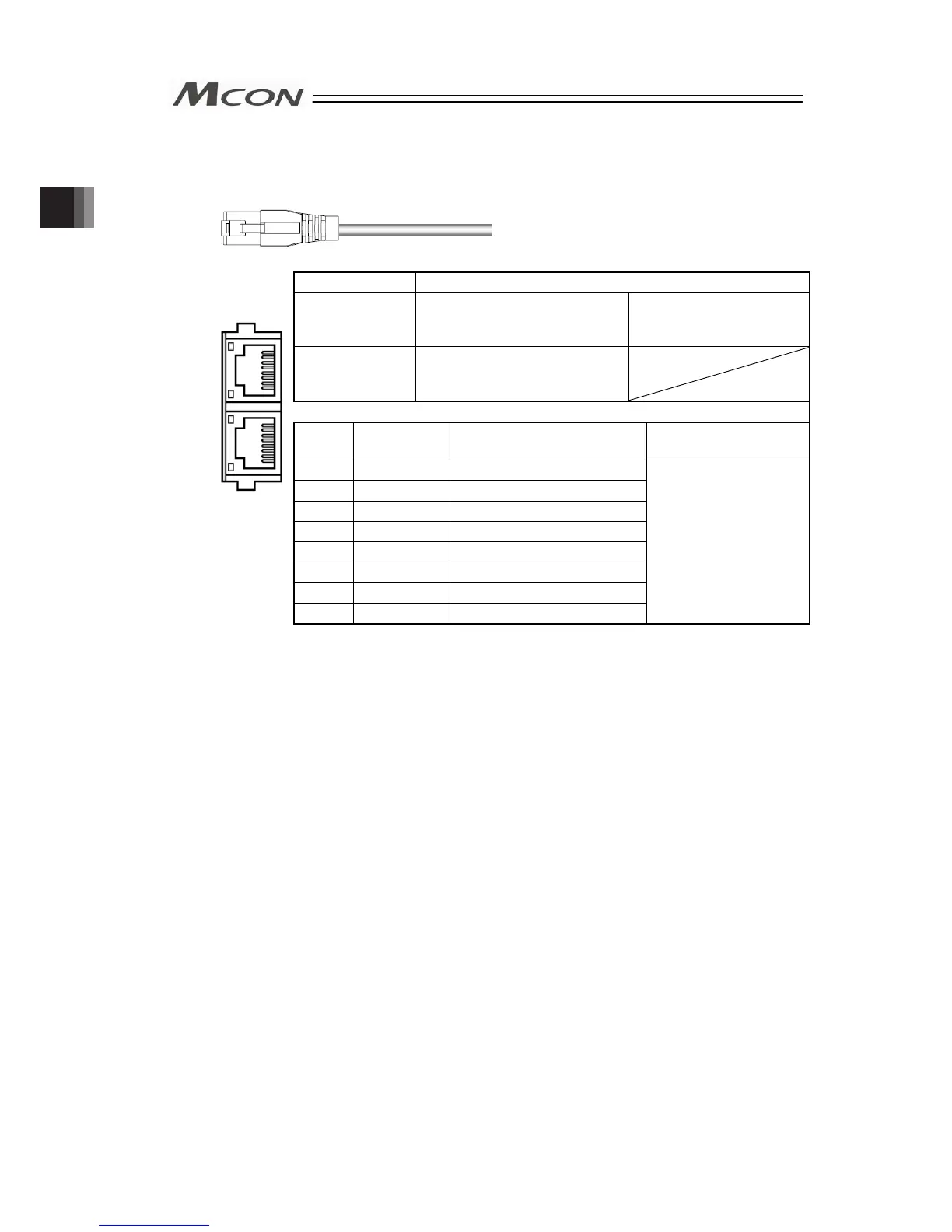

8) CC-Link IE Field Type
Connector Name CC-Link IE Field Connector
Cable Side Ethernet ANSI/TIA/EIA-568-B
Category 5e or above 8P8C
Shielded Modular Plug (RJ45)
Please prepare separately
Controller Side Ethernet ANSI/TIA/EIA-568-B
Category 5e or above 8P8C
Shielded Modular Jack (RJ45)
Pin No. Signal Name Description
Applicable cable
diameter
1 TP0+ Data 0+
2 TP0- Data 0-
3 TP1+ Data 1+
Front view of
connector on
controller side
4 TP2+ Data 2+
5 TP2- Data 2-
6 TP1- Data 1-
7 TP3+ Data 3+
8 TP3- Data 3-
It is recommended to
apply straight STP
cable categorized 5e or
above for Ethernet
cable.
(Note) There is no definition of IN and OUT for the communication port.
9) SSCNETⅢ/H Type
Refer to wiring of connector for SSCNETⅢ/H, SSCNETⅢ/H Applicable Controller
Instruction Manual (ME0352).
10) MECHATROLINK-Ⅲ Type
Refer to wiring of connector for MECHATROLINK-Ⅲ, MECHATROLINK-Ⅲ Applicable
Controller Instruction Manual (ME0317).
