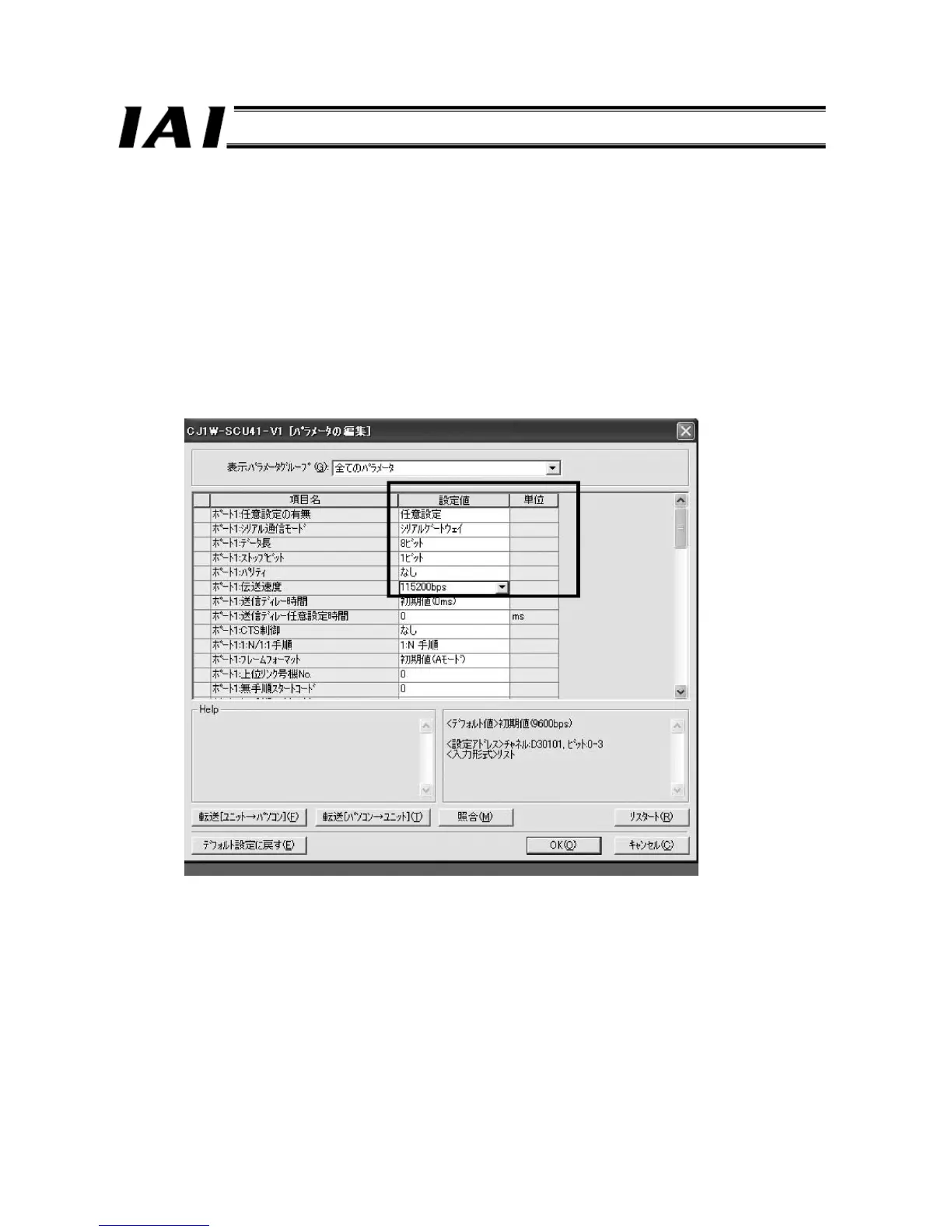

[b] When the parameter edit dialog box for the serial communication unit appears, set the communication
parameters separately for the applicable port.
The gateway unit and serial communication unit (CJ1W-SCU41-V1) are connected via the RS485 protocol.
Accordingly, the port to be used is “1” and each item is set as follows:
• Port 1 optional setting: Optional setting
• Port 1 serial communication mode: Serial gateway
• Port 1 data length: 8 bits
• Port 1 stop bit: 1 bit
• Port 1 parity: None
• Port 1 baud rate: Set the same baud rate specified for the
gateway unit.
(Example) 115200bps
• Monitoring time for serial gateway response timeout: 0 (default value)
• Monitoring time for serial gateway send start timeout: 0 (default value)
