2.1.2 Mounting on a DIN Rail

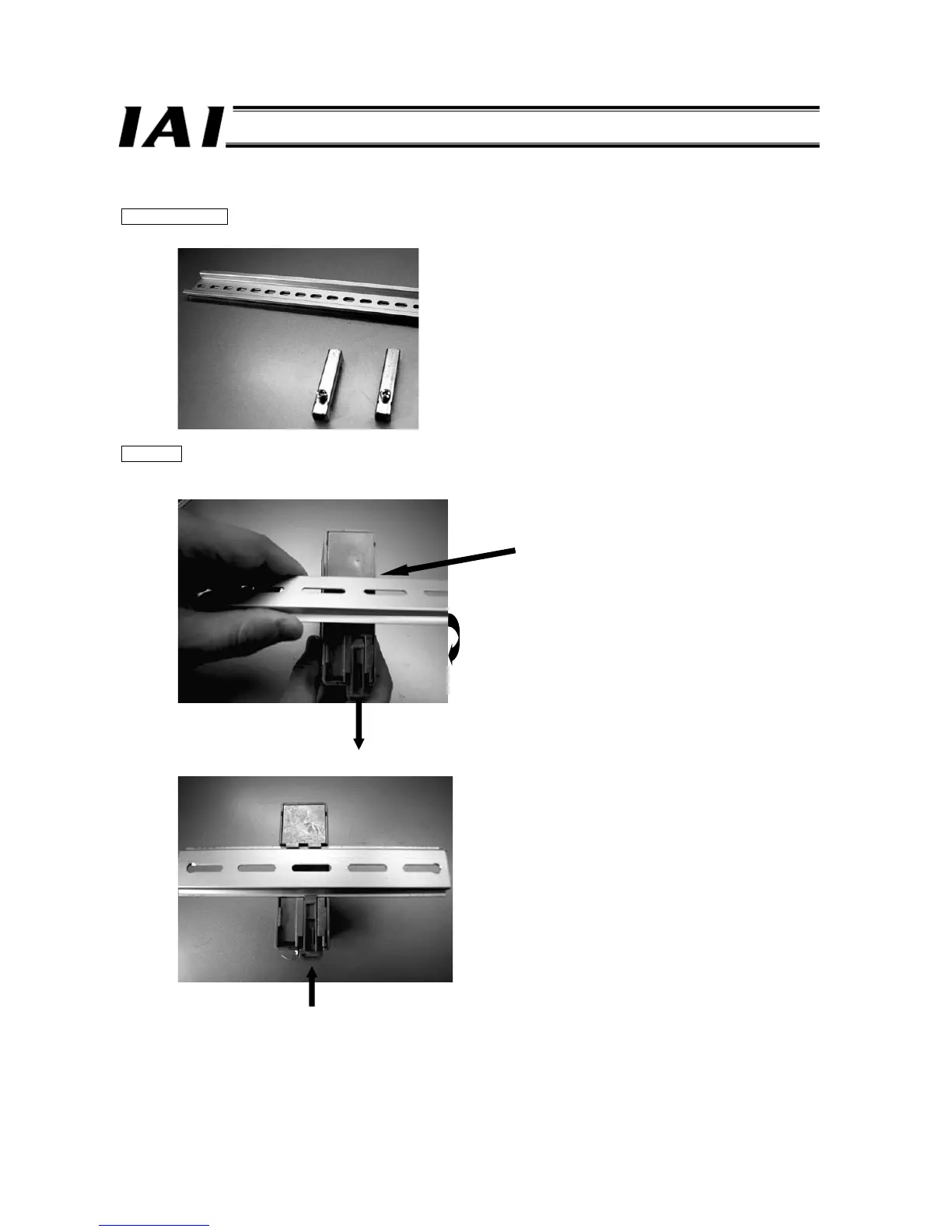

Affixing equipment
Install the ROBONET using a 35-mm DIN rail.
35-mm DIN rail
Fixtures (2 pieces)
* The DIN rail and the fixtures are provided by the customer.
Procedure
(1) “Release” the DIN-rail mounting pin provided at the back of the unit ([1]), hook the tabs on the upper side of the DIN
rail ([2]), and push in the bottom side of the rail ([3]).
(2) Lock the bottom side with the DIN-rail mounting pin.
[2]
[3]
[1]
