Direction of
air from the
internal fan
Ventilation
100
50
50

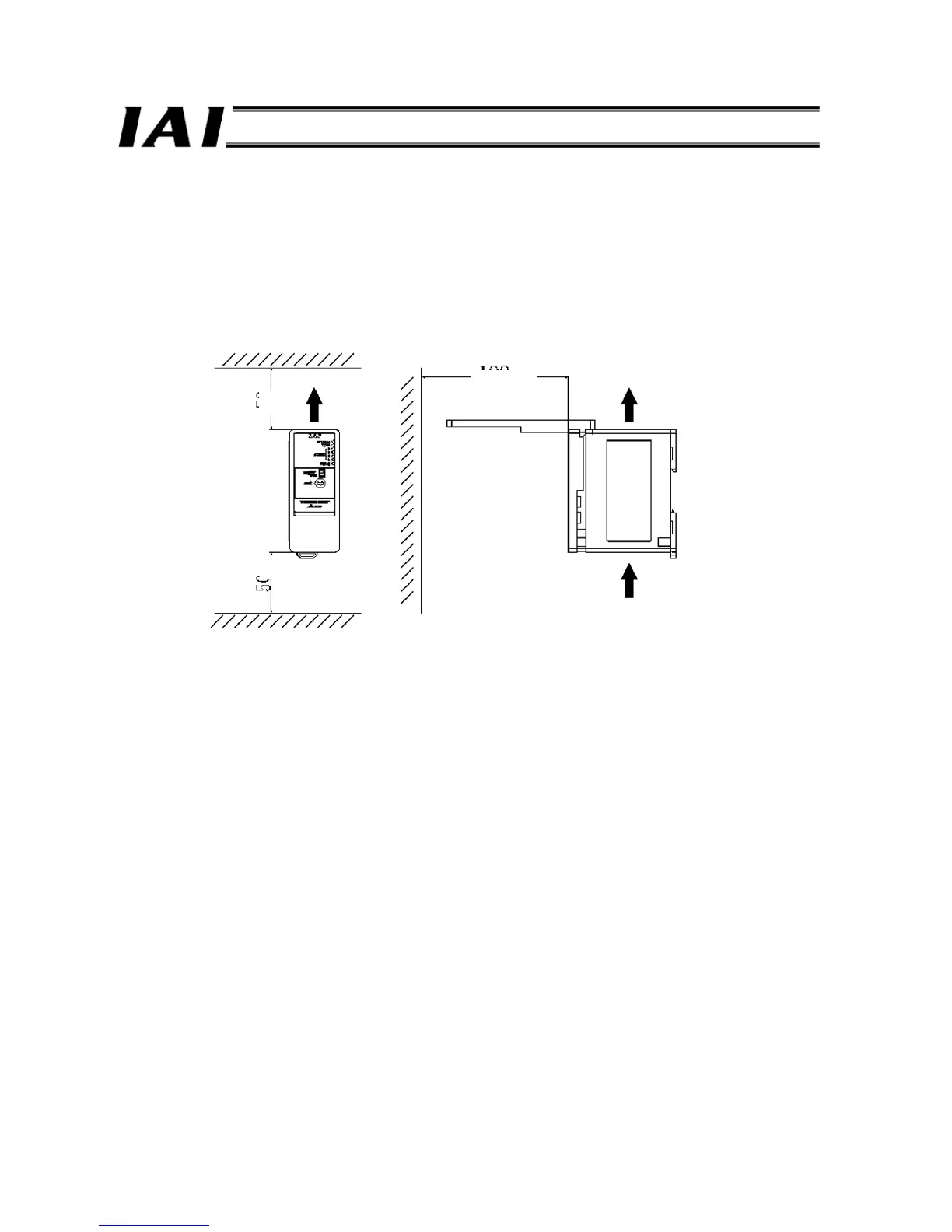

2.1.4 Installing in a Control Panel
The ROBONET must be installed using a DIN rail.
Since the ROBONET adopts natural convection cooling, provide a clearance of 50 mm or more above and below the unit, and
100 mm or more in front of the unit, by following the correct installation method explained in 2.1.1. Take note that the above
dimensions do not include wiring space. Increase the clearances by the required wiring space.
The field network cable and emergency-stop circuit cable will be connected to the top and bottom of the GateWayR unit,
respectively. The motor cable and encoder cable will be connected to the bottom of the RPCON or RACON unit, and the
encoder cable will also be connected to the bottom of the simple absolute R unit.
