IAI RoboNet - External Dimensions

191
Part 1 S
p
ecification

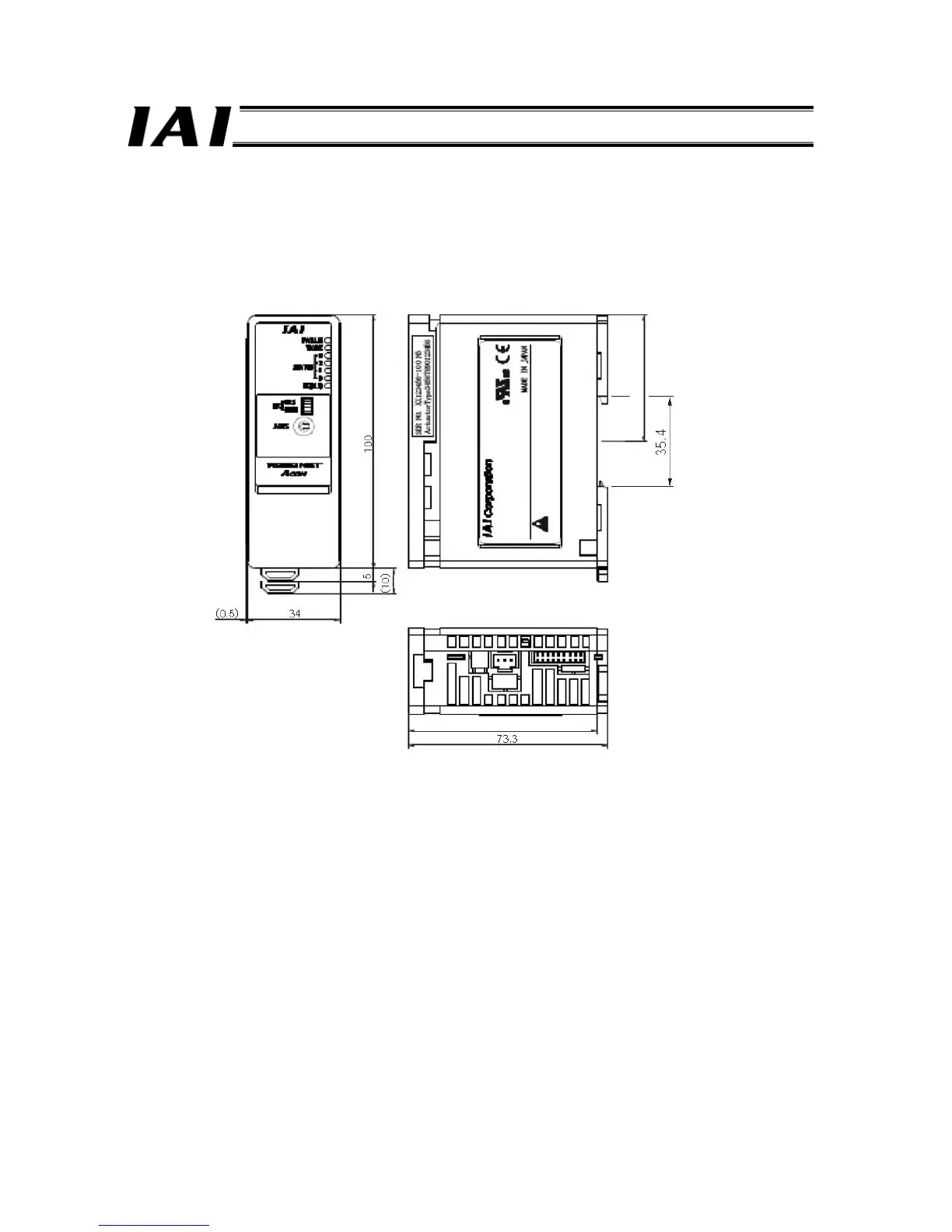

4.3.11 External Dimensions
The external dimensions are exactly the same between the RACON and RPCON.
Take note that the motor cable connector and encoder cable connector are different.
(50 from DIN rail center)
* Installable on a
35-mm DIN rail
(69.3 from DIN rail surface)
