6.3 Product Configuration
Name Model Description Application Figure
ROBONET
Extension unit
REXT
• Main unit x 1
• Power-supply connection
plate x 2
• Communication connection
circuit board x 1
• For ROBONET
multi-stage layout
• For external SIO link
Figure 1
Unit reversing set REXT-SIO
• Main unit x 2
• Power-supply connection
plate x 2
• Communication connection
circuit board x 1
• Unit link cable (standard, 1 m)
Setting of multi-stage
layout
Figure 2
Controller connection set REXT-CTL
• Main unit x 1
• Power-supply connection
plate x 2
• Communication connection
circuit board x 1
• Controller connection cable
(standard, 1 m)
Setting of external SIO link Figure 3
Unit link cable CB-REXT-SIO Cable for interconnecting
ROBONET extension units
Figure 4
Controller connection
cable
CB-REXT-CTL SIO link connection cable Figure 5

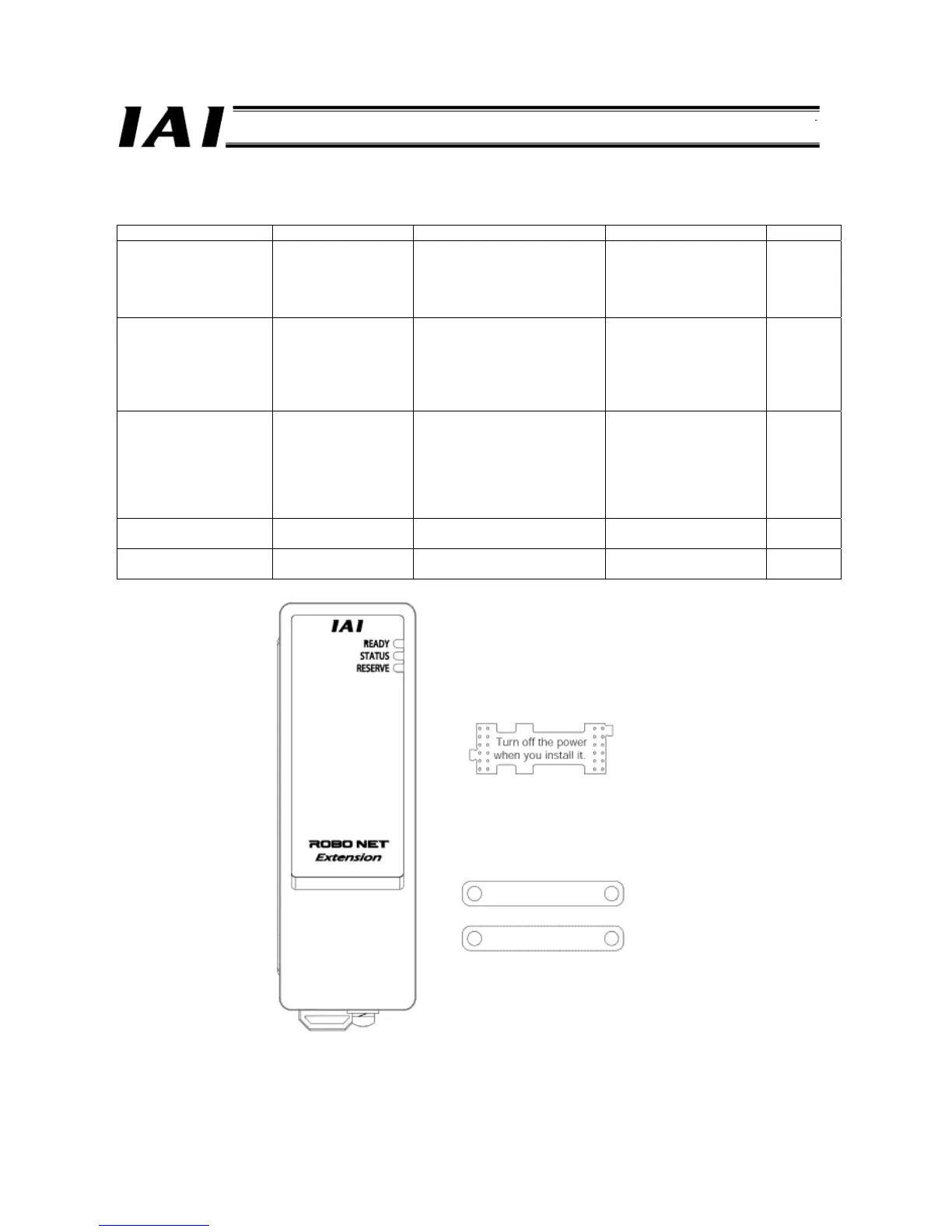

Fig.1 ROBONET Extension unit (REXT)
Communication connection
circuit board
(Model: JB-1)
Power-supply connection
plates
(Model: PP-1)
Main unit
