227
Part 1 S
p
ecification

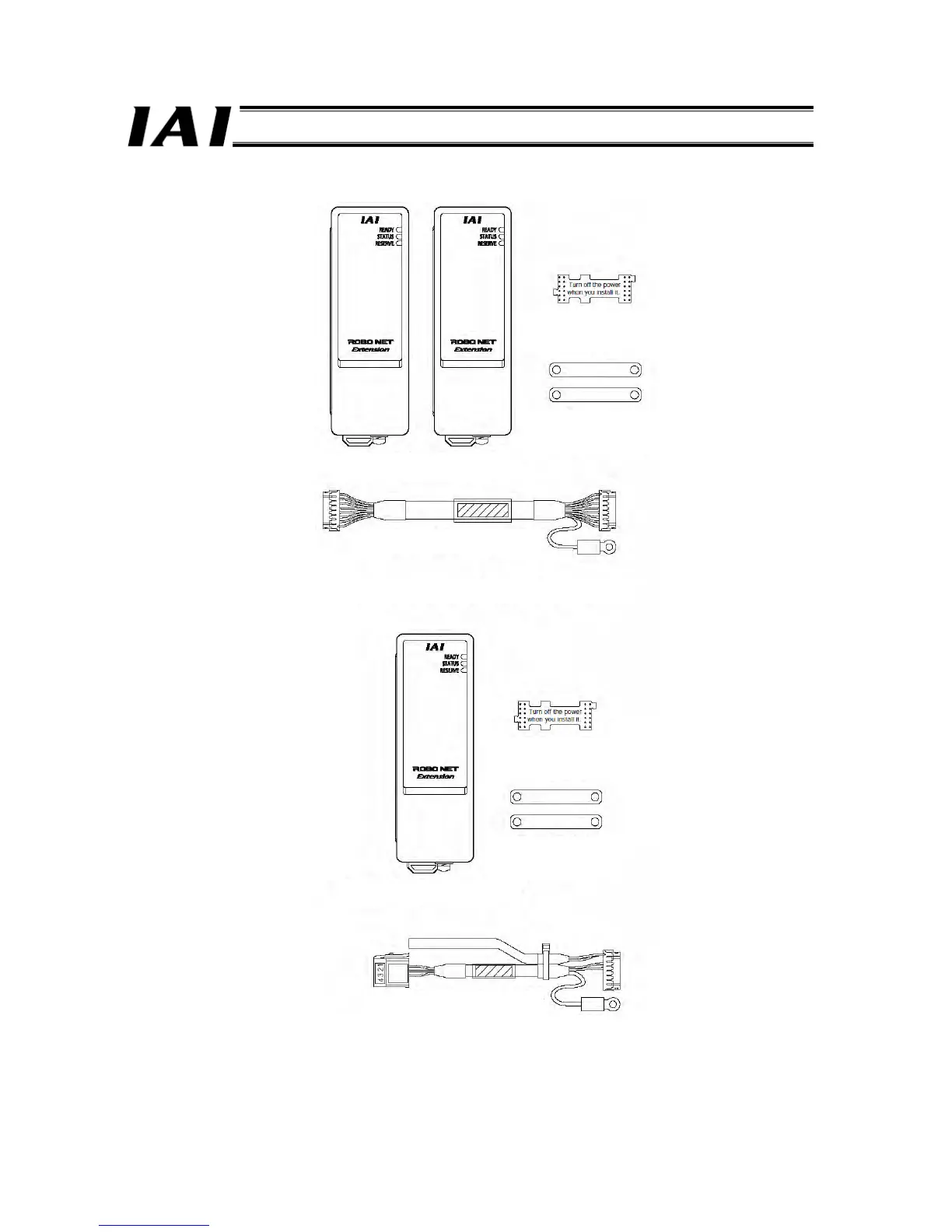

Fig 3 Controller connection set (REXT-CTL)
Communication connection
circuit board
(Model: JB-1)
Power-supply connection
plates
(Model: PP-1)
ROBONET extension unit
Unit link cable
Fig 2 Controller connection set (REXT-SIO)
Communication connection
circuit board
(Model: JB-1)
Power-supply connection
plates
(Model: PP-1)
ROBONET extension unit
Controller connection cable
