241
Part 2 Startu
p
Cha
p
te
r

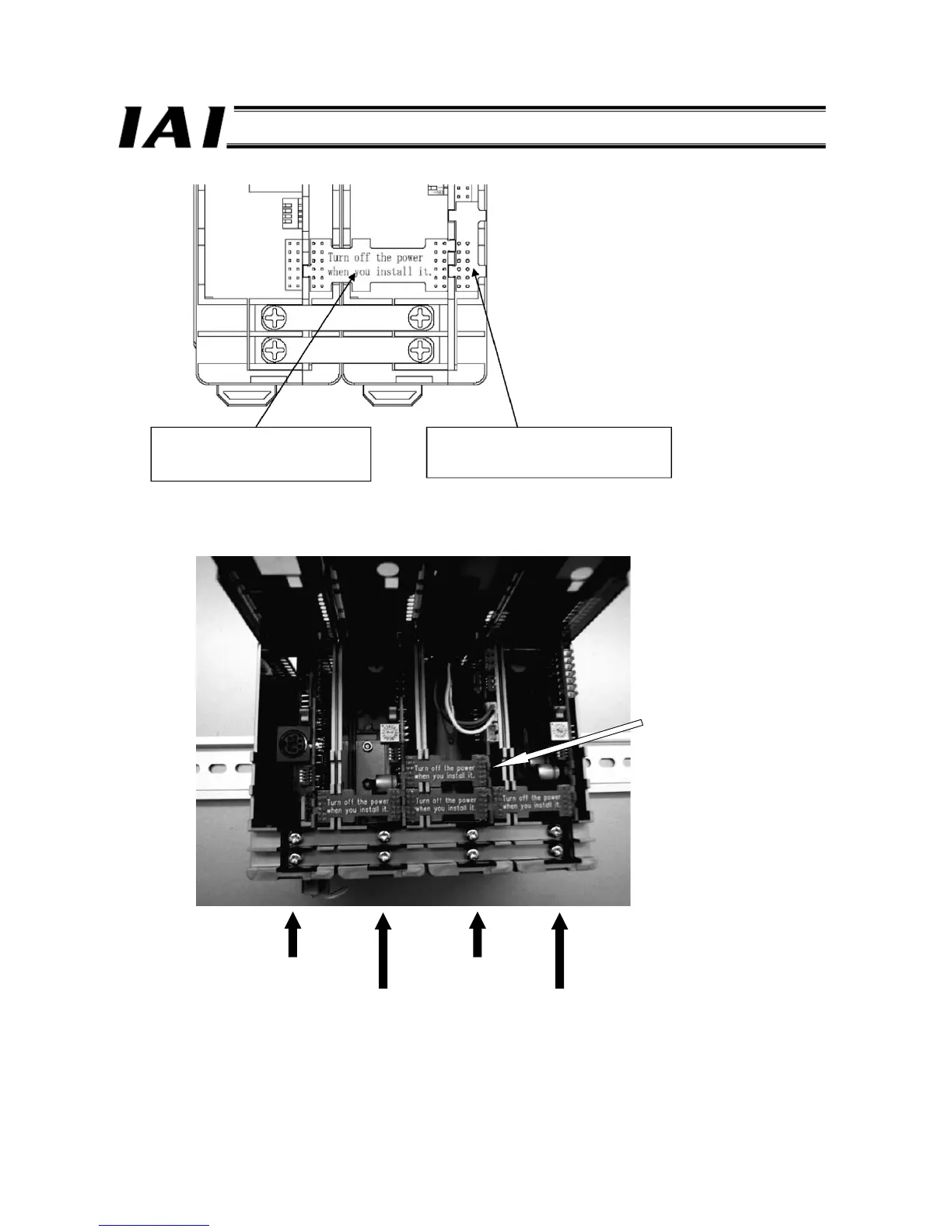

(3) Connecting a simple absolute connection board
As shown below, place the simple absolute unit on the immediate right of the applicable controller unit and connect the
two using a simple absolute connection board (same as the ROBONET communication connection board). The simple
absolute R unit comes with a simple absolute connection board.
• Unit connection board
Connects adjacent units.
•
Terminal resistor board
Installed in the unit at the far right.
Simple absolute
connection board
GateWayR unit
RPCON unit RACON unit
Simple absolute R unit
