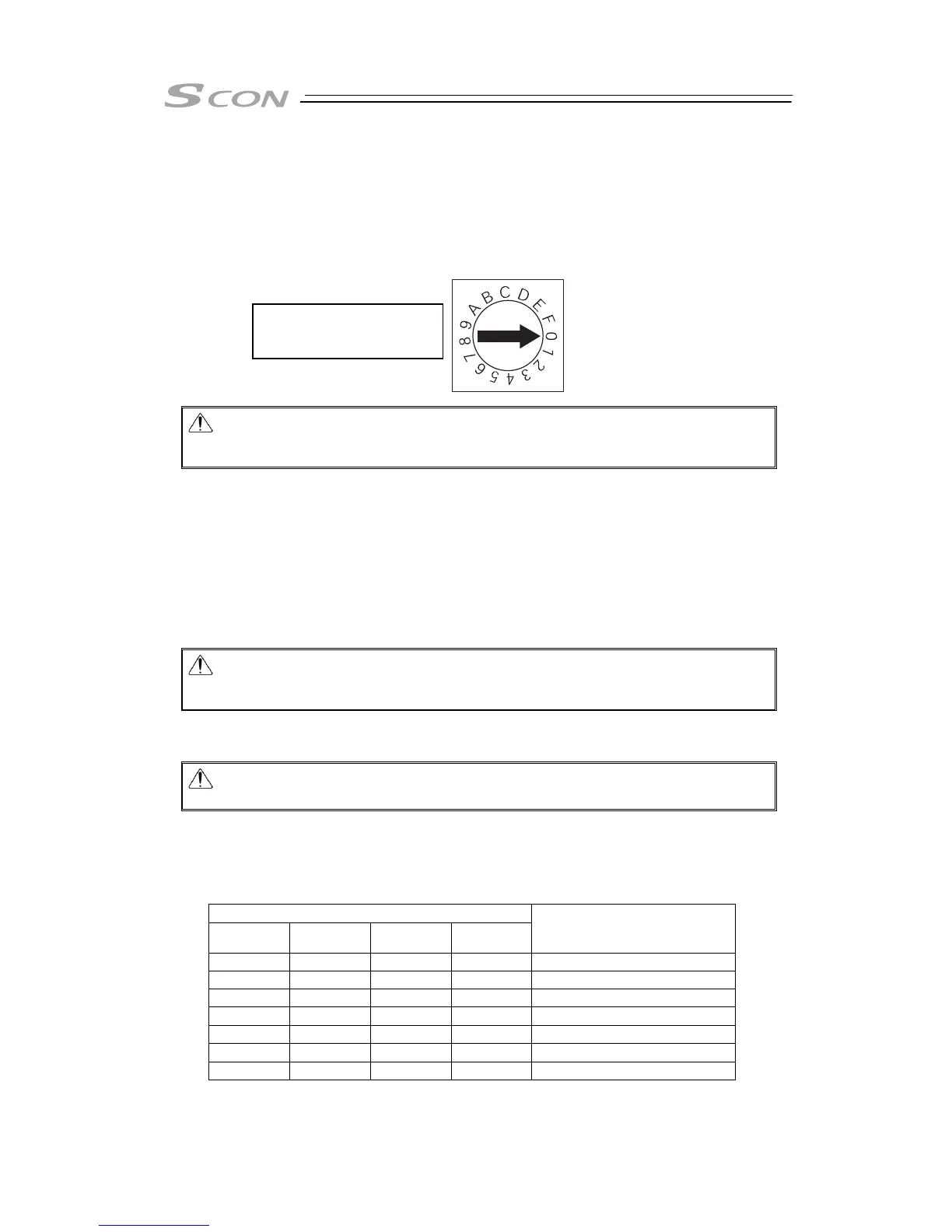

4) Axis No. Setting Switch (ADRS)
This switch is used to set an axis number in multi-axis operation through serial communication.
Using the SIO converter allows multiple axes to be controlled on a teaching tool such as a PC
without connection/disconnection of the connection cable connector. The SIO converter can
specify up to 16 axes with hexadecimal numbers 0 to F. [Refer to 10.1.3 Axis No. Setting]
The setting of the switch is read at power-on of the controller. Changing the setting after the
power-on is invalid.
Caution: Note duplicate axis number setting, which causes a communication error
(alarm code 30C: no connection axis error) to occur and disables normal
communication.
5) Piano Switch
Not to use.
6) Motor Connector (MOT) [Refer to 2.2.3 [4] Motor • Encoder Circuit]
It is a connector to connecting the motor encoder cable of the actuator.
7) Regenerative Unit Connector (RB) [Refer to 2.2.3 [6] Circuit of Regenerative Units]
It is a connector to connecting regenerative unit.
8) Internal Regenerative Resistor Valid Connector
Short-circuit cable is connected at delivery.
Caution: Make sure to use the unit in the condition that the short-circuit cable is
connected.
Use the unit without this connected may damage the device.
9) Charge Status Display LED
It shows the status of electric charge in the controller.
Caution: While this LED lamp is on, do not attempt to touch controller or
regenerative resistor units to prevent electric shock.
10) Status Indicator LED (PWR, SV, ALM and EMG)
Following show the controller operation status:
{: Illuminating ×: OFF ∆: Undefined (flashing or OFF)
LED
PWR
(Green)
SV
(Green)
ALM
(Orange)
EMG
(Red)
Operation Status
× × × × Control power supply OFF
{
× × × Controller in normal startup
{
× × × Servo OFF
{
{
(Note 1)
× × Servo ON
{
×
{
∆
Alarm being generated
{
×
∆
{
In emergency stop condition
{
∆ ∆ ∆
Warning being generated
Note 1 Blinking in auto servo-OFF state
