iSeries Model 830
iSeries Model 830
A minimum functional server consists of the base server unit
and selected priced features. Included in the base server are
the physical package and power elements, a DASD controller,
an I/O controller, and a #9771 Base PCI 2-Line WAN with
Modem as follows:
• System Unit (CEC) and #9074 Base I/O Tower
• Linecord features
• Main Storage Expansion Card (slot M02) (CCIN 2881)
• Bus Expansion/Clock Card: Specify one of the these
features:
– #9777 Base HSL Ports - 8 Copper: Specify with
processor #2400
– #9774 Base HSL Ports - 2 Optical/6 Copper: Specify
with processor #2400
– #9752 Base HSL Ports - 8 Copper: Specify with processors #2402, #2403, and #2351
– #9758 Base HSL Ports - 2 Optical/6 Copper: Specify with processors #2402, #2403,
and #2351
• PCI and CSP Card (CCIN 28AA)
• Bus Adapter (CCIN 2681)
• Operator Panel with key stick (CCIN 247A)
• #9074 Base I/O Tower
• #9943 Base PCI IOP
– Provides support for #9778 Base PCI RAID Disk Unit Controller
Provides support for up to 15 Disk Units, the required CD-ROM/DVD-RAM, and a
feature Internal Tape or a feature CD-ROM/DVD-RAM.
– Provides support for base Console/Workstation IOA
The configurator will determine which feature combinations will be on the order based
on the System Console specify – #5540, #5544, #5546 or #5548.
These
required
features
must be
ordered:
• Processor (one must be specified)
– #2400 2-way processor (iStar 400 Mhz) (1850 CPW)
– #2402 4-way processor (iStar 540 Mhz) (4200 CPW)
– #2403 8-way processor (iStar 540 Mhz) (7350 CPW
Requires #2881 Main Storage Expansion (Slot M05)

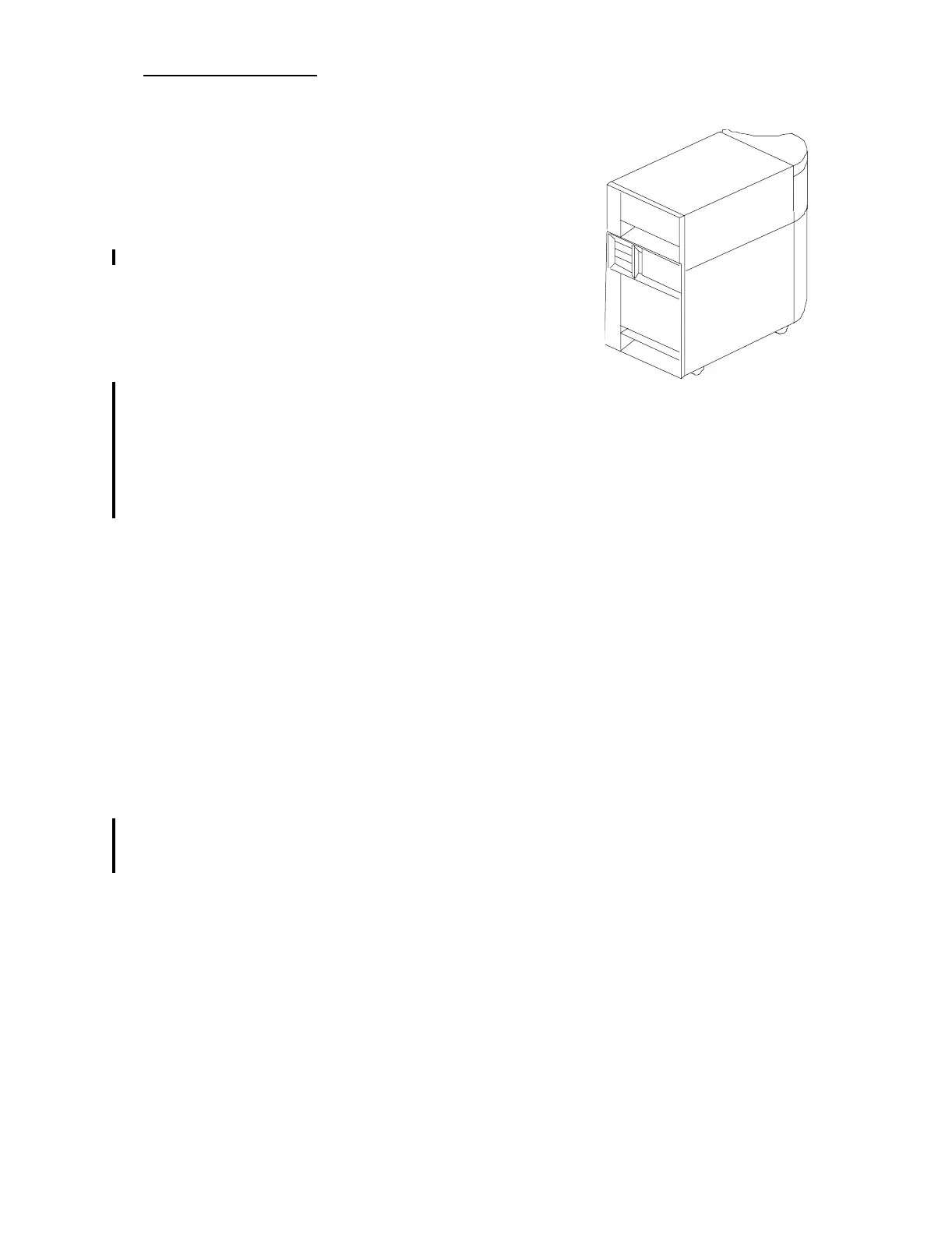

iSeries Model 830 System Unit
