iSeries Model SB3

A minimum functional server consists of the base server unit

and selected priced features. The Model SB3 supports Hot

Plug/Concurrent Add of PCI cards, disk units, and

removable media devices. Included in the base server are

the physical package and power elements, a DASD

controller, an I/O controller, 16384 MB or 24576 MB of main

storage, and a #9771 Base PCI 2-Line WAN with Modem as

follows:

• System Unit (CEC) and #9079 Base I/O Tower

• Line cord Features (one for the system unit and one

for the #9079)

• Clock Card (CCIN 25AA)

• Clock Daughter Card (CCIN 25AF)

• Terminator/Filler Card (CCIN 246C) (2X)—12 way only

(processor #2316)

• Power

• Main Storage

– Main storage cards (CCIN 319A) are shipped as base with each SB3 (CCIN 319A is

128 Mb technology).

– The number of main storage cards shipped is determined by the processor selected.

– Processor #2316

8X 2048 MB Main Storage Cards (CCIN 319A) installed (16384 MB total)

– Processor #2318

12X 2048 MB Main Storage Cards (CCIN 319A1) installed (24576 MB total)

• #9755 Bus Expansion/Clock Card—16 HSL Ports (CCIN 25AD)

• PCI and CSP Card (CCIN 28AA)

• Bus Adapter (CCIN 2681)

• Operator Panel (CCIN 247A)

• #9943 Base PCI IOP

– Provides support for #9778 Base PCI RAID Disk Unit Controller

Provides support for eight disk units, the required CD-ROM/DVD-RAM, and a feature

internal tape or a feature CD-ROM/DVD-RAM.

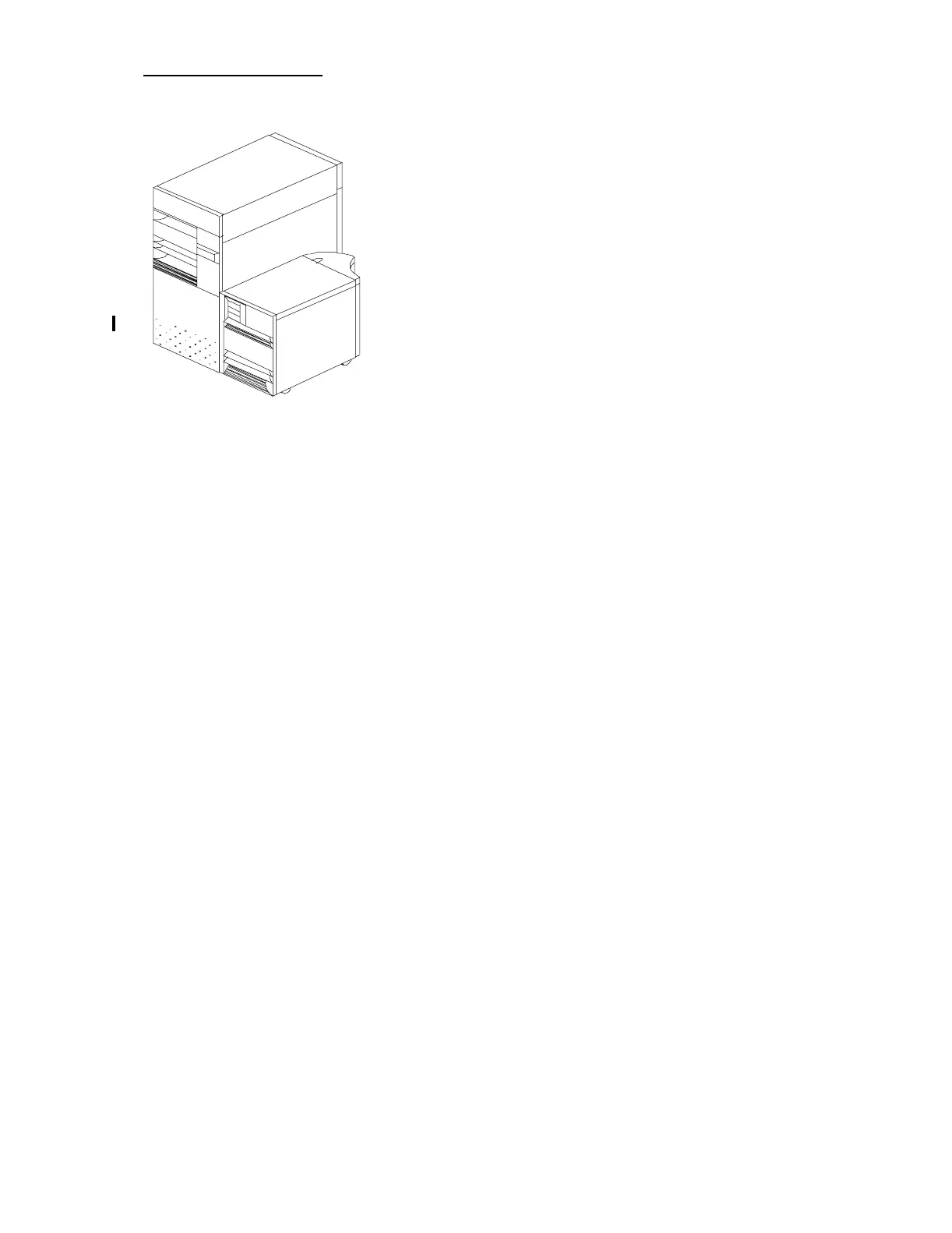

iSeries Model SB3 System Unit
