iSeries Model 840
iSeries Model 840
A minimum functional server consists of the base server unit
and selected priced features. Included in the base server are
the physical package and power elements, a DASD
controller, an I/O controller, and a #9771 Base PCI 2-Line
WAN with Modem as follows:
• System Unit (CEC) and #9079 Base I/O Tower or #8079
Optional Base I/O Rack
• Linecord Features (one for the system unit and one for
the #9079 or two for the #8079)
• Clock Card (CCIN 25AA)
• Clock Daughter Card (CCIN 25AC)
• Terminator/Filler Card (CCIN 246C) (Two on the #2352
and one on the #2353)
• PCI and CSP Card (CCIN 28AA)
• Operator Panel with key stick (CCIN 247C)
• #9079 Base I/O Tower or #8079 Optional Base I/O Rack
• Bus Expansion Card, specify one of these features:
– #9755 Base HSL Ports - 16 Copper
– #9759 Base HSL Ports - 4 Optical/12 Copper
• Bus Adapter (CCIN 2691)
• #9943 Base PCI IOP
– Provides support for #9778 Base PCI RAID Disk Unit Controller
Provides support for up to 15 Disk Units, the required CD-ROM, and a feature Internal
Tape or a feature CD-ROM
– Provides support for a base Console/Workstation IOA
The configurator determines which feature combinations will be on the order based on
the System Console specify #5540, #5544, #5546, or #5548
These features are required:
• Processor (one must be specified)
– #2352 Model 840 8/12-Way POD (SStar 600 Mhz) (9000/12000 CPW)
– #2353 Model 840 12/18-Way POD (SStar 600 Mhz) (12000/16500 CPW)

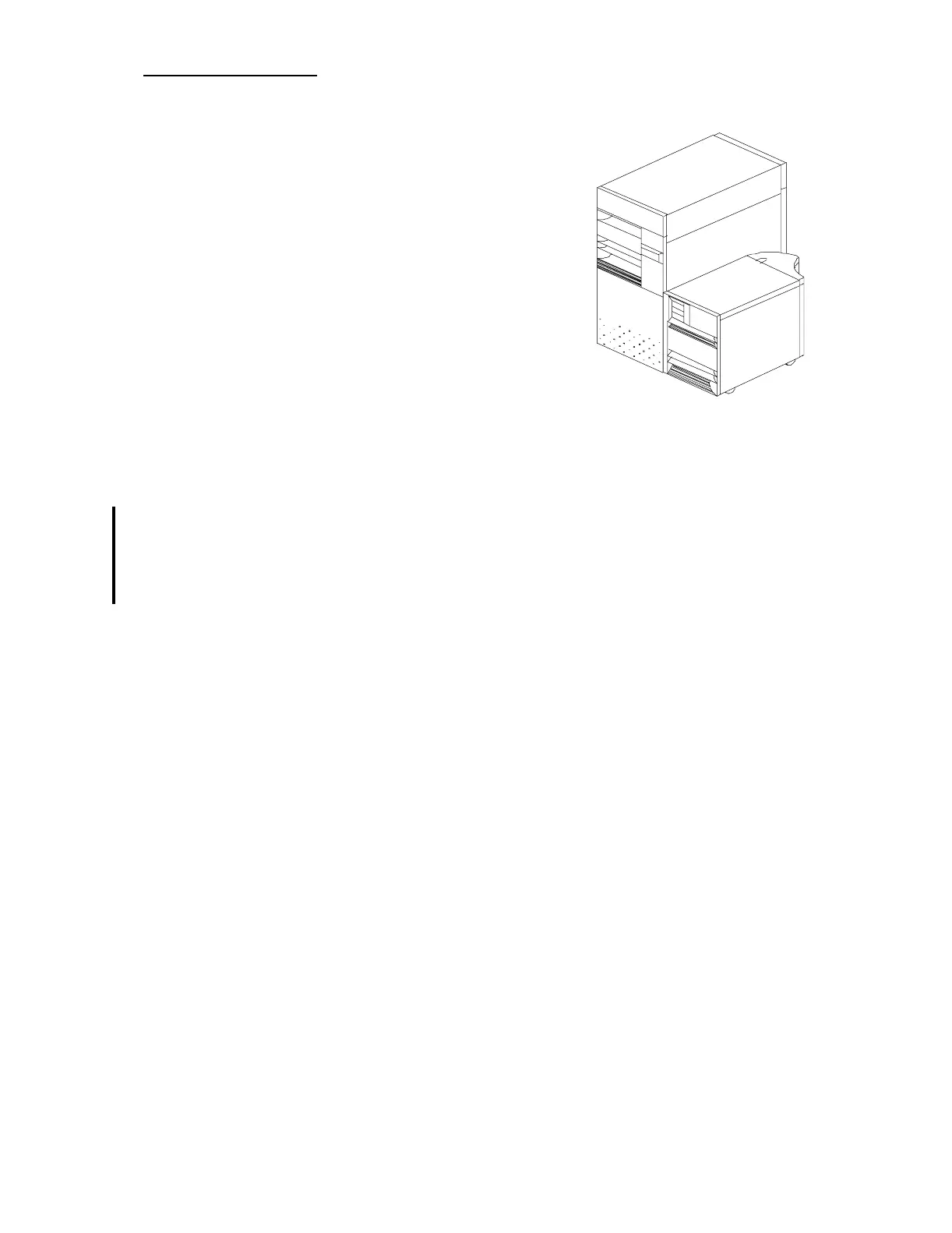

iSeries Model 840 System Unit
