iSeries Model 820
iSeries Model 820
A minimum functional server consists of the base server unit and
selected priced features. Included in the base server are the
physical package and power elements, a DASD controller, an I/O
controller, and a #9771 Base PCI 2-Line WAN with Modem as
follows:
• Operator Panel without key stick
• Base DASD Cage (CCIN 283F)(six Internal Disk slots,
concurrent maintenance allowed)
• Twelve PCI card slots (card hot-plugging allowed)
• One Removable Optical slot (CD-ROM/DVD-RAM)
• One Removable Media slot (CD-ROM/DVD-RAM/tape)
• Embedded Base PCI IOP (CCIN 284C)
Provides support for maximum of up to four IOAs including:
– Support for base #9767 Base PCI Disk Unit Controller
Provides support for up to four Disk Units, the required CD-ROM/DVD-RAM, and
either a feature Internal Tape or a feature CD-ROM/DVD-RAM. However, because
RAID is default, the configurator will default the #4778 PCI RAID Disk Unit Controller,
which supports the above, and in addition, provides RAID support for up to 12 Disk
Units in the 820 system unit. The #4778 can support up to 18 disk units, but there is
only space for 12 in the 820 system unit.
– Support for optional #2763 or #4778 PCI RAID Disk Unit Controllers.
Provides support for up to 12 Disk Units, the required CD-ROM/DVD-RAM, and
either a feature Internal Tape, feature CD-ROM, or feature DVD-RAM.
– Support for base Console/Workstation IOA
• The configurator will determine which feature combinations will be on the order
based on the System Console specify – #5540, #5544, #5546 or #5548.
• The console on LAN options require a dedicated LAN adapter. A #0367
Operations Console PCI Cable will also be added to the order by the marketing
configurator. One #0367 Operations Console PCI Cable is required for Console
on LAN.
• #5540 – System Console on Twinax WS
#4746 PCI Twinaxial IOA
• #5544 System Console on #9771 WAN Adapter
#0367 Operations Console PCI Cable

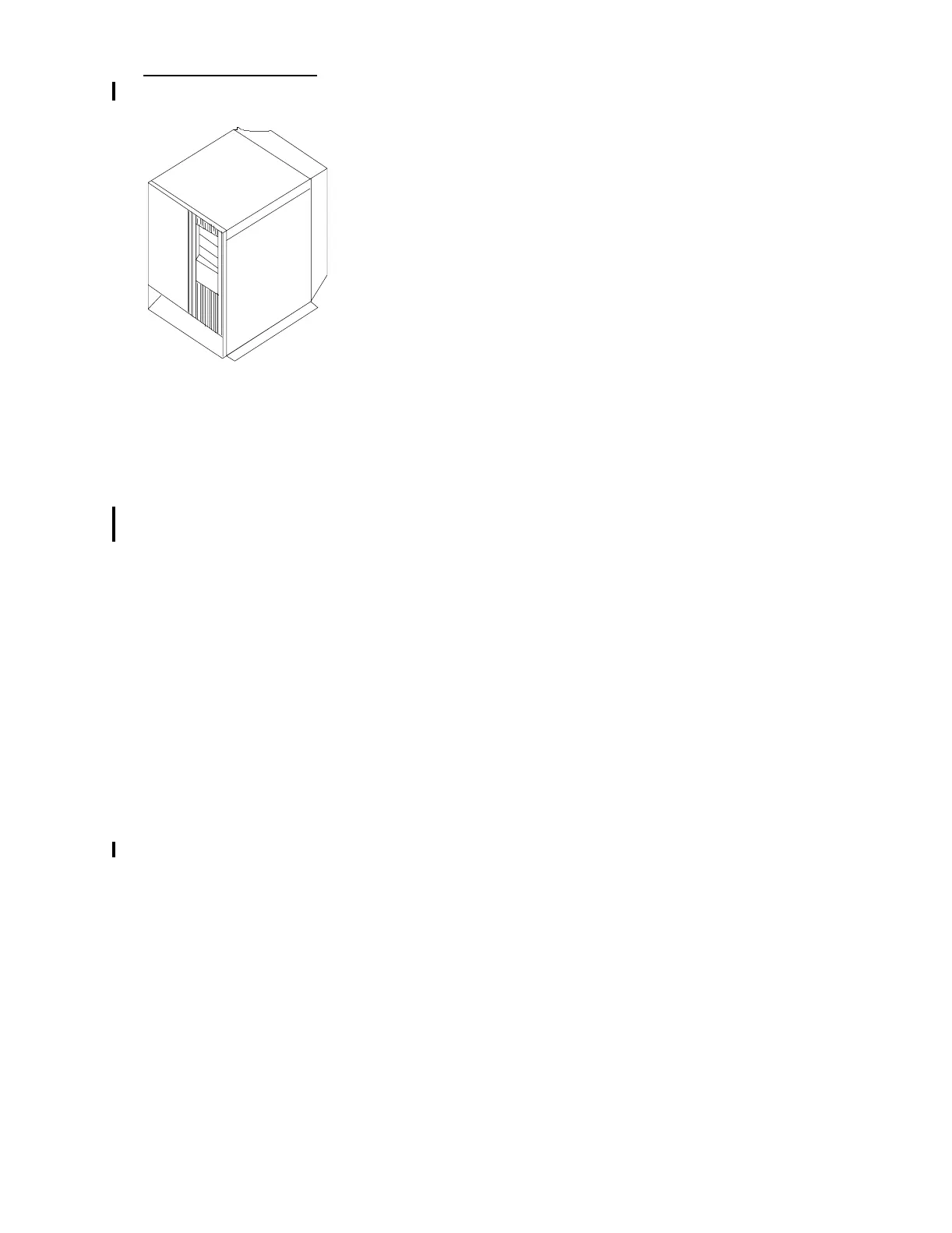

iSeries Model 820 System Unit
