#7002 HSL Enabler
The #7002 is a feature High Speed Link (HSL) internal flex cable, which enables connection
to a #5075 PCI Expansion Tower. It can be ordered only on the Model 270 with processor
#2248, #2250, #2422 and #2431.
This cable connects the processor using a right angle bus connector to the back of the
machine. Two HSL cables (#14XX) are required to connect the system unit to the expansion
tower.
On processor upgrades from #2248, #2250, #2422, or #2431 to other processor features,
marketing configurators RPO remove the #7002 to remove this feature from the inventory
records.

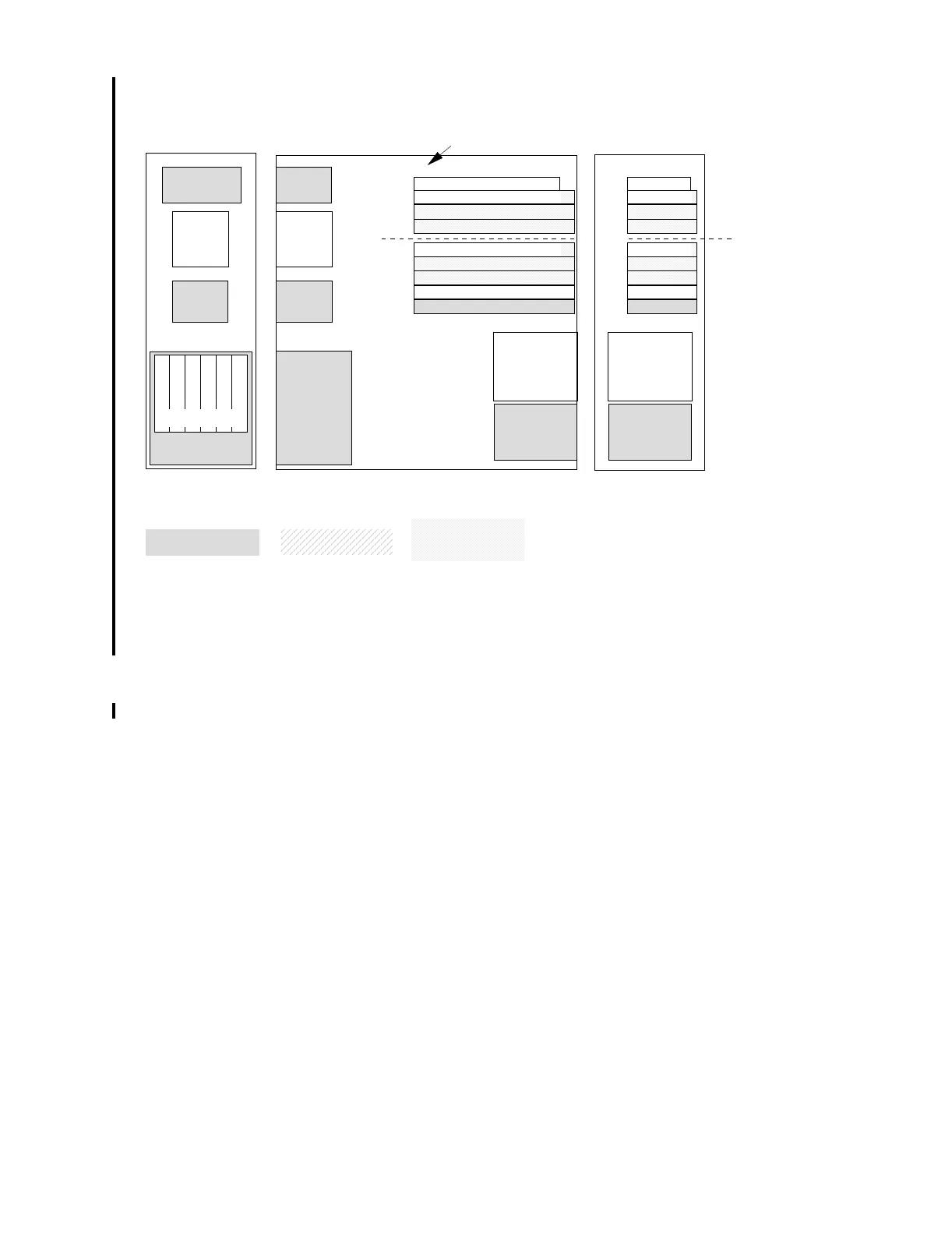

#5075 PCI Expansion Tower
Right
Back
575W
Power Supply
#5156
PO2
Fan
B01
Fan
#5156
B02
OP Panel
Front
Fan
B01
OP Panel
Fan
#5156
B02
Disk Unit
Cage
DB1
575W
Power Supply
PO1
575W
Power Supply
PO1
575W
Power Supply
#5156
PO2
DISK SLOTS
D06 D05 D04 D03 D02 D01
1 Embedded IOP
5,6 IOP/IOA
3,4 IOP/IOA/Int. xSeries Svr.
2 DISK IOA
PCI Cards
7,8 IOA
7,8 IOA
Short
5,6 IOP/IOA
3,4 IOP/IOA
1,2 IOP/IOA/Int. xSeries Svr.
Multi-
Adapter
Bridge
Boundary
#
Multi-Adapter Bridge
Bus Number
C04
C02
C03
C05
C06
C07
EMBED
C01
Slots
PCI
PCI
PCI
DISK IOA
PCI
PCI Short
PCI
PCI
PCI
Multi-
Adapter
Bridge
Boundary
C08
Legend
Base Feature Required Feature
Unavailable if
Integrated xSeries
Server is installed
Note 1:
If C05 has an Integrated xSeries Server,
slot C06 is unavailable, and slot C07 is available
only as a short slot.
Note 2: If C02 has an Integrated xSeries Server,
slot C03 is not available and slot C04 is available
only as a short slot.
