Chapter 3. Central processor complex system design 93
Program results
The OoO execution does not change any program results. Execution can occur out of
(program) order, but all program dependencies are honored, ending up with the same results
of the in-order (program) execution.
This implementation requires special circuitry to make execution and memory accesses

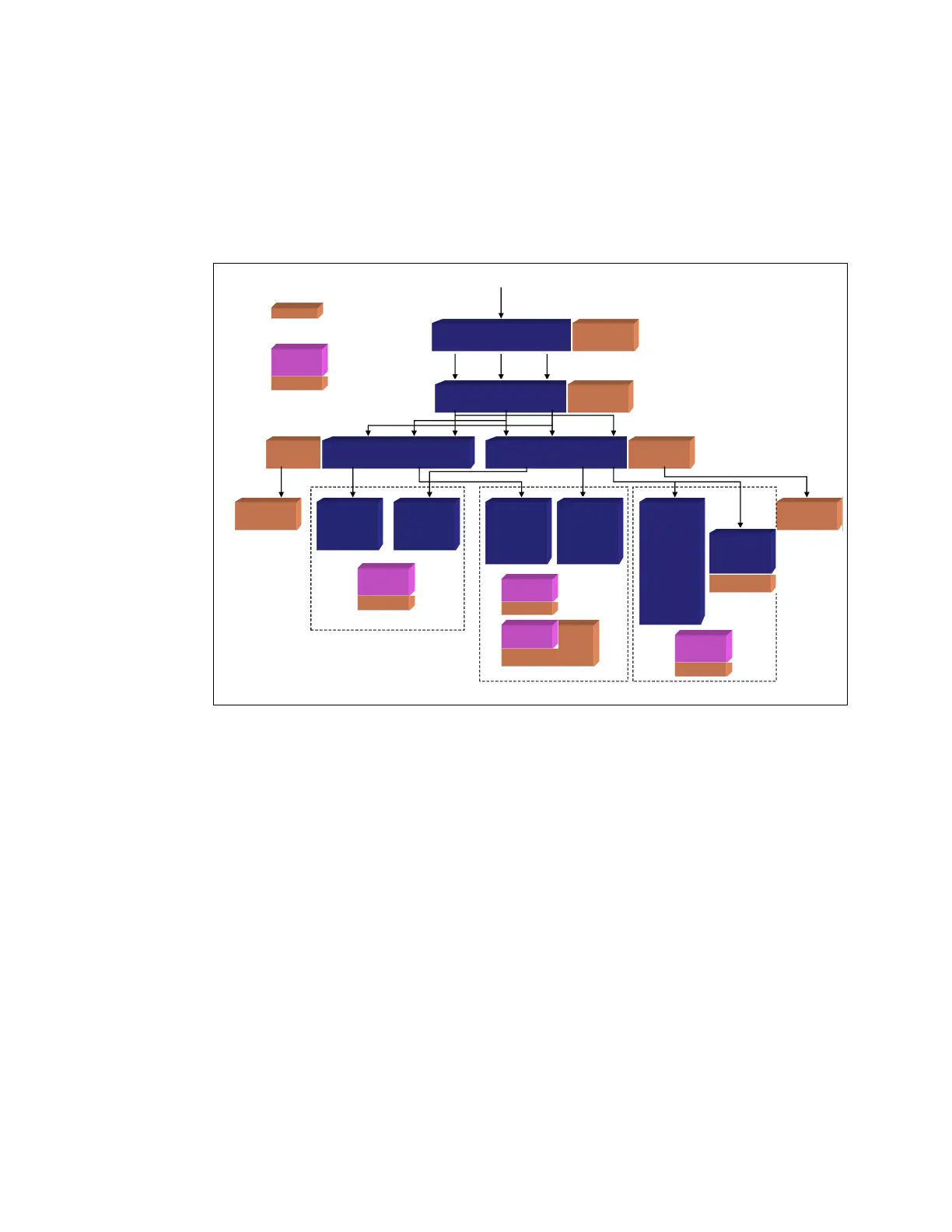

display in order to the software. The logical diagram of a z13s core is shown in Figure 3-9.
Figure 3-9 z13s PU core logical diagram
Memory address generation and memory accesses can occur out of (program) order. This
capability can provide a greater use of the z13s superscalar core, and can improve system
performance.
