40 IBM z13s Technical Guide
z13s servers can have up to two CPC drawers installed (the minimum is one CPC drawer).
The contents of the CPC drawer and its components are model dependent. The Model N10
CPC drawer that is shown in Figure 2-4 has a single node, half the structure of the Model N20
CPC drawer that has two nodes.

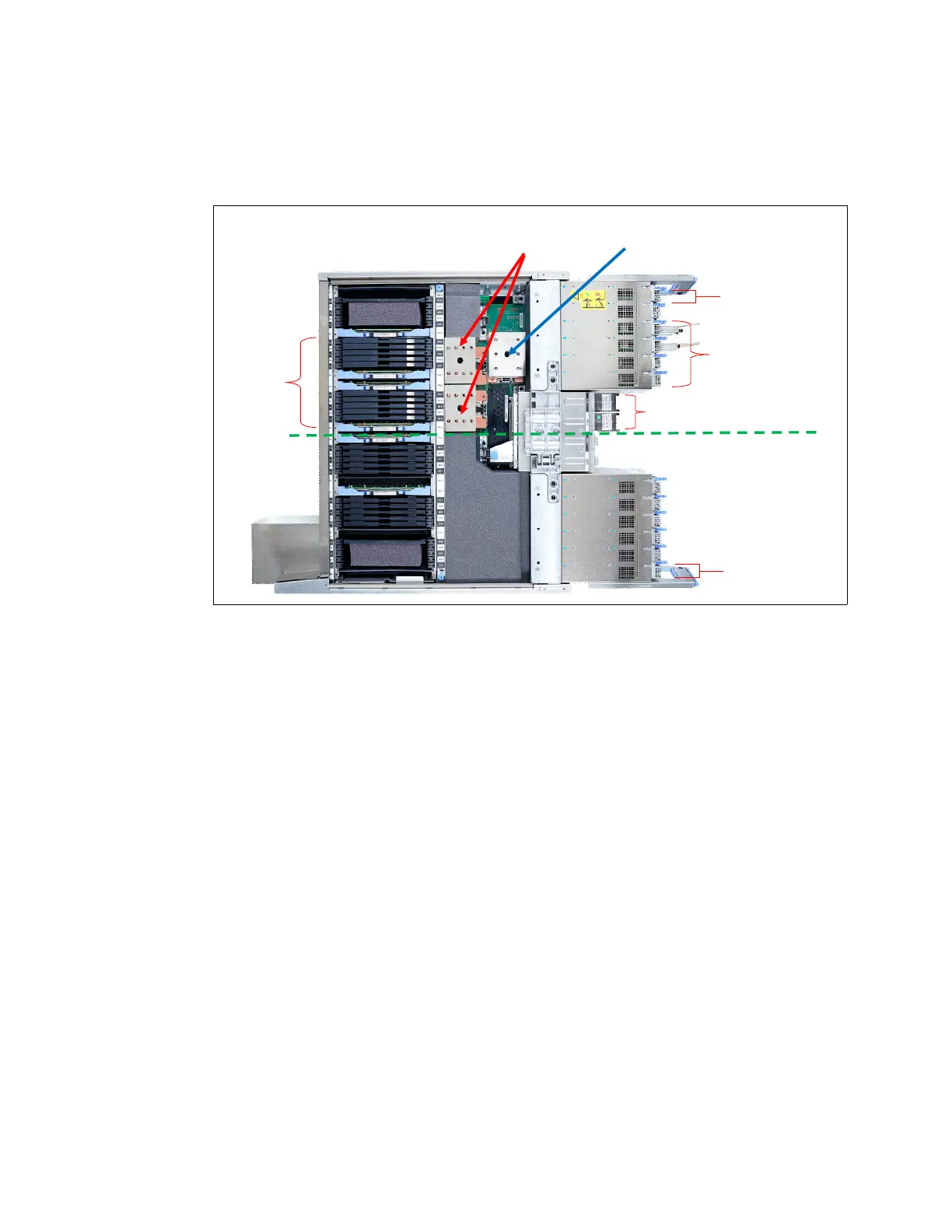

Figure 2-4 Model N10 components (top view)
򐂰 Single node drawer contains (Figure 2-4):
Two PU chips up to 13 active cores.
One SC chip (480 MB L4 cache).
Four PCIe fanout slots.
Two InfiniBand fanout slots.
One memory controller per PU chip.
Five DDR3 DIMM slots per memory controller.
Two Flexible Support Processors (FSPs).
Node 1 resources (SCMs, memory, and fanouts) are not installed in the Model N10.
򐂰 Two node drawer contains (Figure 2-5 on page 41):
Four PU chips, up to 26 active PUs
Two SC chips (960 MB L4 cache)
Eight PCIe fanout slots
Four InfiniBand fanout slots
One memory controller per PU chip
Five DDR3 DIMM slots per memory controller
Two FSPs
10
Memory
DIMMS
InfiniBand
fanout slots (x2)
NODE 0
PCIe fanout
slots (x4)
Front
Rear
2x PU SCMs
(air cooled)
1x SC SCMs
(air cooled)
FSP
FSP
NODE 1
not populated
