392 IBM z13s Technical Guide

After you get to the IBM Knowledge Center, click z Systems, and then click z13s.

11.2.2 Rack-mounted HMC

Feature codes (FC) 0094 and FC 0096 provide a rack-mounted HMC. They cannot be

ordered as a feature code for zEC12, zBC12, or previous z Systems servers.

The HMC is a 1U IBM server and comes with an IBM 1U standard tray containing a monitor

and a keyboard. The system unit and tray must be mounted in the rack in two adjacent 1U

locations in the “ergonomic zone” between 21U and 26U in a standard 19” rack.

The customer must provide the rack. Three C13 power receptacles are required: Two for the

system unit and one for the display and keyboard, as shown in Figure 11-3.

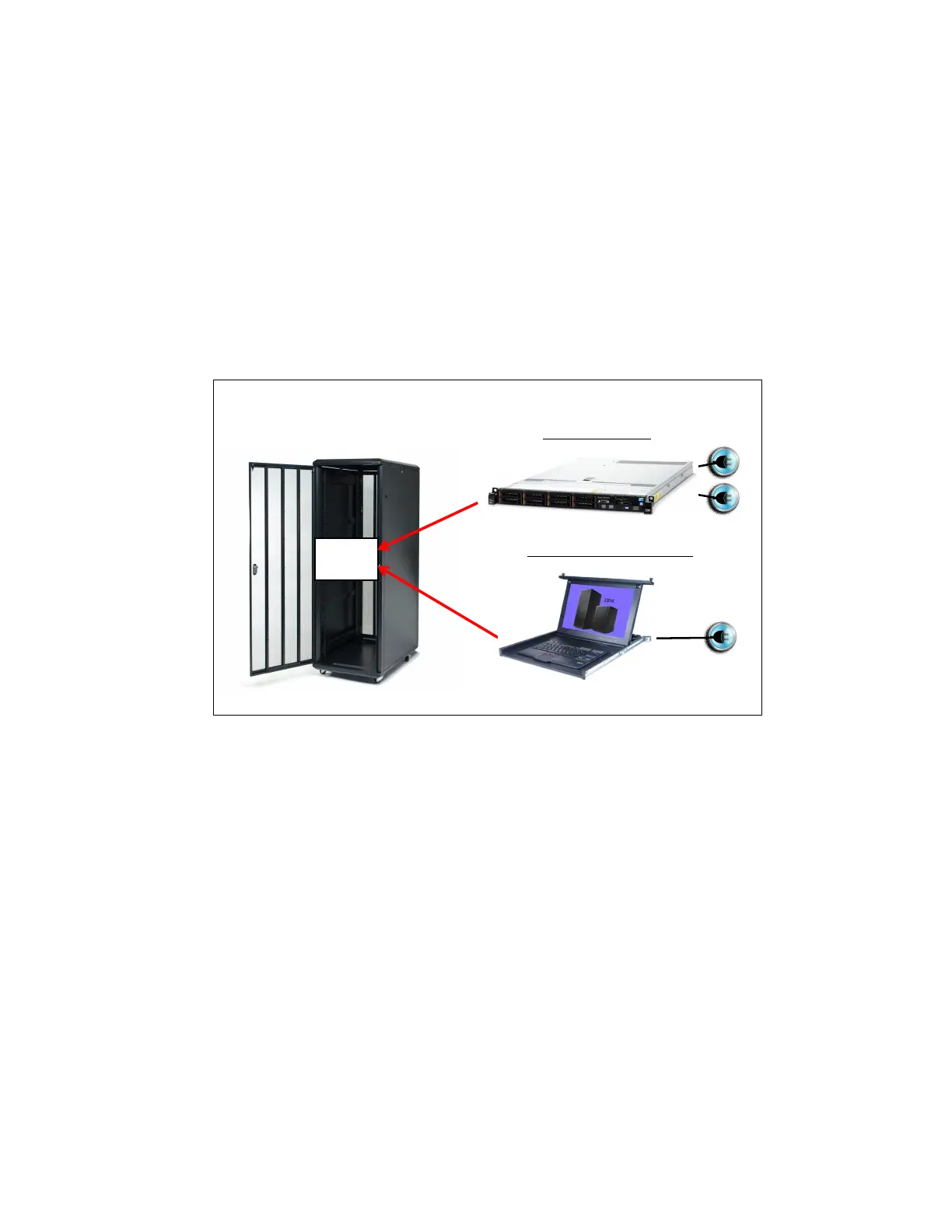

Figure 11-3 Rack-mounted HMC

HMC System Unit:

1U IBM server

HMC Display and Keyboard:

IBM 1U 18.5-inch standard console

Install

between

21U & 26U

Customer supplied rack
