484 IBM z13s Technical Guide

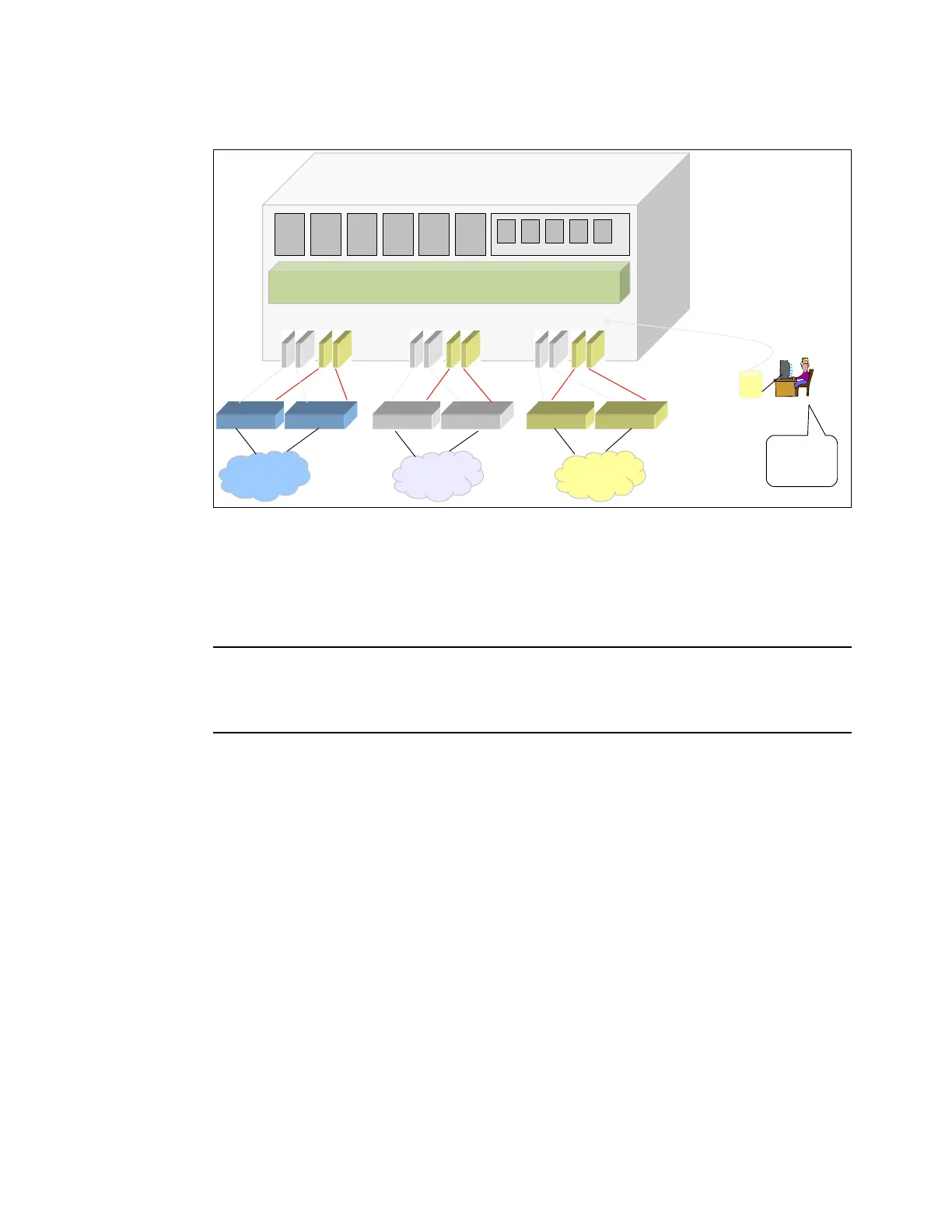

Figure D-7 shows the three physically separate networks defined.

Figure D-7 Physical network ID example

Sample IOCP FUNCTION statement

Example D-1 shows one sample IOCP FUNCTION configuration to define an RoCE Express

adapter shared between LPARs.

Example D-1 IOCP FUNCTION statements

FUNCTION FID=05,PCHID=100,PART=((LP08),(LP09)),VF=1,TYPE=ROCE,PNETID=(PNETA,PNETB)

FUNCTION FID=06,PCHID=12C,PART=((LP08),(LP09)),VF=1,TYPE=ROCE,PNETID=(PNETA,PNETB)

FUNCTION FID=07,PCHID=100,PART=((LP12),(LP06)),VF=2,TYPE=ROCE,PNETID=(PNETA,PNETB)

FUNCTION FID=08,PCHID=12C,PART=((LP12),(LP06)),VF=2,TYPE=ROCE,PNETID=(PNETA,PNETB)

This example has these characteristics:

򐂰 PNETID array identifies the network that the ports are associated with. Thus, all FIDs on a

RoCE adapter that are associated with the same PCHID must have the same PNETID for

each port.

򐂰 10GbE RoCE Express Functions for LPAR 08 are reconfigurable to LP 09 with access to

two networks.

򐂰 10GbE RoCE Express Functions for LPAR 12 are reconfigurable to LP 06 with access to

two networks.

򐂰 Physical RoCE Express adapters on PCHID 100 and 12C are shared between LPARs 08

and 12.

D.2.8 Software exploitation of SMC-R

SMC-R can be implemented on the RoCE and can communicate memory to memory, thus

avoiding the CPU resources of TCP/IP by reducing network latency and improving wall clock

time. It focuses on “time to value” and widespread performance benefits for all TCP

socket-based middleware.

Network BNetwork A Network C

CPC

PNet A PNet B PNet C

IODF HCD

PNet IDs in HCD

Switch A Switch A Switch ASwitch B Switch B Switch B

PCHID

PNet ID

z/VM

Logical Partitions Guest Virtual Machines

PR/SM

Operating Systems dynamically learn PNet ID (I/O configuration)

then group adapters together based on matching PNet IDs

OSA

RoCE
