Chapter 11. Hardware Management Console and Support Elements 395

It is no longer possible to do the primary SE backup to a UFD of a z13s or zBX Model 004 SE.

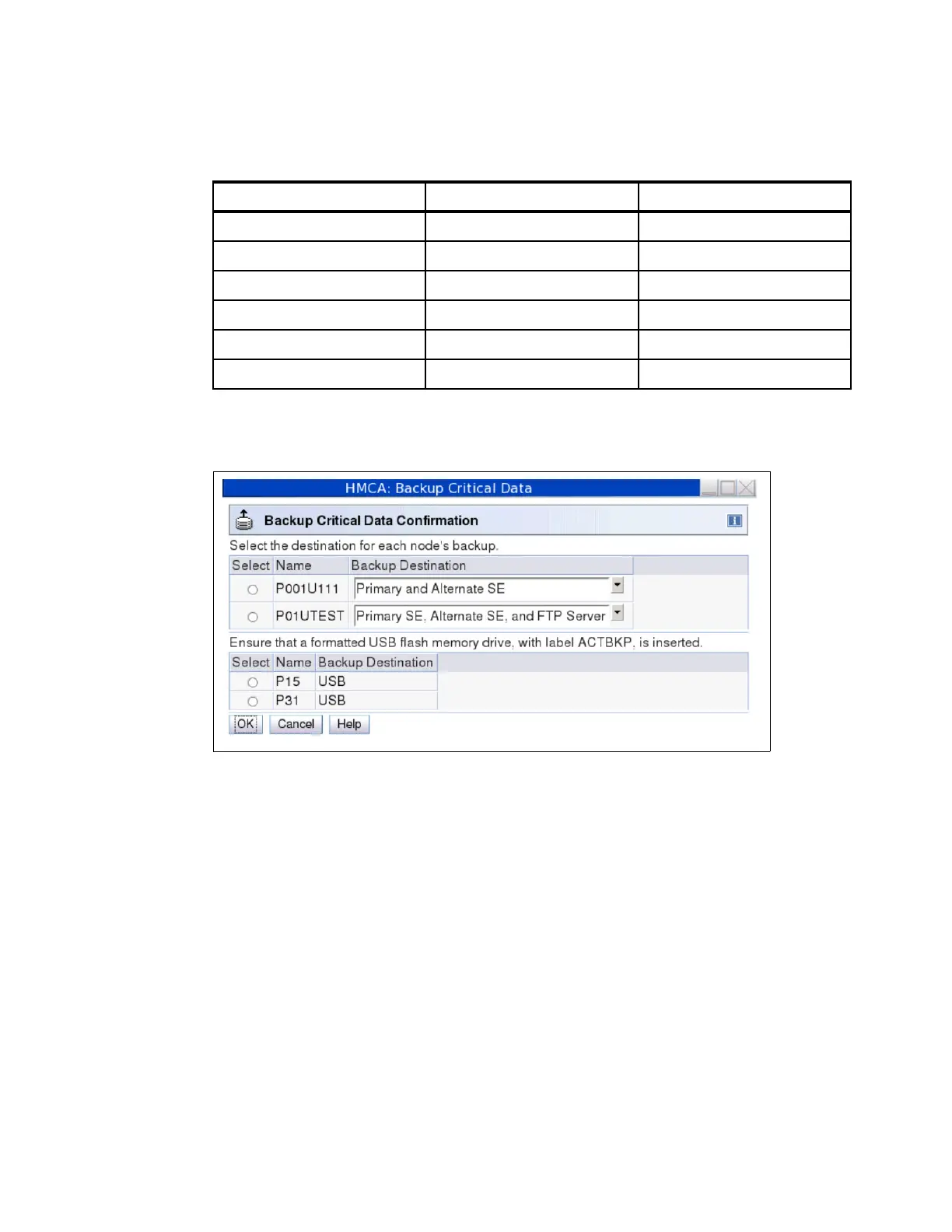

Table 11-1 shows the SE Backup options for external media.

Table 11-1 SE Backup options

Figure 11-7 shows examples of the different destination options of the SE Backup Critical

Data for different CPC machine types.

Figure 11-7 Backup Critical Data destinations of SEs

For more information, see the HMC and SE (Version 2.13.1) console help system or go to the

IBM Knowledge Center at the following link:

http://www.ibm.com/support/knowledgecenter

After you get to the IBM Knowledge Center, click z Systems, and then click z13s.

System Type UFD Media FTP Server

z13 / z13s No Yes

zBX 004 No Yes

zEC12 / zBC12 Yes No

z196 / z114 Yes No

z10EC / z10BC Yes No

z9EC / /z9BC Yes No

(of SEs)

(z13 or zBX Model 004)

(zEC12)

(z9 EC)

(z13 or zBX Model 004)
