412 IBM z13s Technical Guide

Monitor task group

The Monitor task group on the HMC and SE includes monitoring-related tasks for the z13s

server, as shown in Figure 11-19.

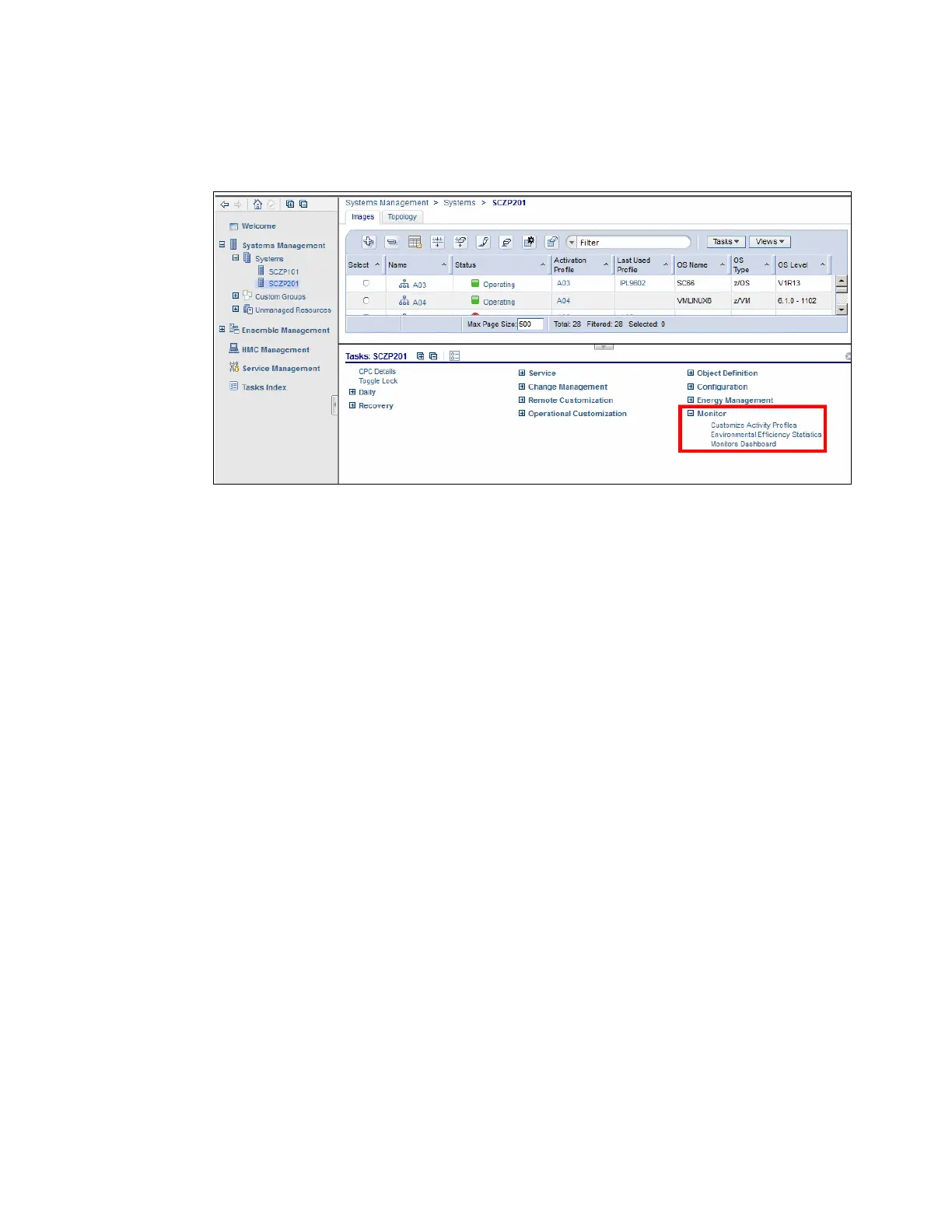

Figure 11-19 HMC Monitor task group

The Monitors Dashboard task

The Monitors Dashboard task supersedes the System Activity Display (SAD). In the z13s

server, the Monitors Dashboard task in the Monitor task group provides a tree-based view of

resources. Multiple graphical views exist for displaying data, including history charts. The

Open Activity task, which is known as SAD, monitors processor and channel usage. It

produces data that includes power monitoring information, power consumption, and the air

input temperature for the server.
