466 IBM z13s Technical Guide

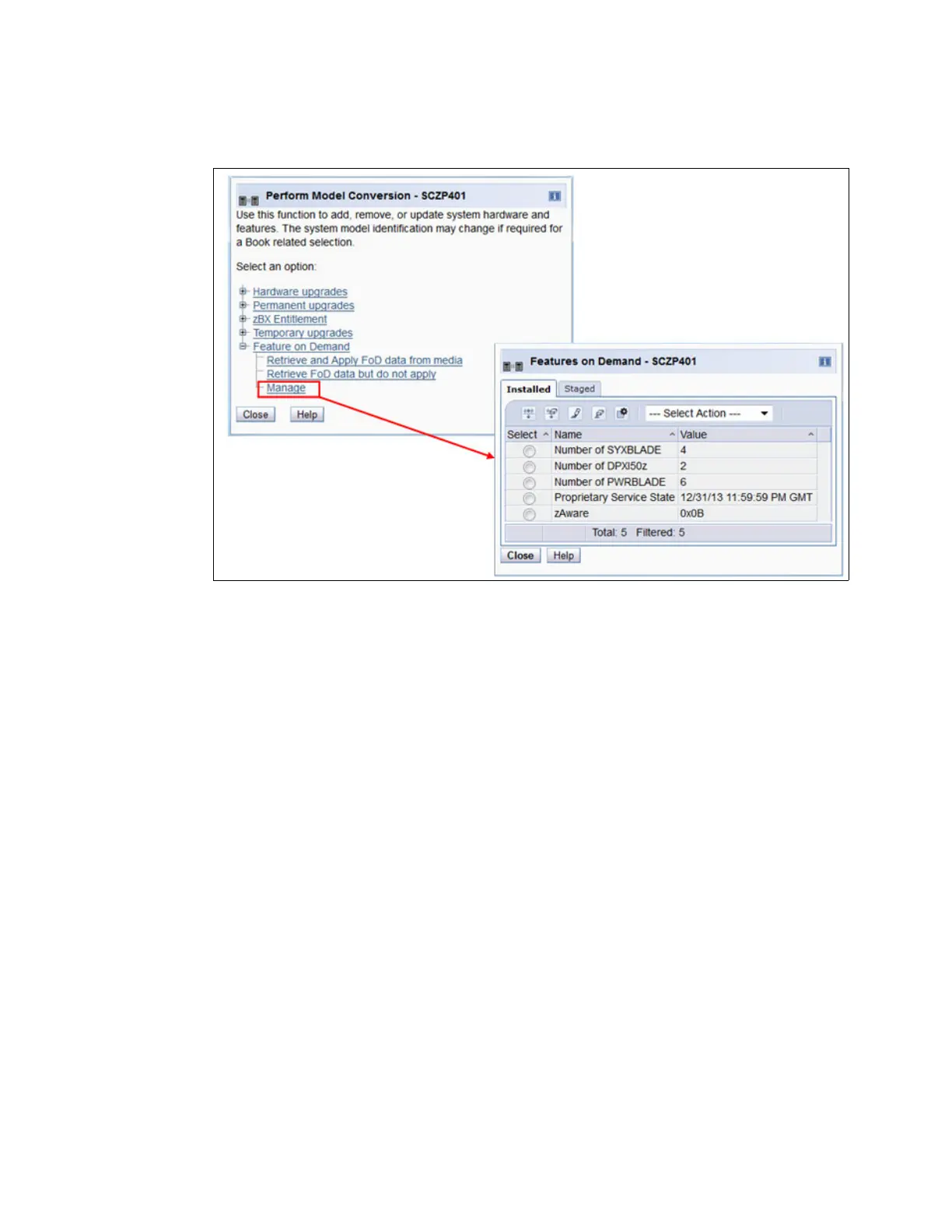

Figure B-8 shows the window for IBM zAware Feature on Demand status and value shown
under the Perform Model Conversion, Feature on Demand Manage function.
Figure B-8 Feature on Demand window for IBM zAware feature
Only one FoD LICCC record can be installed or staged at any time in the system. Its contents
can be viewed under the Manage window as shown in Figure B-8. A staged record can be
removed without installing it. A FoD record can be installed only as a complete installation. No
selective feature or partial record installation is installed, and the features that are installed
will be merged with the CPC LICCC after activation.
A FoD record can be installed only once. If it is removed, a new FoD record is needed to
install it again. A remove action cannot be undone.
The IBM zAware host system feature code (FC 0011) must be ordered for the z13s, z13,
zEC12, or zBC12 server that hosts the IBM zAware partition.
You do not need to order IBM zAware connections for client systems. The number of IBM
zAware connections to be ordered can be calculated by completing the following steps:
1. Determine which systems have z/OS images to be monitored by IBM zAware, including
the z13s, z13, zEC12, or zBC12 server where the IBM zAware LPAR resides.
2. Count the number of CPs on the systems that were identified in the previous step. Include
banked CPs (HWM), and round up to the nearest factor of 10 (z13s or z13).
Example: z13s 3 CPs + z13 20 CPs + 5 IFLs + zEC12 16 CPs = 44
44 is rounded up to nearest factor of 10 = 50
A disaster recovery option (IBM zAware DR CP packs) is also available and indicates that
IBM zAware is installed on a DR z13s, z13, zEC12, or zBC12 server. This feature is available
at no additional fee, but is exclusive to the IBM zAware connection.
For example, FC 0102 represents the quantity of DR CPs. FC 0101 represents the quantity of
CPs associated with servers that are either the IBM zAware host system or the IBM zAware
