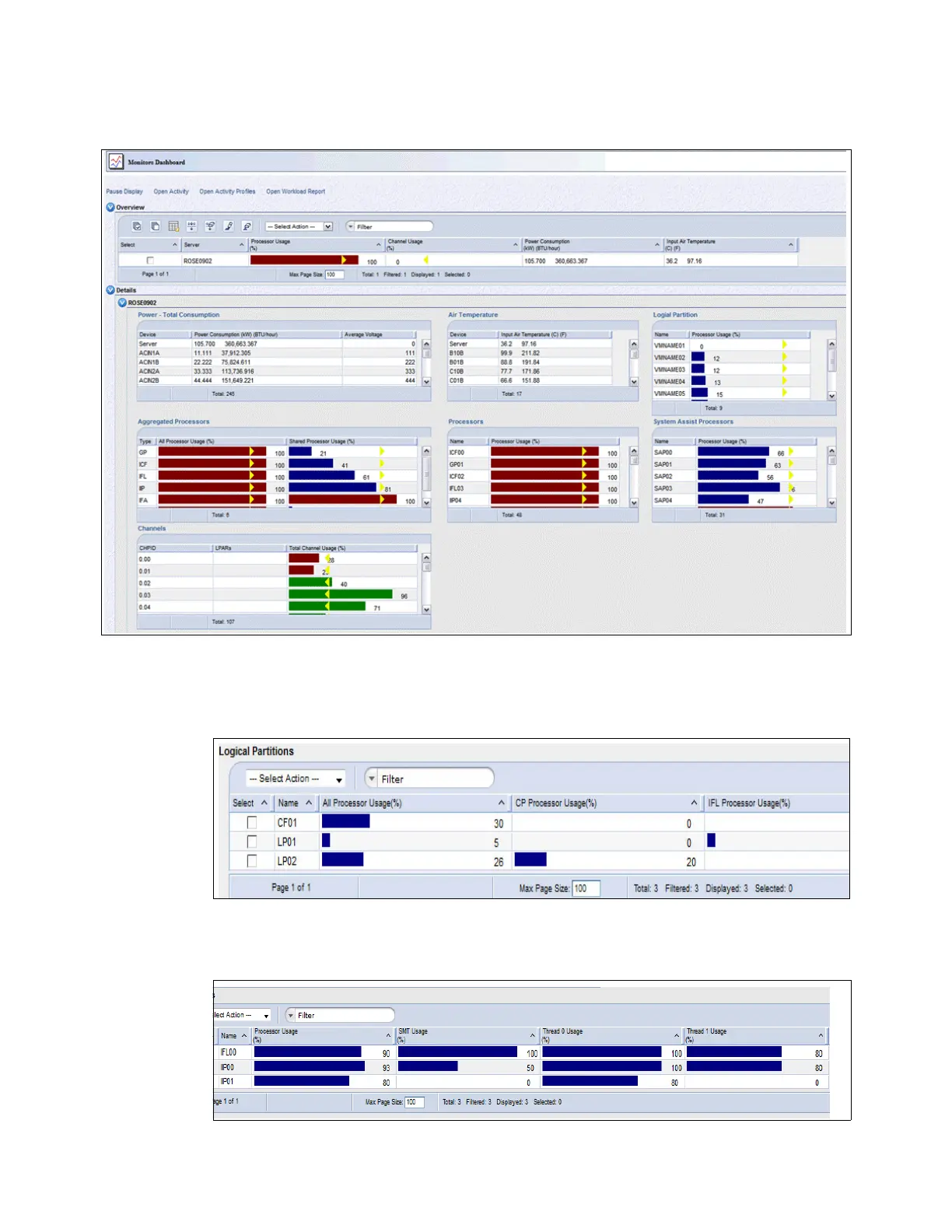

Figure 11-20 shows an example of the Monitors Dashboard task.

Figure 11-20 Monitors Dashboard task

Starting with Driver 27, you can display the activity for an LPAR by processor type, as shown

in Figure 11-21.

Figure 11-21 Display the activity for an LPAR by processor type

The Monitors Dashboard is enhanced to show SMT usage, as shown in Figure 11-22.

Figure 11-22 Display the SMT usage
