Installing the Label Applicator 4-21
ICE Vulcan Service Manual
23 If the unit is vertical, replace the label supply disc and secure it with
the label supply mandrel lock by turning the lock to the locked position
as indicated on the mandrel lock (see Figure 4-17).
24 Remove a number of labels from the beginning of the roll to support
the label routing. Thread the label web as shown in Figure 4-15 on page
4-17 and Figure 4-16 on page 4-17 (i.e, route the labels around each of
the rollers in turn as shown on the webbing diagram).
Ensure that the labels are threaded through the label gap sensor and
around the peel tip.
3 2
1
1. Label Around Peel Tip
2. Label Gap Sensor
3. Label

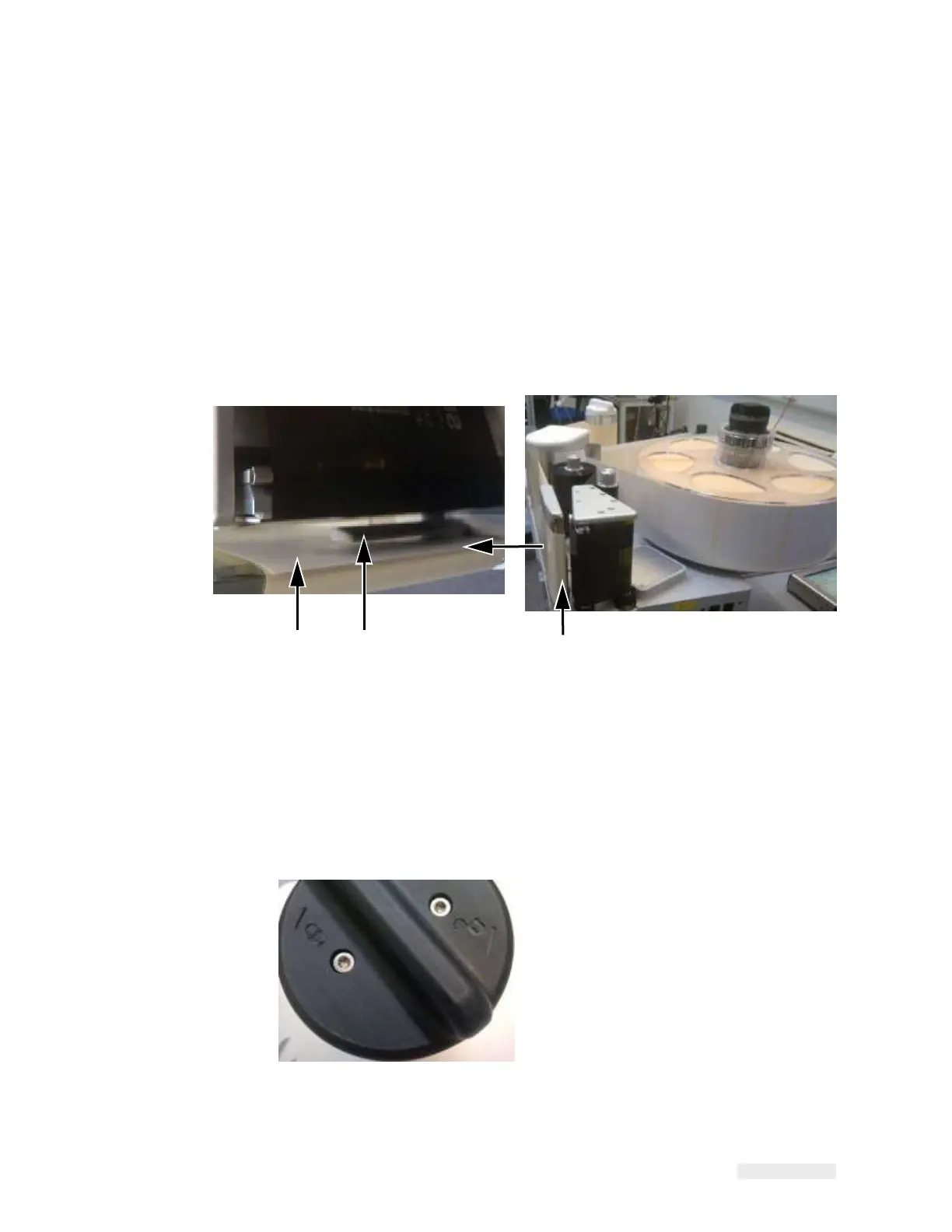

Figure 4-19: Label Around Peel Tip
25 Unlock the waste mandrel by rotating it in the direction indicated on
the mandrel lock. (see Figure 4-20).
Note: Left Hand unit shown
Figure 4-20: Waste Mandrel Lock
