Icom ID-51A Advanced Instructions

3
PANEL DESCRIPTION
3-7

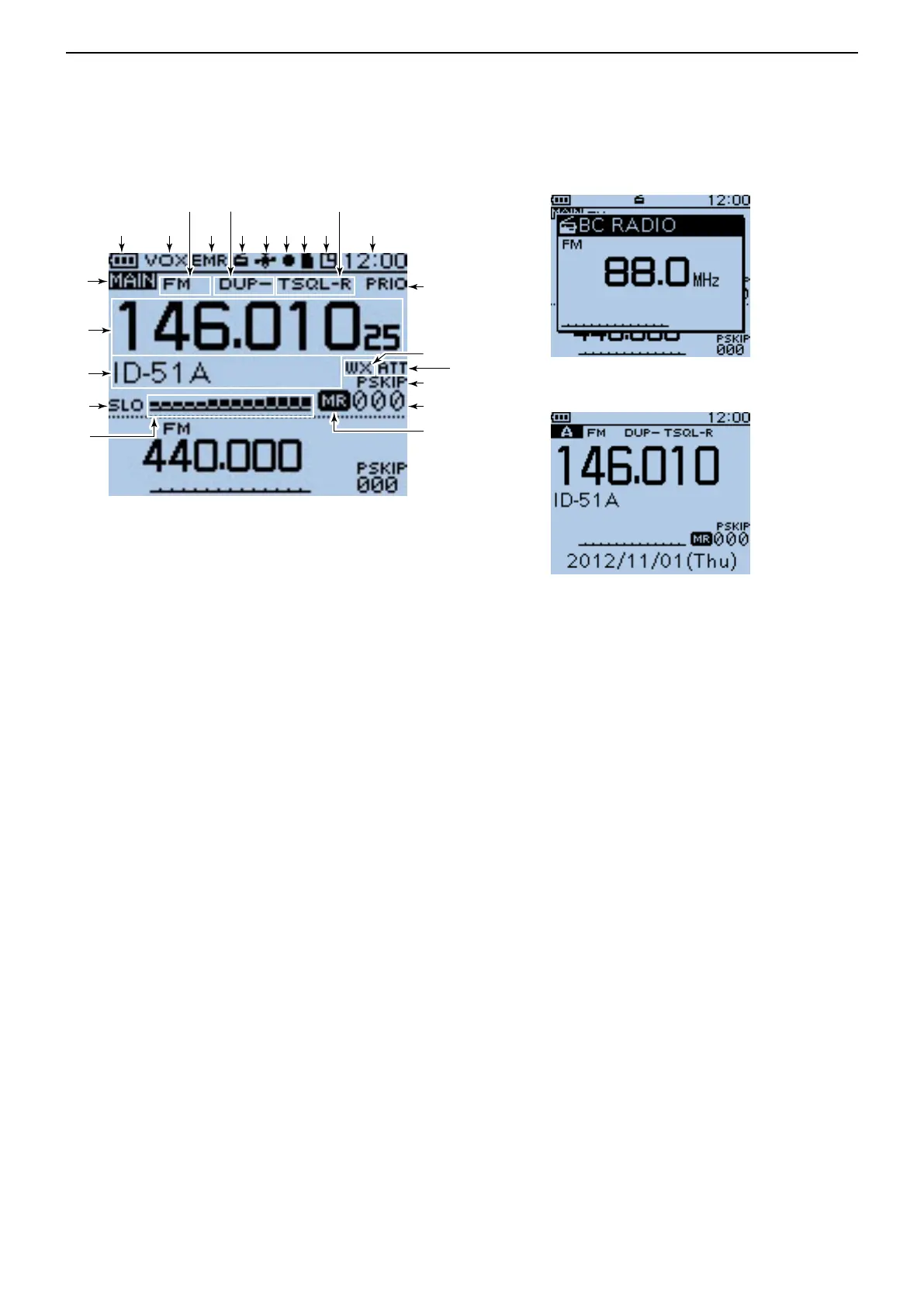

Function display (Continued) ■
Dual band display
Single band display
BC Radio setting pop-up
window (Tuning mode)
!9 S/RF METER
Shows the relative signal strength of the receive ➥
signal. (p. 5-9)
Shows the output power level of the transmit signal. ➥
(p. 5-10)
@0 POWER ICONS (p. 5-10)
“ SLO” appears when S-low power is selected. ➥
“ LO1” appears when low 1 power is selected. ➥
“ LO2” appears when low 2 power is selected. ➥
“ MID” appears when mid power is selected. ➥
No icon appears when high power is selected. ➥
@1 MEMORY NAME DISPLAY (p. 12-12)
While in the Memory mode, the programmed mem-
ory or memory bank name is displayed.
@2 FREQUENCY READOUT
Displays a variety of information, such as the operat-
ing frequency, menu contents and so on.
• The decimal point blinks during a scan.
@3 MAIN BAND ICON (p. 5-3)
Shows the the selected band (A or B) is the Main
band.
q
w r y u io !0 !2
!3
!5
!6
!7
!8
!9
@0
!1
te
@1
@2
@3
!4
